Запчасти Case IH 40 (75.200.04) - ENDMARKER BI-FOLD AND HUB ASSEMBLY (75) - SOIL PREPARATION

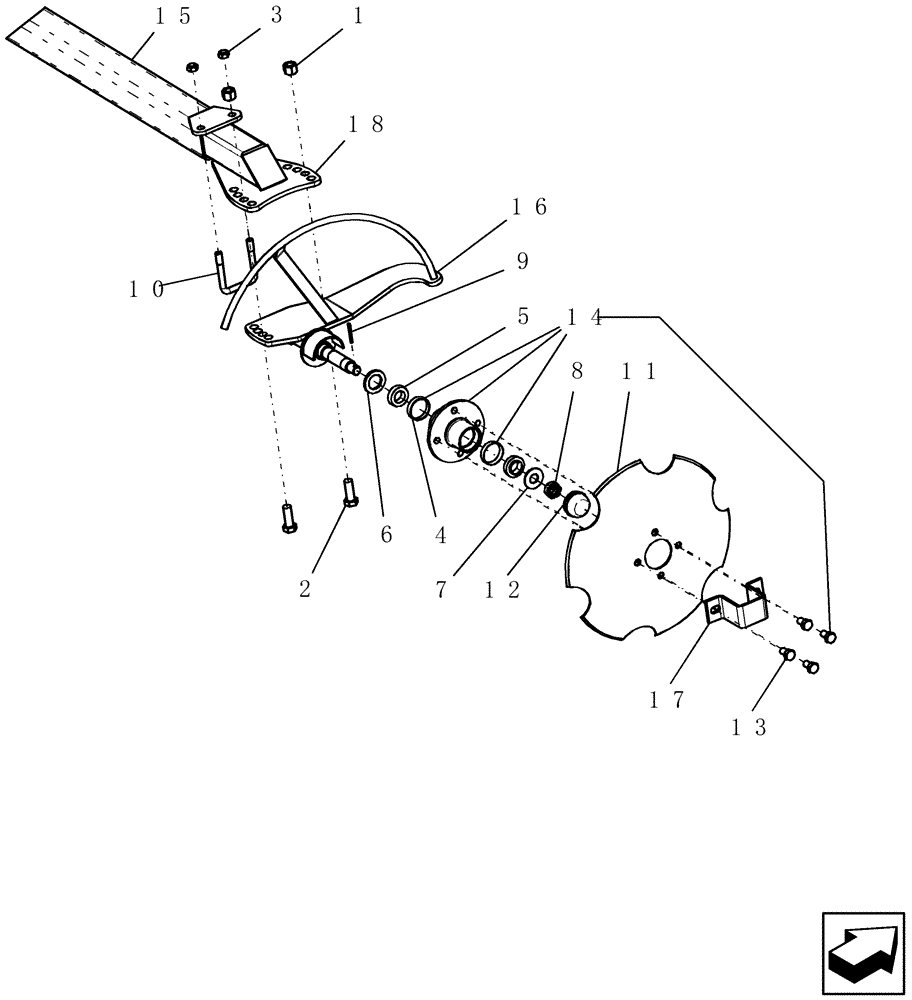

Схема запчастей Case IH 40 - (75.200.04) - ENDMARKER BI-FOLD AND HUB ASSEMBLY (75) - SOIL PREPARATION
18
8
17
11
9
15
10
5
12
3
2
4
6
1
13
14
16
7

Артикул

Название

Примечание

Количество

1

85700693

NUT,5/8" - 11, Gr C

2шт.

2

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

3

86992215

LOCK NUT,1/2"-13, GC

2шт.

4

132709

BEARING CUP,50.29mm OD x 10.67mm W

#L44610

2шт.

5

132710

BEARING CONE,25.4mm ID x 14.73mm W

TM#L44643

2шт.

6

432625A1

OIL SEAL

SE10

1шт.

7

86012106

WASHER

spindle wa10 .75 id

1шт.

8

88886

SLOTTED NUT,3/4"-16

1шт.

9

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

10

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

11

432620A1

DISC

notched 16" concave

1шт.

12

9702386

DUST CAP

hub H211

1шт.

13

1013597

WHEEL BOLT

wheel 1/2" -20 G5

4шт.

14

87412999

HUB

H211 assembly with cups and bolts

1шт.

Includes four 1013597 and two 572564R1

1шт.

15

TM-101

BOOM

swing, endmarker

1шт.

16

87410959

GUARD

disc endmarker RH

1шт.

16

87410958

GUARD

disc endmarker LH

1шт.

17

87410960

GUARD

dust cap, endmarker

1шт.

18

TM-163V2

EXTENSION

arm, endmarker

1шт.

Выбрано товаров: 20
