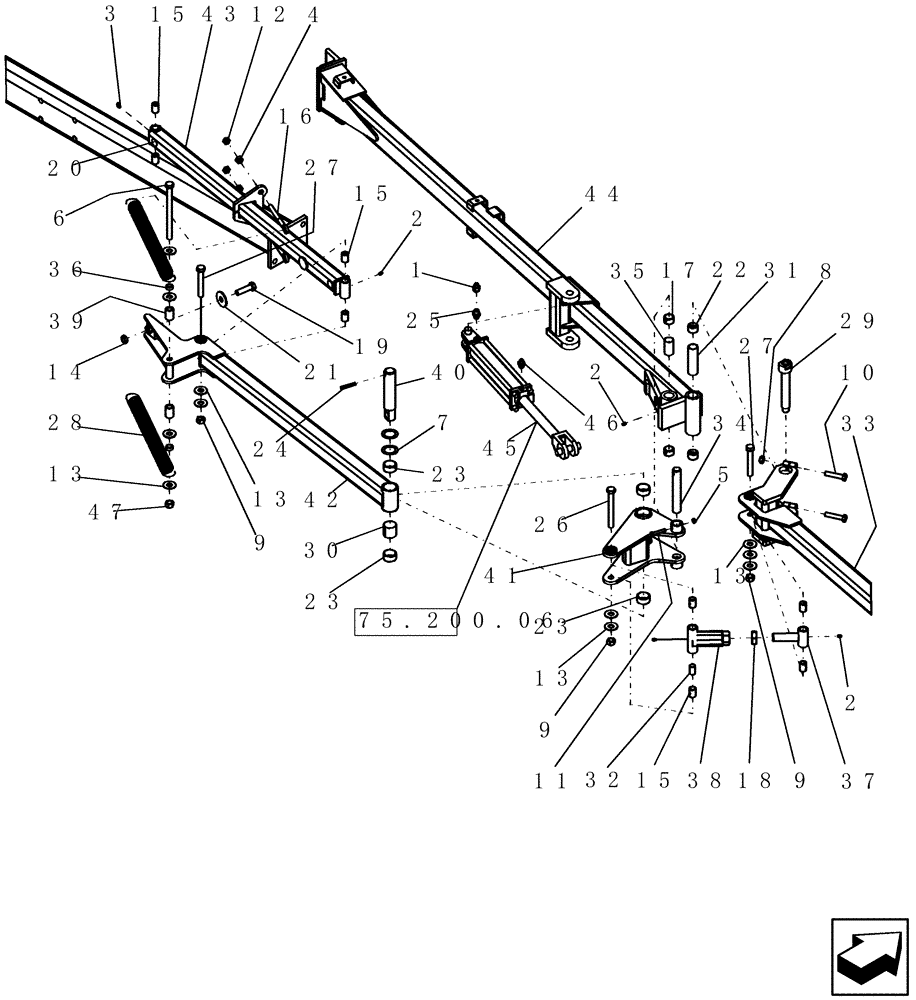

Запчасти Case IH 40 (75.200.03) - ENDMARKER OUTER BI-FOLD (75) - SOIL PREPARATION

1

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

4шт.

3

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

88902

NUT,3/8"-16

1шт.

6

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

1шт.

7

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

3шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

280375

NUT,3/4"-10, GC

3шт.

10

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

11

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

12

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

13

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

11шт.

14

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

15

3929

BUSHING

tension 1" x 3/4" x 1 1/2" long

8шт.

16

4269

EYEBOLT

5/8"-11x 7 3/8"

2шт.

17

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

2шт.

18

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

19

6452

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5, Full Thd

1шт.

20

6566

DECAL

grease 50 hours

4шт.

21

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

1шт.

22

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

23

6637

BUSHING

composite 2" x 1 3/4" x 1"

4шт.

24

87635861

ROLL PIN

3/8" x 2 1/2"

1шт.

25

23387

1/2" mb x 1/2" mj

1шт.

26

NLS

NO LONGER SERVICED

3/4"-10 x 6 3/4"-G5 7/8" thread

1шт.

27

23583

BOLT

3/4"-10 x 5" -G5 5/8" thread

2шт.

28

87505304

SPRING

E 13/32" wire x 2 13/32" od x 22 7/8" long

2шт.

29

87661322

PIN

offset

1шт.

30

DR-872

SPACER

walking beam 2" od x 1 7/8" long

1шт.

31

NN-361

SPACER

1 1/2" od x 3/32" thick x 1/2" long

1шт.

32

SQ-803

SPACER

endmarker arm bushing

1шт.

33

TM-101

BOOM

swing, endmarker

1шт.

34

TM-111

PIVOT PIN

1 1/4" x 8 1/8"

1шт.

35

TM-115

SPACER

tube, pivot link

1шт.

36

87660733

SPACER

breakaway spring

2шт.

37

TM-147

LINK BLOCK

lever male

1шт.

38

TM-151

LINK BLOCK

lever female adjuster

1шт.

39

87660734

SPACER

breakaway spring

2шт.

40

87660736

PIN

44.45 mm x 161 mm

1шт.

41

87628408

LINK

lug endmarker

1шт.

42

TM-209

LINK

outer breakaway

1шт.

43

TM-210

LINK

inner breakaway

1шт.

44

TM-100V2

BOOM

main, endmarker

1шт.

45

425883A1

HYDRAULIC CYLINDER,Double Acting, 304.8mm Stroke

2 1/2" x 12" Monarch 3000 psi

1шт.

46

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

47

230-42112

LOCK NUT,3/4"-10, GA

1шт.
