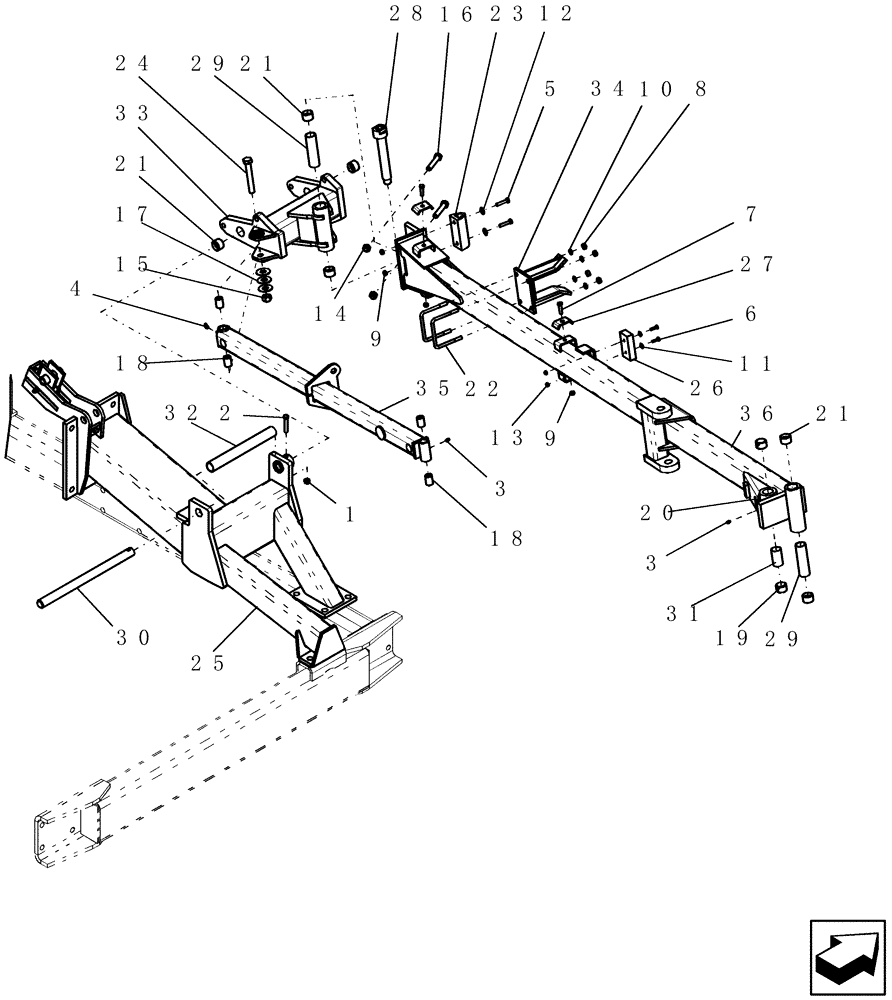

Запчасти Case IH 40 (75.200.02) - ENDMARKER INNER BI-FOLD (75) - SOIL PREPARATION

1

280980

NUT,7/16"-14, GC

1шт.

2

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

2шт.

4

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

5

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

6

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

8

280717

NUT,7/16"-14, G5

4шт.

9

88902

NUT,3/8"-16

4шт.

10

81547

LOCK WASHER,7/16"

4шт.

11

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

13

280129

NUT,1/4"-20

2шт.

14

85700693

NUT,5/8" - 11, Gr C

2шт.

15

280375

NUT,3/4"-10, GC

1шт.

16

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

17

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

18

3929

BUSHING

tension 1" x 3/4" x 1 1/2" long

4шт.

19

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

2шт.

20

6566

DECAL

grease 50 hours

3шт.

21

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

6шт.

22

8598

U-BOLT

us 7/16"-14 4 1/8" w 4 1/4" d G5

2шт.

23

408657A1

BUMPER

pad, rubber, D-shape 2 1/8" w x 1 7/8" h x 5" long

1шт.

24

23583

BOLT

3/4"-10 x 5" -G5 5/8" thread

1шт.

25

425507A1

MOUNTING PARTS

endmarker RH

1шт.

Shown

1шт.

25

425522A1

MOUNTING PARTS

endmarker LH

1шт.

Not Shown

1шт.

26

CA-250

PAD

stop, bifold endmarker

1шт.

27

CC-105

HOSE CLAMP

for 2 hoses

2шт.

28

87661322

PIN

offset

1шт.

29

NN-361

SPACER

1 1/2" od x 3/32" thick x 1/2" long

2шт.

30

87661321

PIN

31.75 mm x 458 mm

1шт.

31

TM-115

SPACER

tube, pivot link

1шт.

32

TM-132

SPACER

tube, horizontal pivot

1шт.

33

TM-167

BRACKET

main mount knuckle, bifold

1шт.

34

87430037

PLATE

spreader

1шт.

35

TM-210

LINK

inner breakaway

1шт.

36

TM-100V2

BOOM

main, endmarker

1шт.
