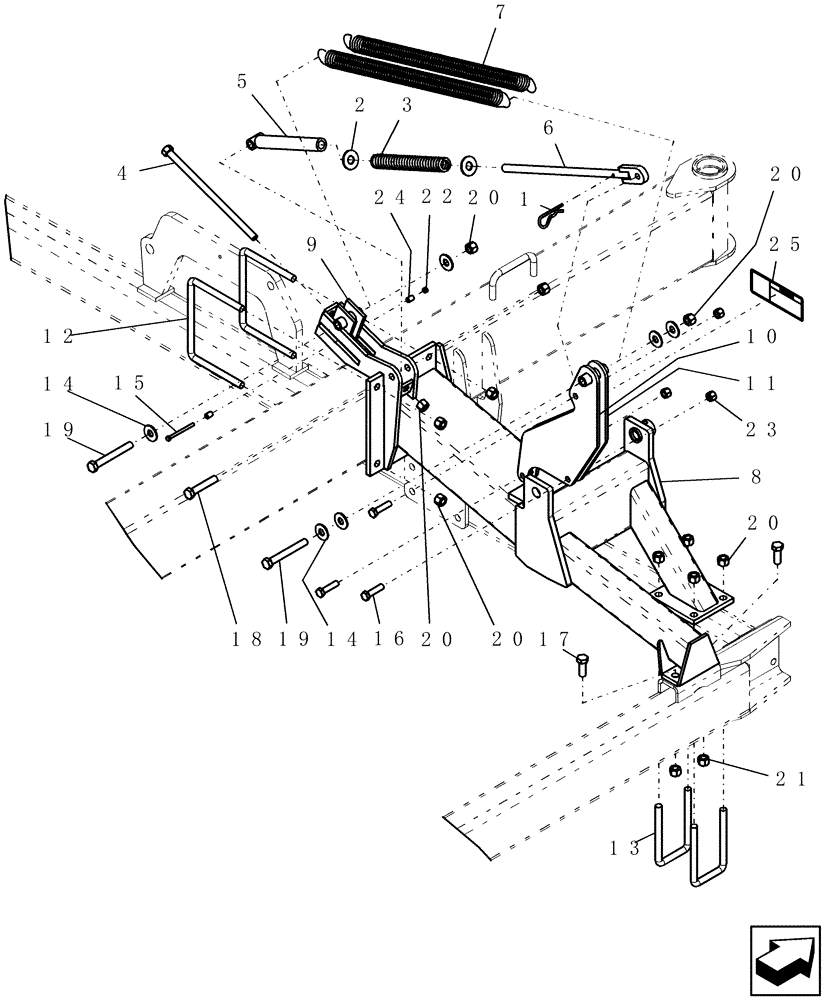

Запчасти Case IH 40 (75.200.01) - ENDMARKER MOUNTS (75) - SOIL PREPARATION

1

3682

HAIR PIN COTTER

.243" x 4"

1шт.

2

495-21094

WASHER,7/8"

2шт.

3

87505302

SPRING

C 5/16" wire x 1 5/8" od x 12 1/2" long

1шт.

4

TM-158

BOLT

3/4"-8 x 15", full thread

1шт.

5

87660739

TUBE

receiver cushion spring

1шт.

6

87660740

ROD

cushion mount

1шт.

7

87505301

TENSION SPRING

.406 x 2 3/8" x 28 1/2"

2шт.

8

425507A1

MOUNTING PARTS

endmarker RH

1шт.

Shown

1шт.

8

425522A1

MOUNTING PARTS

endmarker LH

1шт.

Not Shown

1шт.

9

425521A1

BRACKET

adjuster spring assist

1шт.

10

425523A1

LEVER

LH

1шт.

11

425525A1

LEVER

RH

1шт.

12

425868A1

U-BOLT

us 3/4"-10 10 5/32" w 8" d -G5 2" thread

2шт.

13

425867A1

U-BOLT

us 3/4"-10 4 1/16" w 8" d -G5 2" thread

2шт.

14

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

6шт.

15

88964

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

16

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

3шт.

17

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

2шт.

18

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

19

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

20

280375

NUT,3/4"-10, GC

12шт.

21

280375

NUT,3/4"-10, GC

2шт.

22

281010

LOCK NUT,7/8"-14, GC

1шт.

23

85700693

NUT,5/8" - 11, Gr C

3шт.

24

425584A1

SPACER

tube

2шт.

25

23251

DECAL

endmarker hazard

1шт.
