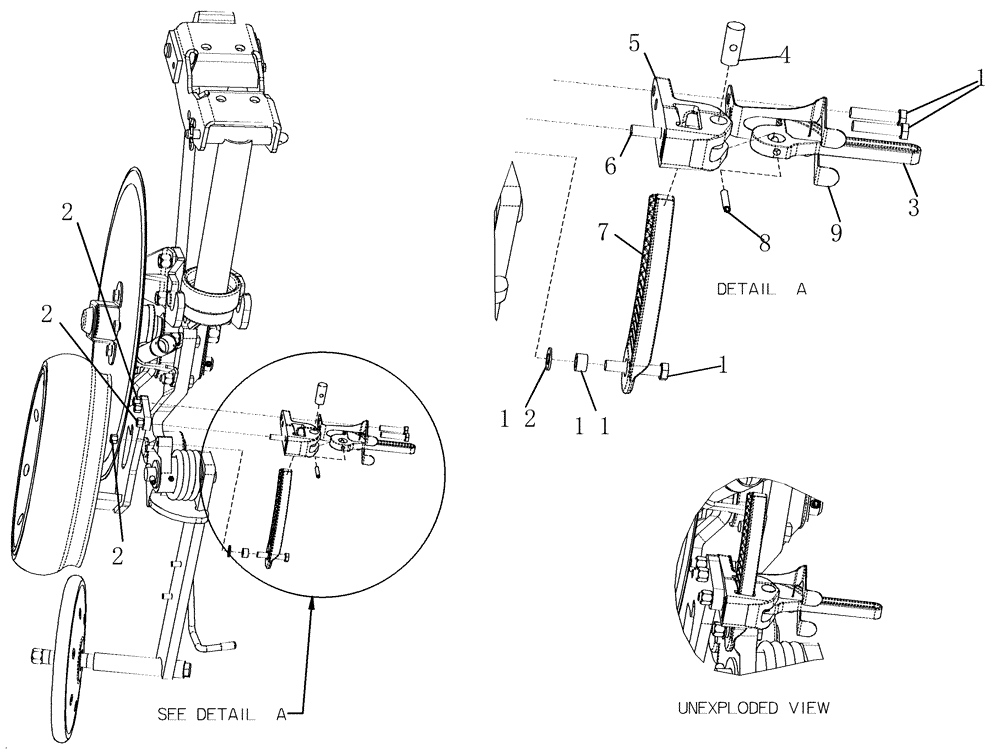

Запчасти Case IH 40 (75.100.12) - DEPTH HANDLE UPDATE (75) - SOIL PREPARATION

0

87627347

KIT

depth gage assy, RH

1шт.

0

87627348

KIT

depth gage assy, LH

1шт.

1

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

2

231-1446

NUT,3/8" - 16, Gr 5

3шт.

3

87516551

HANDLE

cam adjusting

1шт.

4

87516556

PIVOT PIN

cam handle

1шт.

5

87516670

BLOCK

depth adjusting

1шт.

6

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

7

87516659

LINK

depth adjusting, LH

1шт.

7

87517082

LINK

depth adjusting, RH

1шт.

8

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

9

87516552

CATCH

spring clip

1шт.

11

306119A1

SPACER

depth control bracket

1шт.

12

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

100

87611225

INSTRUCTION

depth update

1шт.
