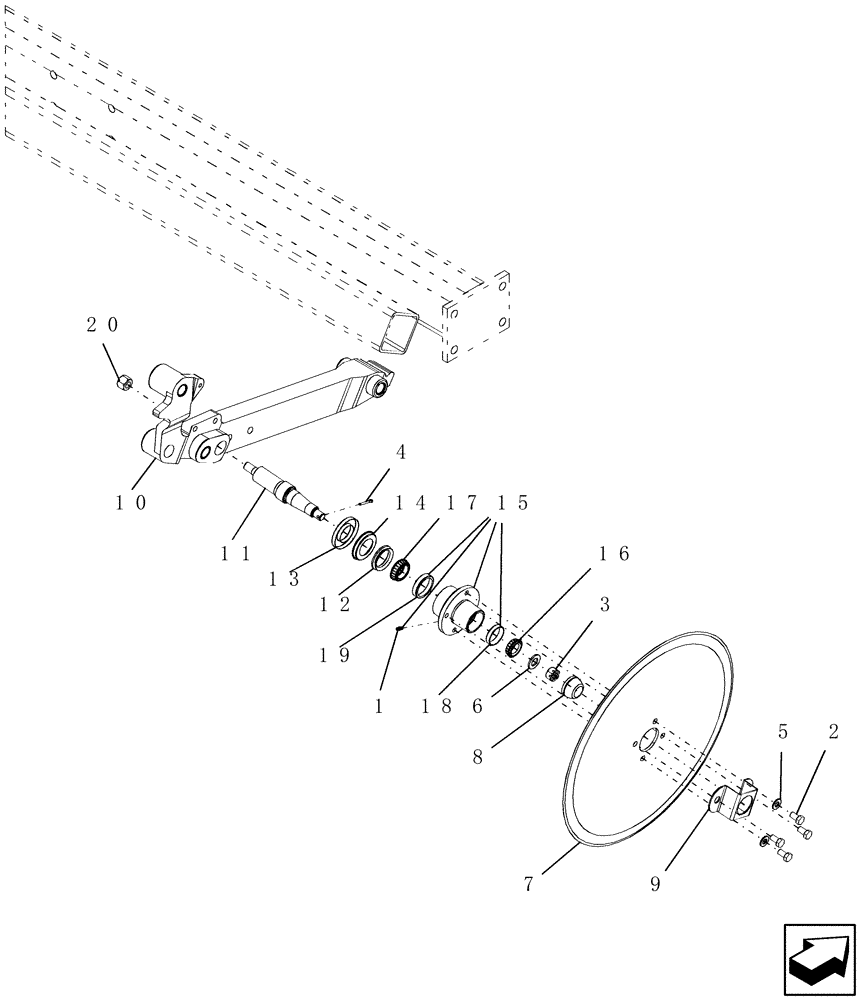

Запчасти Case IH 40 (75.100.09) - SPINDLE, DISC, AND HUB ASSEMBLY (75) - SOIL PREPARATION

1

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

2

280347

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5, Full Thd

4шт.

3

86632554

SLOTTED NUT,3/4"-16, G5

1шт.

4

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

5

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

6

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

7

306001A1

DISC

DISK, 22.5IN STRAIGHT OPENER

1шт.

8

9702386

DUST CAP

hub H211

1шт.

9

306111A1

GUARD

dust cap

1шт.

10

87505370

ARM

mount RH

1шт.

10

87505363

ARM

mount LH

1шт.

11

439655A1

SPINDLE

single disc

1шт.

12

87421648

SEAL

bearing

1шт.

13

439658A1

GUARD

hub grass wrap

1шт.

14

439657A1

INSERT

seal face

1шт.

15

439653A1

HUB

assembly 4 bolt with cups and zerk

1шт.

16

572563R91

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

#L44649

1шт.

17

175507

BEARING CONE,35 mm ID x 16.764 mm

TAPER ROLLER

1шт.

18

132709

BEARING CUP,50.29mm OD x 10.67mm W

#L44610

1шт.

19

536054R1

BEARING CUP,60mm OD x 11.94mm W

TM#L68111

1шт.

20

280375

NUT,3/4"-10, GC

1шт.

100

87452745

GENERAL TOOL

seal enclosure install

1шт.

100

87505411

KIT

packer bushing update

1шт.

Used on 87450259 and 87450260

1шт.

Not Shown

1шт.
