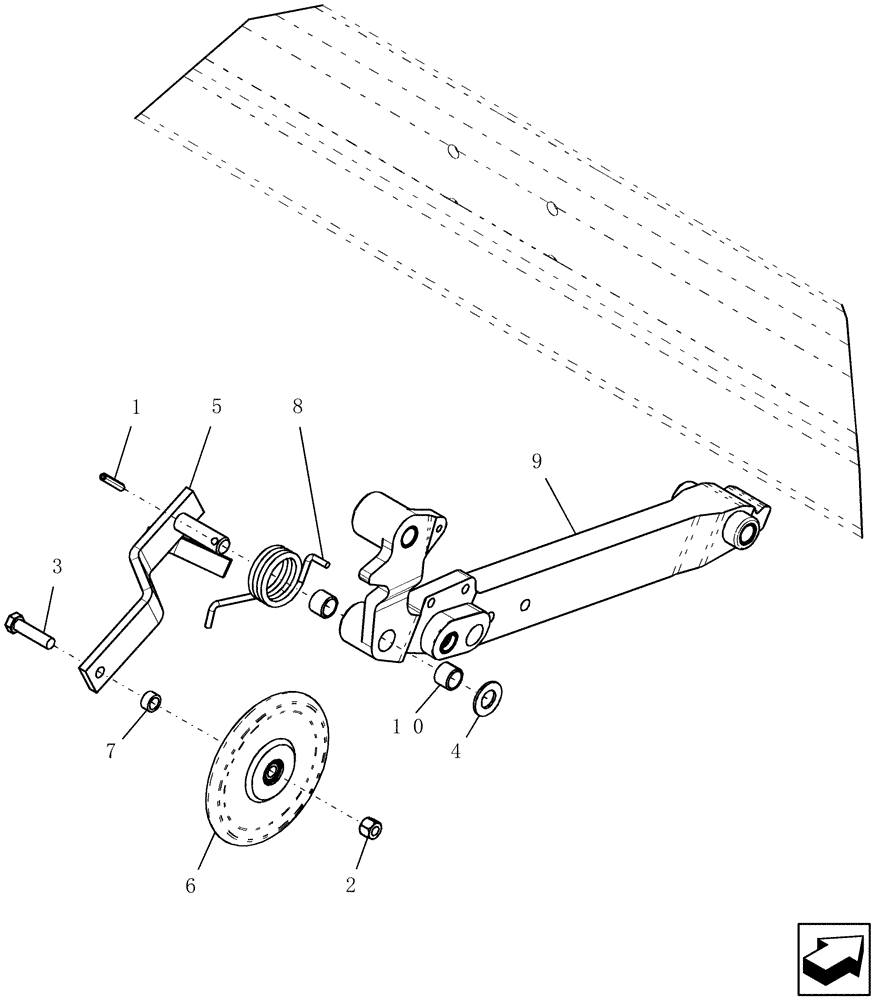

Запчасти Case IH 40 (75.100.08) - SEED LOCK WHEEL ARM ASSEMBLY (75) - SOIL PREPARATION

1

438-22432

LOCK PIN,9.53mm OD x 50.8mm L, Coiled

1шт.

2

85700693

NUT,5/8" - 11, Gr C

1шт.

3

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

4

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

5

306241A1

ARM

seed lock RH

1шт.

Shown

1шт.

5

306130A1

ARM

seed lock LH

1шт.

6

306145A1

WHEEL ASSY

poly 9" od

1шт.

7

306146A1

SPACER

11/16" x 1" x 1/2"

1шт.

8

306231A1

SPRING

torsion 5/16" wire x 2 1/2" id RH

1шт.

Shown

1шт.

8

306223A1

SPRING

torsion 5/16" wire x 2 1/2" id LH

1шт.

9

87505370

ARM

mount RH

1шт.

Shown

1шт.

9

87505363

ARM

mount LH

1шт.

10

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

100

87505411

KIT

packer bushing update

1шт.

Used on 87450259 and 87450260

1шт.

Not Shown

1шт.
