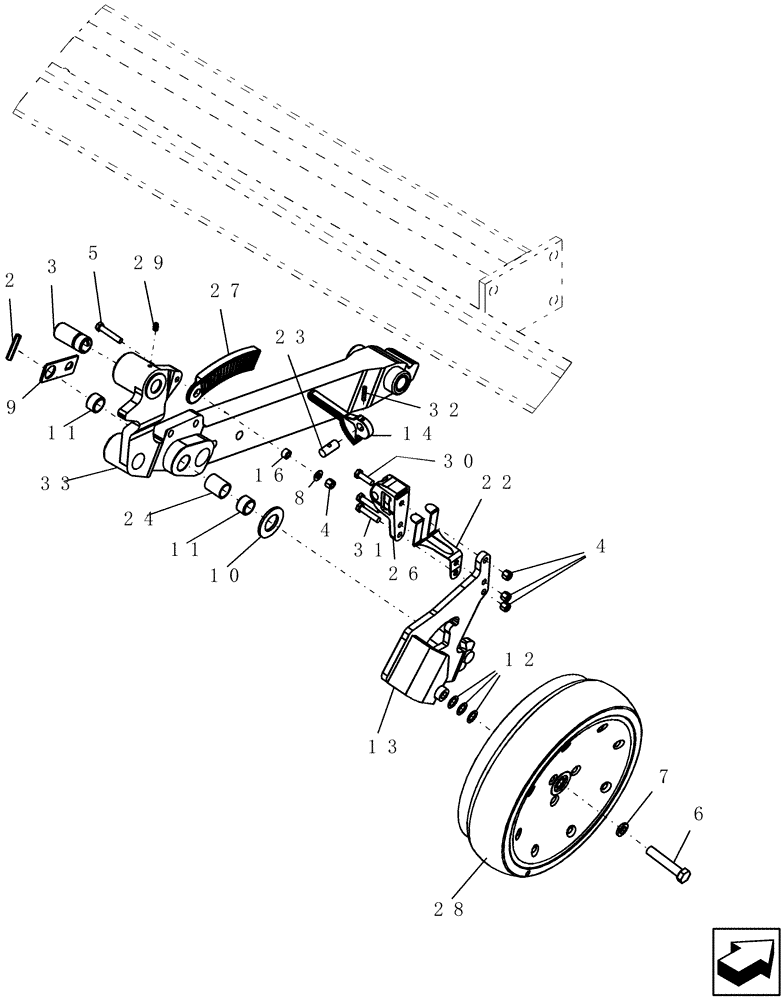

Запчасти Case IH 40 (75.100.05) - GAUGE WHEEL ARM ASSEMBLY (75) - SOIL PREPARATION

3

87504961

BUSHING,25.4mm ID x 32.38mm OD x 70.87mm L

tension 1 1/4" x 1" x 2 3/4" long

1шт.

4

231-1446

NUT,3/8" - 16, Gr 5

4шт.

5

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

9827853

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

1шт.

7

12034871

WASHER

5/8"

1шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

9

439661A1

LOCK

spindle

1шт.

10

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

1шт.

11

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

2шт.

12

1017548

WASHER,16.67mm ID x 25.4mm OD x 1.22mm Thk

5/8" ID x 1" OD

3шт.

13

87440752

ARM

gauge wheel RH

1шт.

14

87516551

HANDLE

cam adjusting

1шт.

16

306119A1

SPACER

depth control bracket

1шт.

22

87516552

CATCH

spring clip

1шт.

23

87516556

PIVOT PIN

cam handle

1шт.

24

351187A1

SPACER

plastic 1 2/8" od x 1 1/8" od x 1 1/64" id x 1 1/2" long

1шт.

26

87516670

BLOCK

depth adjusting

1шт.

27

87517082

LINK

depth adjusting, RH

1шт.

Shown

1шт.

27

87516659

LINK

depth adjusting, LH

1шт.

Not Shown

1шт.

28

87604747

WHEEL ASSY

4.5 X 16 gauge nylon

1шт.

29

87414

LUBE NIPPLE,1/4" - 28

1шт.

30

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

31

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

32

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

33

87505370

ARM

mount RH

1шт.

Shown

1шт.

33

87505363

ARM

mount LH

1шт.

Not Shown

1шт.
