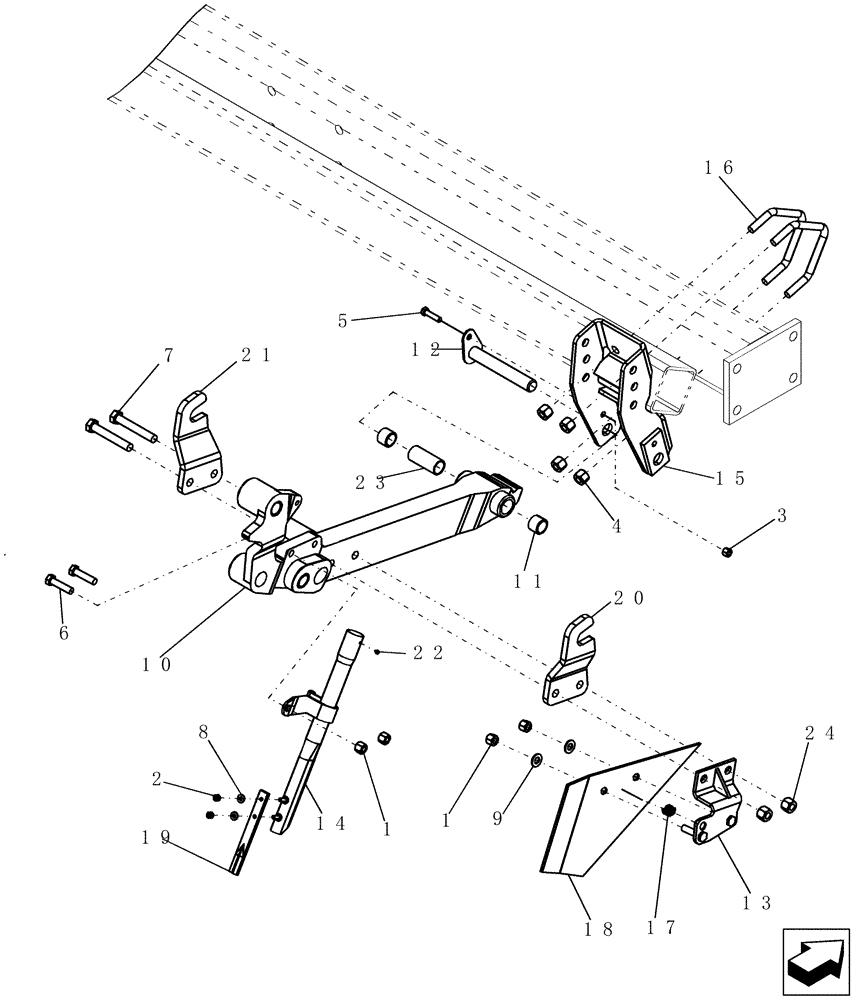

Запчасти Case IH 40 (75.100.03) - SEED TUBE, SCRAPER, ARM, AND MOUNT (75) - SOIL PREPARATION

1

87530607

NUT

1/2"-13, GB

4шт.

2

86625061

NUT,1/4"-20, GB

2шт.

3

231-1446

NUT,3/8" - 16, Gr 5

1шт.

4

85700693

NUT,5/8" - 11, Gr C

4шт.

5

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

7

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

8

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

9

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

10

87450260

ARM

mount RH

1шт.

10

87505370

ARM

mount RH

1шт.

10

87450259

ARM

mount LH

1шт.

10

87505363

ARM

mount LH

1шт.

11

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

4шт.

12

349394A1

PIN

pivot

1шт.

13

87462380

BRACKET

scraper RH

1шт.

13

87462381

BRACKET

scraper LH

1шт.

14

306085A1

TUBE

seed RH

1шт.

14

306084A1

TUBE

seed LH

1шт.

15

328011A1

MOUNTING PARTS

single disc

1шт.

16

306071A1

BOLT

V .625 X 4 UNC GR5 YZD 5.44 WIDE, 1.25 LG THREAD

2шт.

17

306242A1

SPRING

compression 2.49 mm wire x 21.59 mm od

1шт.

18

350348A1

SCRAPER

blade RH

1шт.

18

350347A1

SCRAPER

blade LH

1шт.

19

306122A1

RETAINER,Seed Tab

uhmw tab 3/4" x 7" with holes

1шт.

20

306219A1

BRACKET

spring pivot RH

1шт.

21

306244A1

BRACKET

spring pivot LH

1шт.

22

280-1434

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/4"

1шт.

23

87401407

SPACER

plastic 1 1/4" od x 3/32" w

1шт.

100

87505411

KIT

packer bushing update

1шт.

Used on 87450259 and 87450260

1шт.

Not Shown

1шт.

24

231-42410

LOCK NUT,5/8"-11, GB

2шт.
