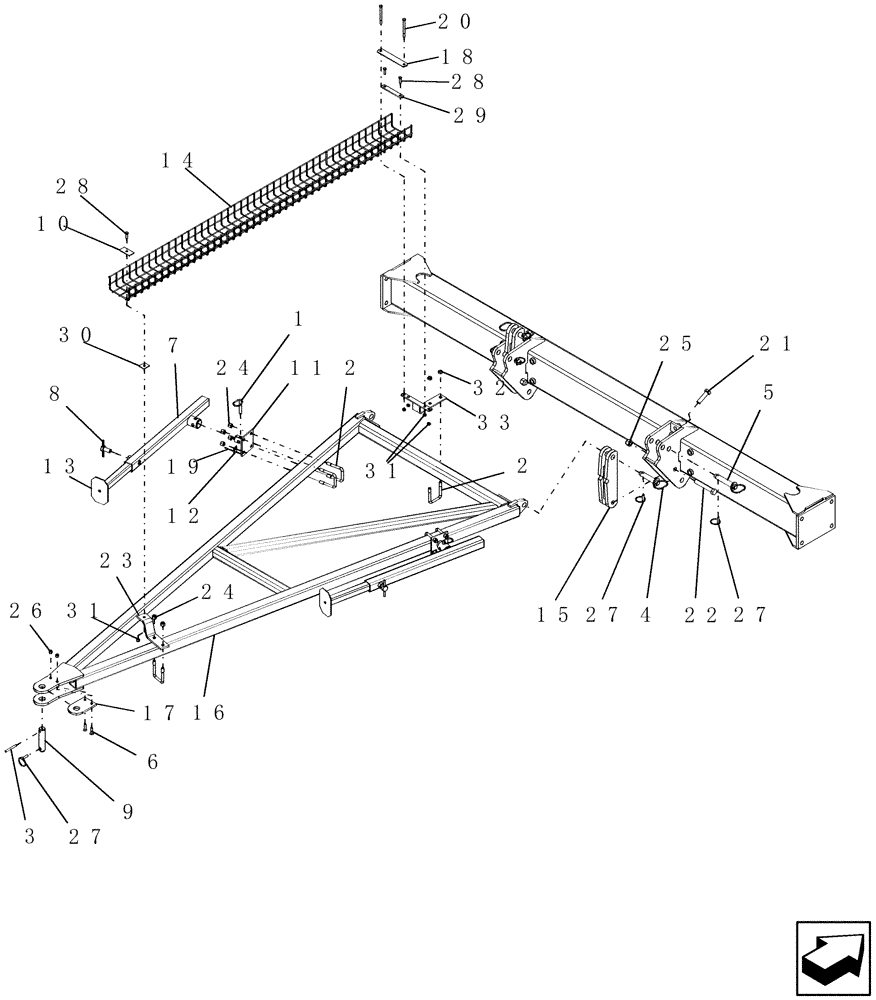

Запчасти Case IH 40 (75.100.01) - TBH FIELD HITCH PACKAGE (75) - SOIL PREPARATION

1

412752A1

PIN

and chain assembly jack mount

2шт.

2

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

6шт.

3

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

1шт.

4

412769A1

HITCH PIN

1" x 3 1/2" usable

2шт.

Includes linchpin

1шт.

5

425885A1

HITCH PIN

1" x 4 1/4"

2шт.

6

9920

SCREW,3/8" - 16 x 1.5, Gr 5

3/8" x 1 1/2" GR5 countersunk

2шт.

7

GE-359

STAND

field hitch - upper

2шт.

8

GE-193A

HANDLE

height adjustment

2шт.

9

GE-293A

HITCH PIN

draw assembly

1шт.

Includes linch pin and roll pin

1шт.

10

87501490

CLAMP

hose tray

1шт.

11

GH-528

MOUNTING PLATE

hitch support

2шт.

12

GH-530

BRACKET

mount, fan shield chain

2шт.

13

GL-726

STAND

lower, field hitch support

2шт.

14

RF-240

TRAY

hose

1шт.

15

439266A1

LINKAGE

hitch pivot

2шт.

16

425145A1

TRAILER HITCH

tow

1шт.

17

9884

PAD

hitch tongue

1шт.

18

87501237

CROSSBAR

mount, top

1шт.

19

80755

COTTER PIN,1/8" OD x 1" L

2шт.

20

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

21

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

2шт.

22

9602203

BOLT,Hex, 3/4" x 5", Gr 8

2шт.

23

425884A1

BRACKET

mount

1шт.

24

87530607

NUT

1/2"-13, GB

12шт.

25

280375

NUT,3/4"-10, GC

2шт.

26

231-1446

NUT,3/8" - 16, Gr 5

4шт.

27

6425

LINCH PIN

7/16" x 1 3/8"

5шт.

28

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

29

87501453

CLAMP

front hose tray

1шт.

30

87501485

SPACER

hose tray

1шт.

31

88902

NUT,3/8"-16

3шт.

32

86992215

LOCK NUT,1/2"-13, GC

2шт.

33

87501455

BRACKET

mount, hose tray

1шт.
