Запчасти Case IH 40 (55.404.02) - LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS

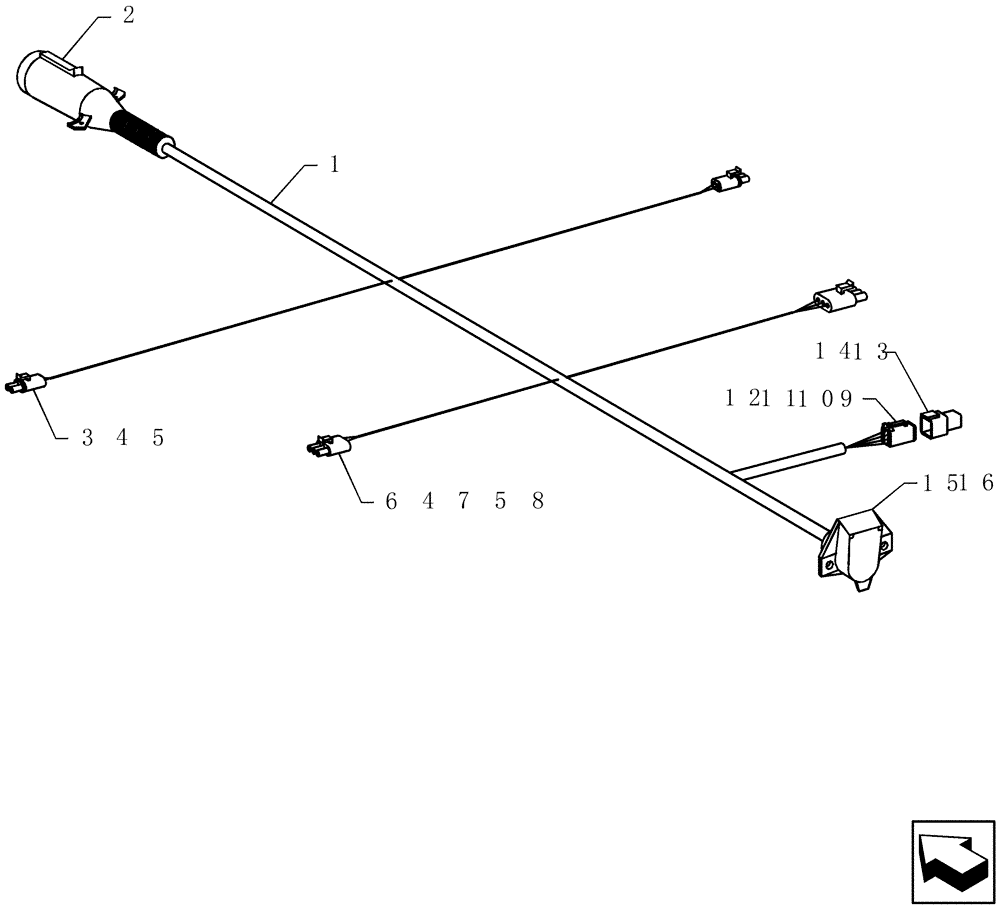

Схема запчастей Case IH 40 - (55.404.02) - LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS
5
4
4
9
1
16
7
13
12
14
10
2
15
11
3
6
8
5

Артикул

Название

Примечание

Количество

1

412917A1

HARNESS

seedtool lighting 31'

1шт.

2

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

Includes 481849C1

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

4

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

6шт.

5

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

6шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

2шт.

7

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

4шт.

8

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

9

51200043

ELEC CONNECTOR,6 Pin

Plastic 6c Plug

1шт.

10

51200044

STOP LOCK

6c plug connector

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

1шт.

12

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

5шт.

13

425282A1

ELEC CONNECTOR,6 Pin

plastic 6c receptacle

1шт.

14

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

6шт.

15

412766A1

MULTIPOLE CONNECTOR

metal 7c receptacle

1шт.

16

481849C1

PROTECTIVE COVER

rubber boot

1шт.

Выбрано товаров: 17
