Запчасти Case IH 40 (55.404.01) - TRANSPORT LIGHTS AND SAFETY DECALS (55) - ELECTRICAL SYSTEMS

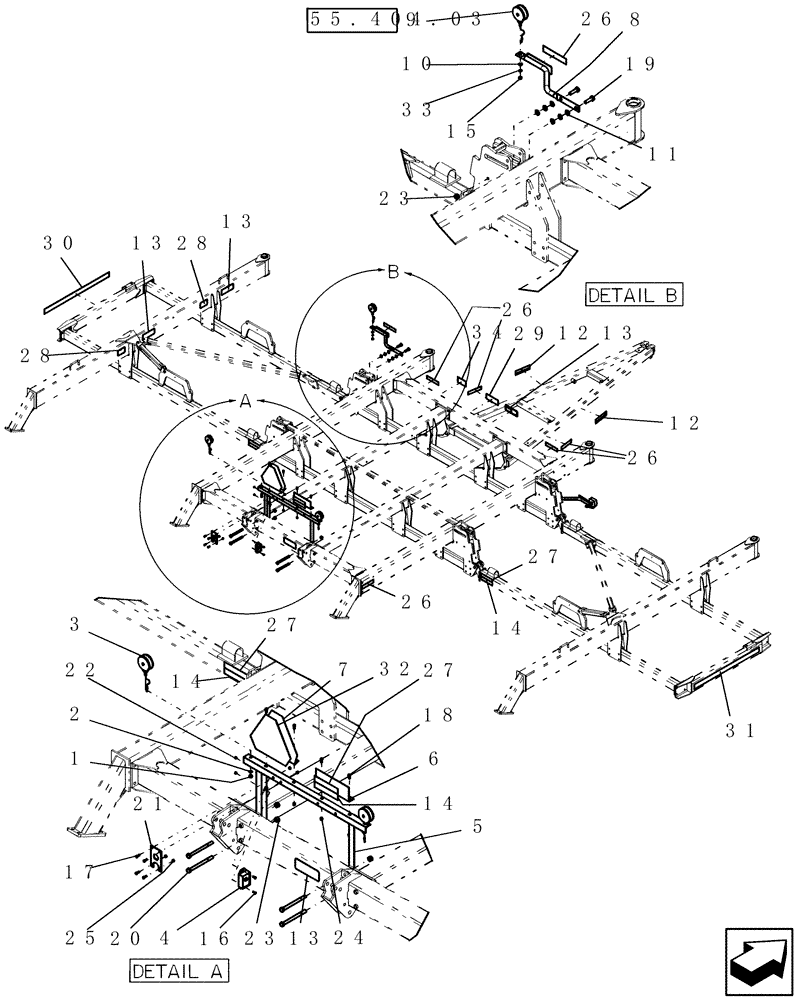

Схема запчастей Case IH 40 - (55.404.01) - TRANSPORT LIGHTS AND SAFETY DECALS (55) - ELECTRICAL SYSTEMS
28
31
4
16
15
21
30
2
9
12
22
13
14
55.404.03
34
25
10
13
13
24
5
29
32
3
23
13
26
28
6
26
33
17
1
18
23
20
14
8
11
26
27
19
12
7
27
26
27
14

Артикул

Название

Примечание

Количество

1

280431

NUT,1/2"-13, G5

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

51200040

LIGHT

assy. stop tail/signal red

2шт.

Includes 6815 and 86537133

1шт.

3

6815

LENS

red

2шт.

3

86537133

BULB,C6, #1157, 12.8V

2шт.

3

84129422

BULB

Double Contact, 1156DC

2шт.

4

86561136

MODULE

implement lighting control

1шт.

5

425589A1

BRACKET

hose and light

1шт.

6

425665A1

PLATE

with reflectors

1шт.

7

425664A1

WARNING SIGN

plate slow moving vehicle

1шт.

8

87442626

BRACKET

light with decal

2шт.

Includes decal 311864A1

1шт.

9

87564157

WARNING LIGHT

assembly amber

2шт.

10

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

11

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

12шт.

12

192848A2

DECAL

Case IH 70 mm logo

2шт.

12

86626471

EMBLEM

Case IH 70 mm logo

2шт.

13

350336A1

DECAL

Danger - opener safety lock

6шт.

14

311865A1

REFLECTOR

fluorescent orange

3шт.

15

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

16

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

17

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

20

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

4шт.

21

425875A1

BRACKET

plug receptacle

1шт.

22

86625061

NUT,1/4"-20, GB

2шт.

23

280375

NUT,3/4"-10, GC

8шт.

24

232-1446

NUT,3/8"-16, GC

4шт.

25

86050277

NUT,5/16"-18, GB

4шт.

26

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

6шт.

27

311863A1

REFLECTOR

Retroreflective Red

3шт.

28

350231A1

DECAL

down pressure chart

2шт.

29

350335A1

DECAL

wing lock-up valve

1шт.

30

87643156

DECAL

Precision Disk 40 LH

1шт.

31

87643157

DECAL

Precision Disk 40 RH

1шт.

32

311858A1

DECAL

SMV Emblem

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

34

312479A1

DECAL

warning pictorial

1шт.

Выбрано товаров: 40
