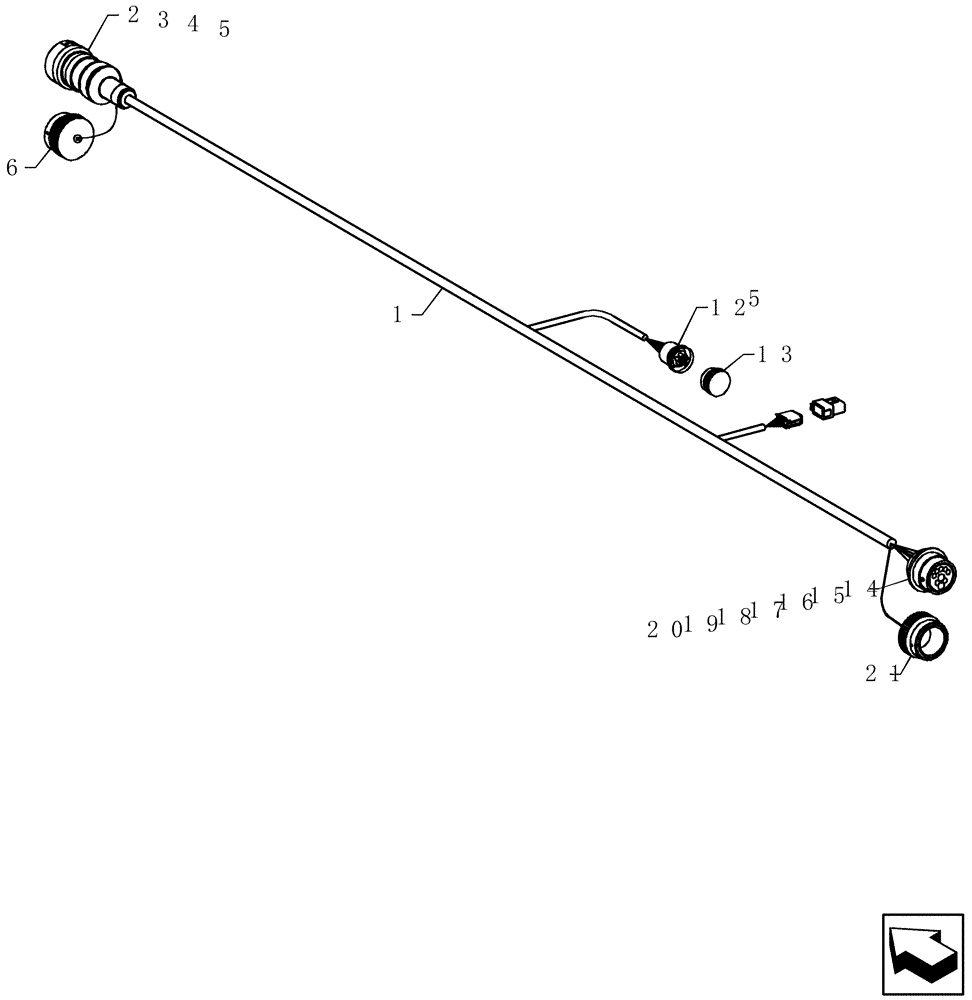

Запчасти Case IH 40 (55.100.01) - SEED TOOL HARNESS (55) - ELECTRICAL SYSTEMS

1

419980A1

HARNESS

seed tool 31'

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

13950

SOCKET

8-10awg

2шт.

4

900302

TERMINAL

12-14awg

2шт.

4

900302

TERMINAL

12-14awg

2шт.

6

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

12

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

13

14045

DUST CAP

6 cond rcp Deutsch

1шт.

14

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

15

51200012

LOCK WASHER

split 1 3/4" id x 3/32" tk

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

10шт.

16

459329C1

NUT

1 11/16"-18 aluminum 3/16" thick

1шт.

17

280384A1

ELEC. TERMINAL PIN

8-10awg

2шт.

18

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

12-14awg

2шт.

19

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

4шт.

20

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

1шт.

21

245041C1

CAP

dust 23 cond plug Deutsch

1шт.
