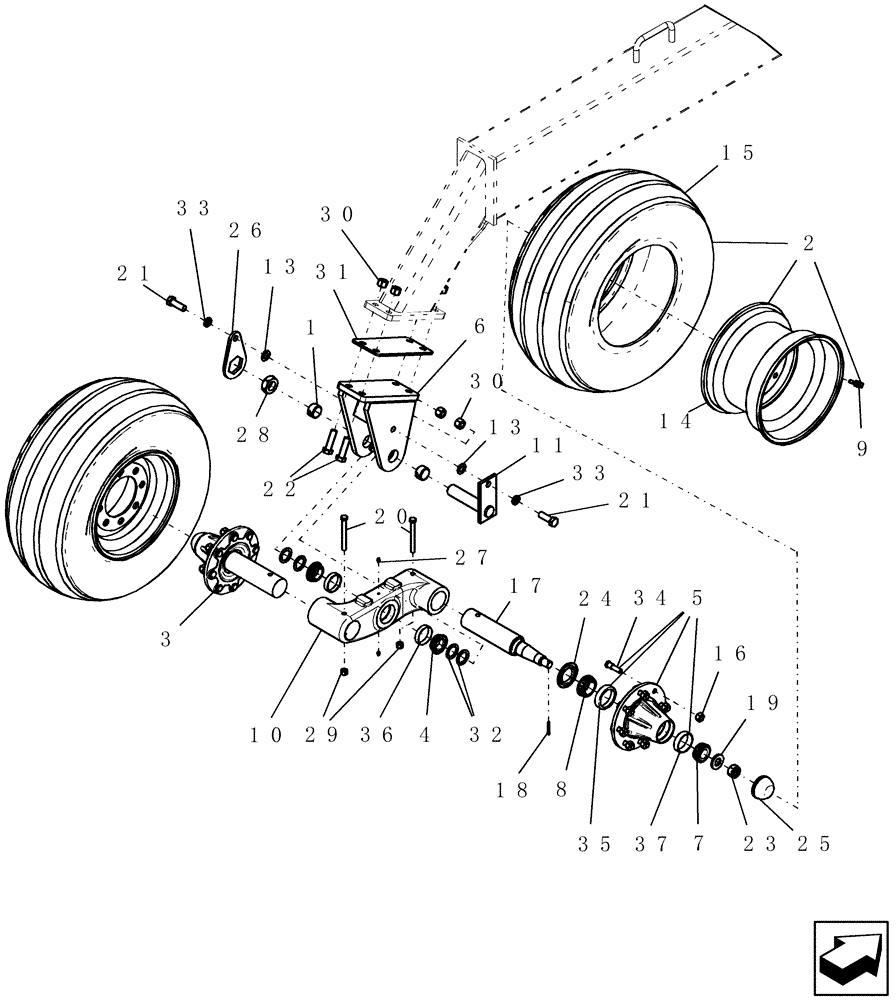

Запчасти Case IH 40 (44.100.04) - BOGIE - WING (44) - WHEELS

1

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

tension 1 3/4" x 1 1/2" x 1"

2шт.

2

1030722

WHEEL ASSY

15x10 8h with 31x13.5 10p hf-1(high floatation tire)

2шт.

Includes wheel, tire and valve stem

1шт.

2

1033093

SEALANT

Tire anti-puncture 1 liter bottle

2шт.

3

425670A1

SPINDLE

bolt-in 5050 lb

2шт.

4

F86364

BEARING CONE

TM#13685 and seal #13600LA

2шт.

5

1020697

HUB

H811-8 assembly with cups and studs

2шт.

6

425859A1

MOUNTING PARTS

rear bogie

1шт.

Includes 425585A1 and 22093

1шт.

6

425585A1

MOUNTING PARTS

rear bogie

1шт.

7

86516471

BEARING CONE,34.92mm ID x 24.61mm W

#25877

2шт.

8

512725

BEARING CONE,45.62mm ID x 25.4mm W

#25590

2шт.

9

1018564

VALVE

tire stem

2шт.

10

87401384

AXLE

walking offset RH

1шт.

Shown

1шт.

Includes grease nipples, bearing cups and bearing cones

1шт.

10

87401382

AXLE

walking offset LH

1шт.

Includes grease nipples, bearing cups and bearing cones

1шт.

Not Shown

1шт.

11

425500A2

PIVOT PIN

1 1/2" od x x 5 5/8" ul

1шт.

13

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

14

1030721

RIM

15 x 10 8 hole +2 1/4" offset

2шт.

15

1030720

TYRE/TIRE

31 x 13 1/2" - 15 10pr hf-1 high floatation, static load r

2шт.

16

1016177

WHEEL NUT

wheel 9/16"-18 CTD# WB40

16шт.

17

87401385

SPINDLE

bogie 5050 lb

2шт.

18

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

19

1013475

WASHER

1.06ID 2.1 .25 YZD

2шт.

20

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

21

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

22

280344

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

4шт.

23

425-1316

NUT,1"-14, G5

2шт.

24

491715R91

OIL SEAL

oil SE16

2шт.

25

87505192

HUB CAP

dc17

2шт.

26

425527A1

LOCKING PLATE

1шт.

27

87414

LUBE NIPPLE,1/4" - 28

2шт.

28

87010729

JAM NUT,Jam, 1 1/2"-6, G5

1шт.

29

87530607

NUT

1/2"-13, GB

2шт.

30

231-42412

NUT,3/4"-10, GB

6шт.

31

425588A1

SHIM

rear bogie

1шт.

32

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer 38.90MM ID x 53.98MM OD x 4.00MM thick

4шт.

33

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

34

1016176

STEP BOLT

.563 UNF GR5 WB41 YZD, 2.25 LONG, 1.625 THREAD

16шт.

35

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

2шт.

36

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

37

86516462

BEARING CUP,73.03mm OD x 19.05mm W

#25821

2шт.
