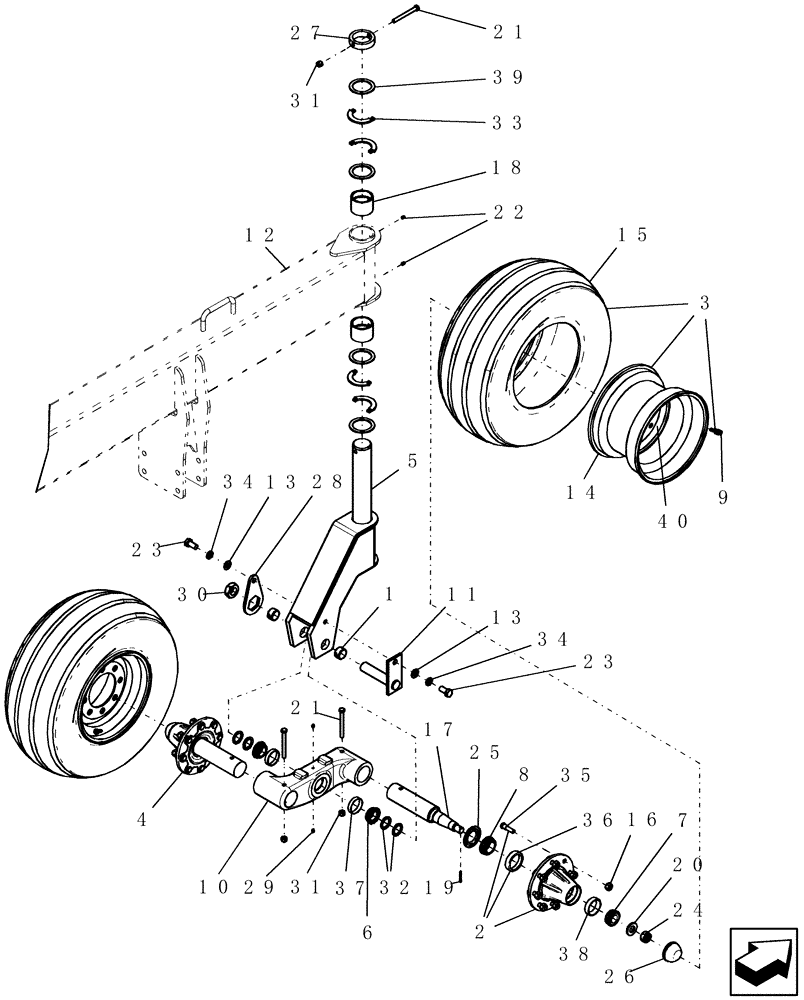

Запчасти Case IH 40 (44.100.02) - FRONT CASTER - WING (44) - WHEELS

1

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

tension 1 3/4" x 1 1/2" x 1"

2шт.

2

1020697

HUB

H811-8 assembly with cups and studs

2шт.

3

1030722

WHEEL ASSY

15x10 8h with 31x13.5 10p hf-1(high floatation tire)

2шт.

Includes wheel, tire and valve stem

1шт.

3

1033093

SEALANT

Tire anti-puncture 1 liter bottle

1шт.

4

425670A1

SPINDLE

bolt-in 5050 lb

2шт.

5

351848A1

CASTER

pivot front

1шт.

Includes tension bushings

1шт.

6

F86364

BEARING CONE

TM#13685 and seal #13600LA

2шт.

7

86516471

BEARING CONE,34.92mm ID x 24.61mm W

#25877

2шт.

8

512725

BEARING CONE,45.62mm ID x 25.4mm W

#25590

2шт.

9

1018564

VALVE

tire stem

1шт.

10

87401384

AXLE

walking offset RH

1шт.

Shown

1шт.

Includes grease nipples, bearing cups and bearing cones

1шт.

10

87401382

AXLE

walking offset LH

1шт.

Includes grease nipples, bearing cups and bearing cones

1шт.

Not Shown

1шт.

11

425500A2

PIVOT PIN

1 1/2" od x x 5 5/8" ul

1шт.

12

439255A1

FRAME

wing truss RH

1шт.

Includes bronze bushings and two decals 350336A1

1шт.

12

439253A1

FRAME

wing truss LH

1шт.

Includes bronze bushings and two decals 350336A1

1шт.

13

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

14

1030721

RIM

15 x 10 8 hole +2 1/4" offset

2шт.

15

1030720

TYRE/TIRE

31 x 13 1/2" - 15 10pr hf-1 high floatation, static load r

2шт.

16

1016177

WHEEL NUT

wheel 9/16"-18 CTD# WB40

16шт.

17

87401385

SPINDLE

bogie 5050 lb

2шт.

18

1020501

BUSHING,76.68mm ID x 89.03mm OD x 63.5mm L

bronze 3" id x 3 1/2" od 2 1/2" lg, SAE 660

2шт.

19

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

20

1013475

WASHER

1.06ID 2.1 .25 YZD

2шт.

21

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

3шт.

22

87414

LUBE NIPPLE,1/4" - 28

2шт.

23

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

24

425-1316

NUT,1"-14, G5

2шт.

25

491715R91

OIL SEAL

oil SE16

2шт.

26

87505192

HUB CAP

dc17

2шт.

27

1020639

RETAINER

king pin

1шт.

28

425527A1

LOCKING PLATE

1шт.

29

87414

LUBE NIPPLE,1/4" - 28

2шт.

30

87010729

JAM NUT,Jam, 1 1/2"-6, G5

1шт.

31

87530607

NUT

1/2"-13, GB

3шт.

32

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer 38.90MM ID x 53.98MM OD x 4.00MM thick

4шт.

33

425155A1

SHIM

split 1/4" thick

4шт.

34

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

35

1016176

STEP BOLT

.563 UNF GR5 WB41 YZD, 2.25 LONG, 1.625 THREAD

16шт.

36

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

2шт.

37

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

38

86516462

BEARING CUP,73.03mm OD x 19.05mm W

#25821

2шт.

39

1020512

THRUST WASHER

3.04 ID 4.0 OD .188 HRD RC 50-60

4шт.

40

87400954

DECAL

INFO WHEEL 13.5X31 10P

1шт.
