Запчасти Case IH 40 (44.100.01) - FRONT CASTER - MAIN FRAME (44) - WHEELS

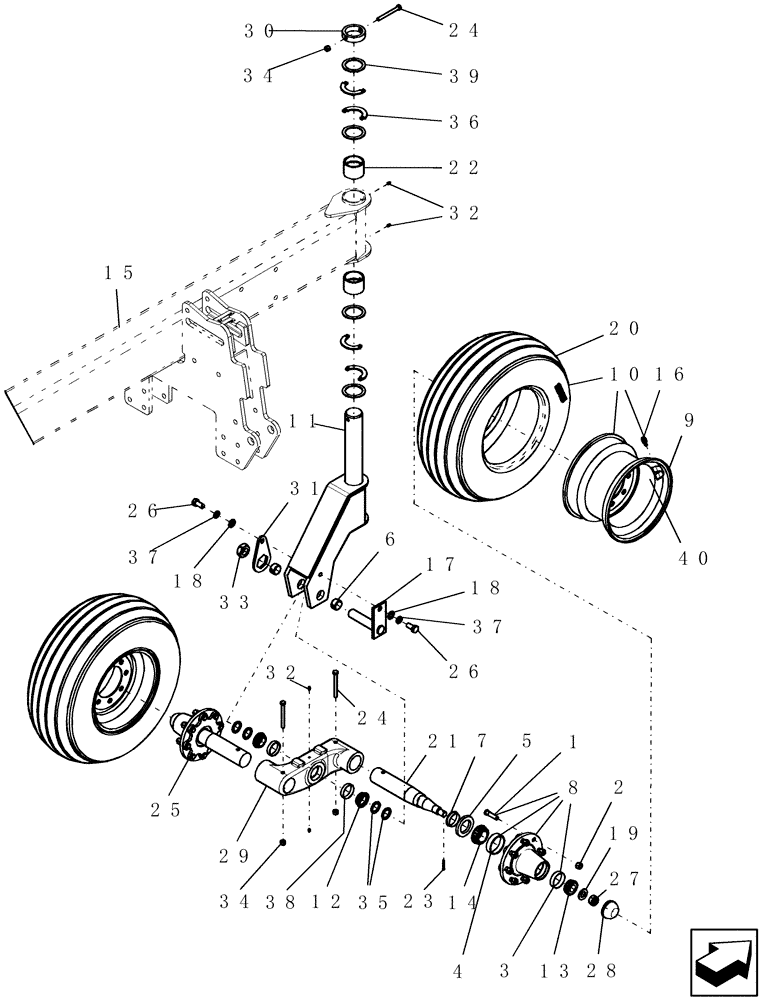

Схема запчастей Case IH 40 - (44.100.01) - FRONT CASTER - MAIN FRAME (44) - WHEELS
36
10
21
17
7
14
30
27
32
32
3
2
9
5
24
29
23
4
33
8
39
28
34
11
22
12
31
26
15
37
26
34
38
24
18
16
18
19
13
1
6
25
37
40
20
35

Артикул

Название

Примечание

Количество

1

2739

STUD

5/8"-18 x 2 1/2" wb46

16шт.

2

554480R1

WHEEL NUT

hub wheel 5/8"-18, GB

16шт.

3

86977427

BEARING CUP,76.22mm OD x 19.05mm W

#2720

2шт.

4

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

2шт.

5

4622

OIL SEAL

SE17

2шт.

6

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

tension 1 3/4" x 1 1/2" x 1"

2шт.

7

22814

SLEEVE

wear, S812 spindle

2шт.

8

87506296

HUB

H812-16 w/cups & studs

2шт.

Includes cups, studs and nuts

1шт.

9

425672A1

RIM

15X10LBH 8 hole -1 1/2" offset

2шт.

10

350632A1

WHEEL ASSY

31X13.5 -15 14PR 8 holes

2шт.

Includes wheel, tire, sealant and valve stem

1шт.

10

1033093

SEALANT

Tire anti-puncture 1 liter bottle

1шт.

11

351848A1

CASTER

pivot front

1шт.

Includes tension bushings

1шт.

12

F86364

BEARING CONE

TM#13685 and seal #13600LA

2шт.

13

86576988

BEARING ASSY,31.75mm ID x 62mm OD x 20.64mm W

tm#2790

2шт.

14

174127

TAPERED BEARING,2" ID x 1.192"

tm#3780

2шт.

15

87674169

FRAME

truss main RH

1шт.

Shown

1шт.

15

87673485

FRAME

truss main LH

1шт.

Not Shown

1шт.

16

1018564

VALVE

tire stem

2шт.

17

425500A2

PIVOT PIN

1 1/2" od x x 5 5/8" ul

1шт.

18

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

19

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

2шт.

20

350631A1

TYRE/TIRE

31X13.5-15 14 PR

2шт.

21

87401386

SPINDLE

bogie 6100 lbs

2шт.

22

1020501

BUSHING,76.68mm ID x 89.03mm OD x 63.5mm L

bronze 3" id x 3 1/2" od 2 1/2" lg, SAE 660

2шт.

23

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

24

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

3шт.

25

425689A1

SPINDLE

bolt-in 6100 lb

2шт.

Includes spindle and hub

1шт.

26

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

27

425-1316

NUT,1"-14, G5

2шт.

28

87505192

HUB CAP

dc17

2шт.

29

87401384

AXLE

walking offset RH

1шт.

Shown

1шт.

Includes grease nipples, bearing cups and bearing cones

1шт.

29

87401382

AXLE

walking offset LH

1шт.

Includes grease nipples, bearing cups and bearing cones

1шт.

Not Shown

1шт.

30

1020639

RETAINER

king pin

1шт.

31

425527A1

LOCKING PLATE

1шт.

32

87414

LUBE NIPPLE,1/4" - 28

4шт.

33

87010729

JAM NUT,Jam, 1 1/2"-6, G5

1шт.

34

87530607

NUT

1/2"-13, GB

3шт.

35

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer 38.90MM ID x 53.98MM OD x 4.00MM thick

4шт.

36

425155A1

SHIM

split 1/4" thick

4шт.

37

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

38

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

39

1020512

THRUST WASHER

3.04 ID 4.0 OD .188 HRD RC 50-60

4шт.

40

87400955

DECAL

INFO WHEEL 13.5X31 14P

1шт.

Выбрано товаров: 53
