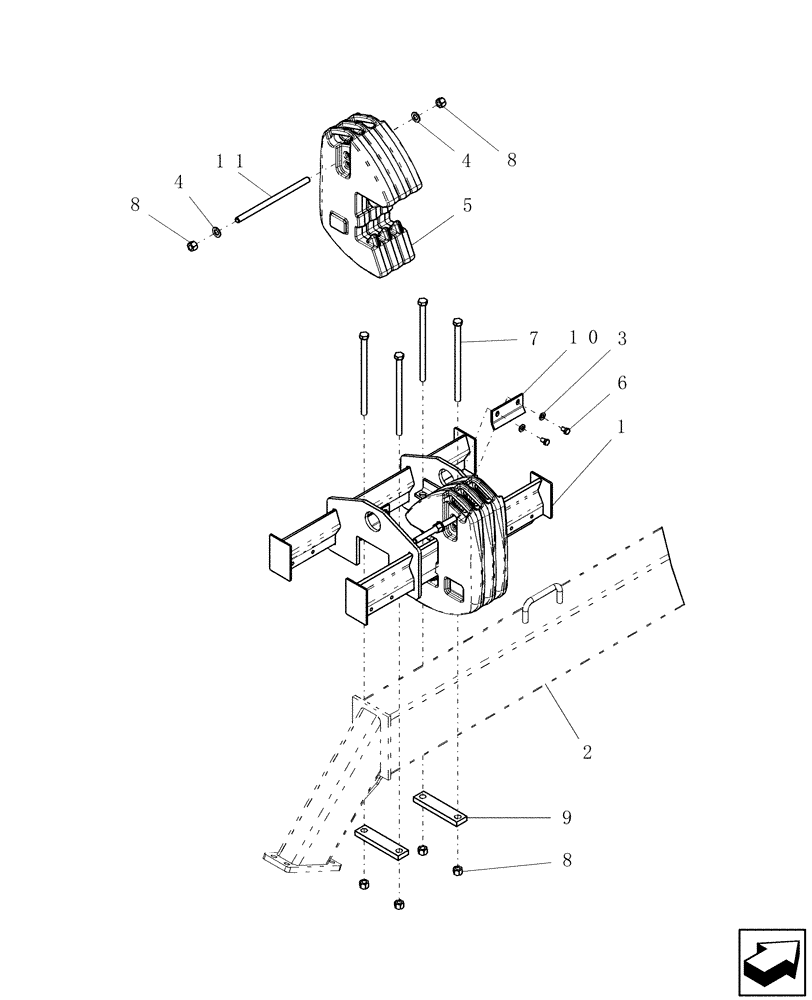

Запчасти Case IH 40 (39.110.03) - WEIGHT BRACKET KIT (WING) (39) - FRAMES AND BALLASTING

1

350823A1

BRACKET

weight

1шт.

2

439255A1

FRAME

wing truss RH

1шт.

Includes bronze bushings and two decals 350336A1

1шт.

3

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

4

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

5

224383A2

WEIGHT

FRONT

6шт.

5

1347524C1

WEIGHT

6шт.

Must be ordered separately

1шт.

These weights may not need all the brackets shown

1шт.

6

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

7

413-12208

BOLT,Hex, 3/4" - 10 x 13", Gr 5

4шт.

8

280375

NUT,3/4"-10, GC

8шт.

9

350822A1

PLATE

weight locking

2шт.

10

350827A1

PLATE

weight locking

4шт.

11

350820A1

ROD

weight locking

2шт.
