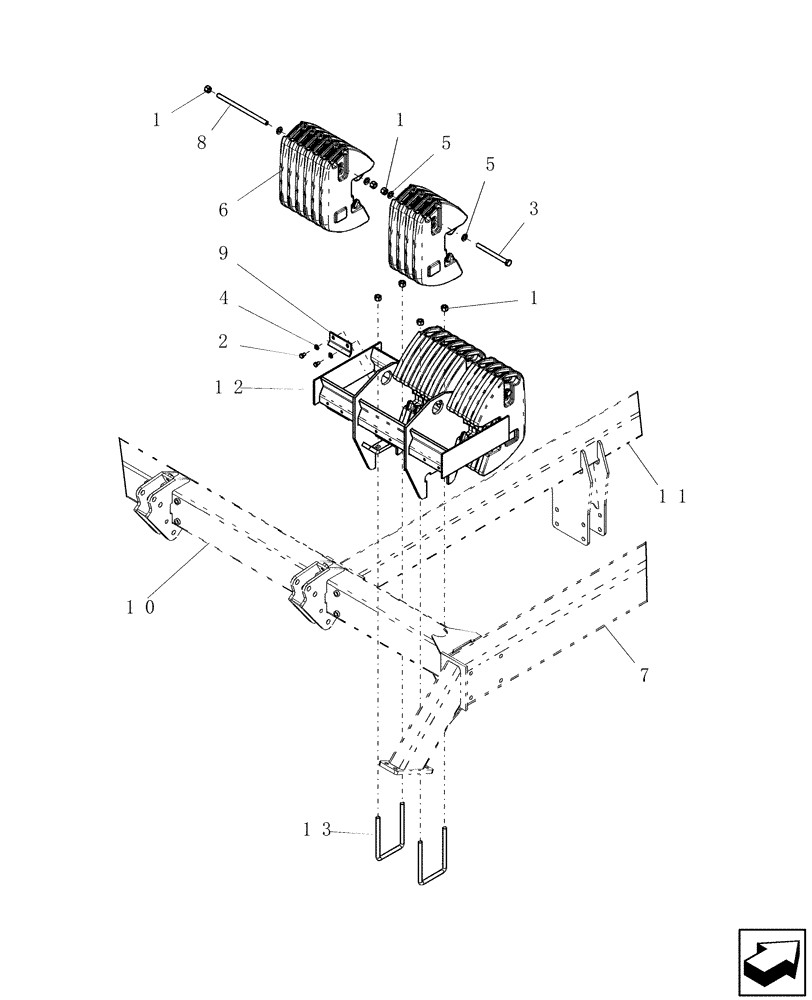

Запчасти Case IH 40 (39.110.02) - WEIGHT BRACKET KIT (MAIN FRAME) (39) - FRAMES AND BALLASTING

1

280375

NUT,3/4"-10, GC

10шт.

2

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

3

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

2шт.

4

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

5

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

8шт.

6

405846A3

WEIGHT

FRONT

20шт.

6

1347524C1

WEIGHT

20шт.

Must be ordered separately

1шт.

These weights may not need all the brackets shown

1шт.

7

439251A1

FRAME

truss main RH

1шт.

Includes bronze bushings

1шт.

8

350820A1

ROD

weight locking

2шт.

9

350827A1

PLATE

weight locking

4шт.

10

425139A1

TUBE

rear cross

1шт.

Includes decal 350336A1

1шт.

11

425660A1

TUBE

hitch truss center RH

1шт.

12

425882A1

BRACKET

weight mf

1шт.

13

439260A1

U-BOLT

us 3/4"-10 6 5/32"w 10"d -G5 2" thread

2шт.
