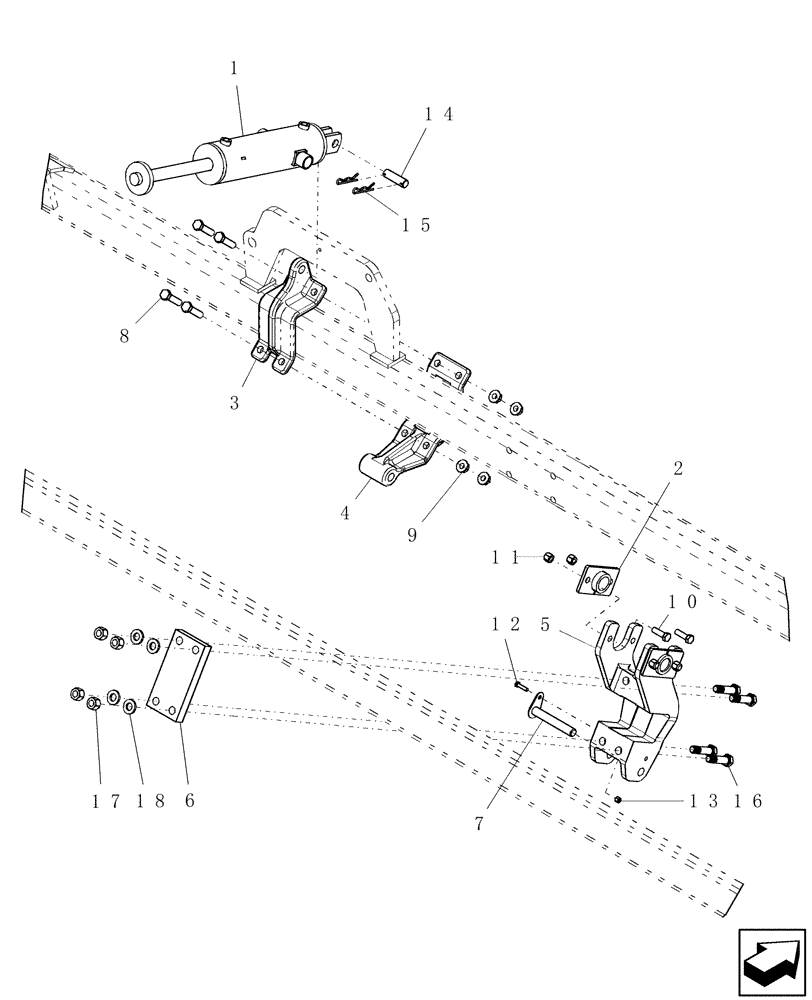

Запчасти Case IH 40 (39.100.06[01]) - SUBBAR CYLINDER MOUNT ASSEMBLY (39) - FRAMES AND BALLASTING

1

350630A1

HYDRAULIC CYLINDER

4 1/2" x 12" ctd trunion, Years: -31-AUG-03

1шт.

7.5" and 10" Spacing

1шт.

1

87406916R

REMAN-HYD CYLINDER

SDX40 SINGLE DISK NO-TILL AIR DRILL, ctd trunion (6/02-7/08), Reman for New PN 350630A1

1шт.

1

87406916C

CORE-HYD CYLINDER

Return Number

1шт.

1

87406916

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4 1/2" x 12" Monarch 3000 psi, Start Year: 01-JAN-04

1шт.

7.5" and 10" Spacing

1шт.

1

87406916R

REMAN-HYD CYLINDER

SDX40 SINGLE DISK NO-TILL AIR DRILL, Monarch 3000 psi (6/02-7/08)

1шт.

1

87406916C

CORE-HYD CYLINDER

Return Number

1шт.

1

435893A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi, Years: -30-NOV-04

1шт.

15" Spacing

1шт.

No Pins Or Clips

1шт.

1

87406914

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4" x 12" Monarch 3000 psi, Start Year: 01-DEC-04

1шт.

15" Spacing

1шт.

2

349390A1

RETAINER

cylinder trunion

2шт.

3

306291A1

MOUNTING PARTS

cylinder

1шт.

4

306290A1

MOUNTING PARTS

hinge

1шт.

5

306295A2

MOUNTING PARTS

cylinder, Serial Range: -CBJ0007200

1шт.

5

425653A1

MOUNTING PARTS

cylinder, Start Serial: CBJ0007201

1шт.

6

306289A1

PLATE

bolting, Serial Range: -CBJ0007200

1шт.

6

425654A1

MOUNTING PLATE

, Start Serial: CBJ0007201

1шт.

7

349394A1

PIN

pivot

1шт.

8

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

9

231-53412

FLANGE NUT,Flg, 3/4"-10

4шт.

10

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

11

86639566

NUT,5/8"-11, GB

4шт.

12

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

1шт.

14

350108A1

PIN

cylinder - 1 x 2.41 ul

1шт.

15

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

16

425881A1

BOLT

7/8"-9 x 3 1/2" -G8 special - 28.2mm long thread, Serial Range: -CBJ0007200

4шт.

16

86508733

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

, Start Serial: CBJ0007201

4шт.

17

232-41414

NUT

7/8"-9 GR C 1-way, all metal, Serial Range: -CBJ0007200

4шт.

17

280375

NUT,3/4"-10, GC

, Start Serial: CBJ0007201

4шт.

18

87012439

WASHER,0.91" ID x 1.75" OD x 0.24" Thk

, Serial Range: -CBJ0007200

4шт.
