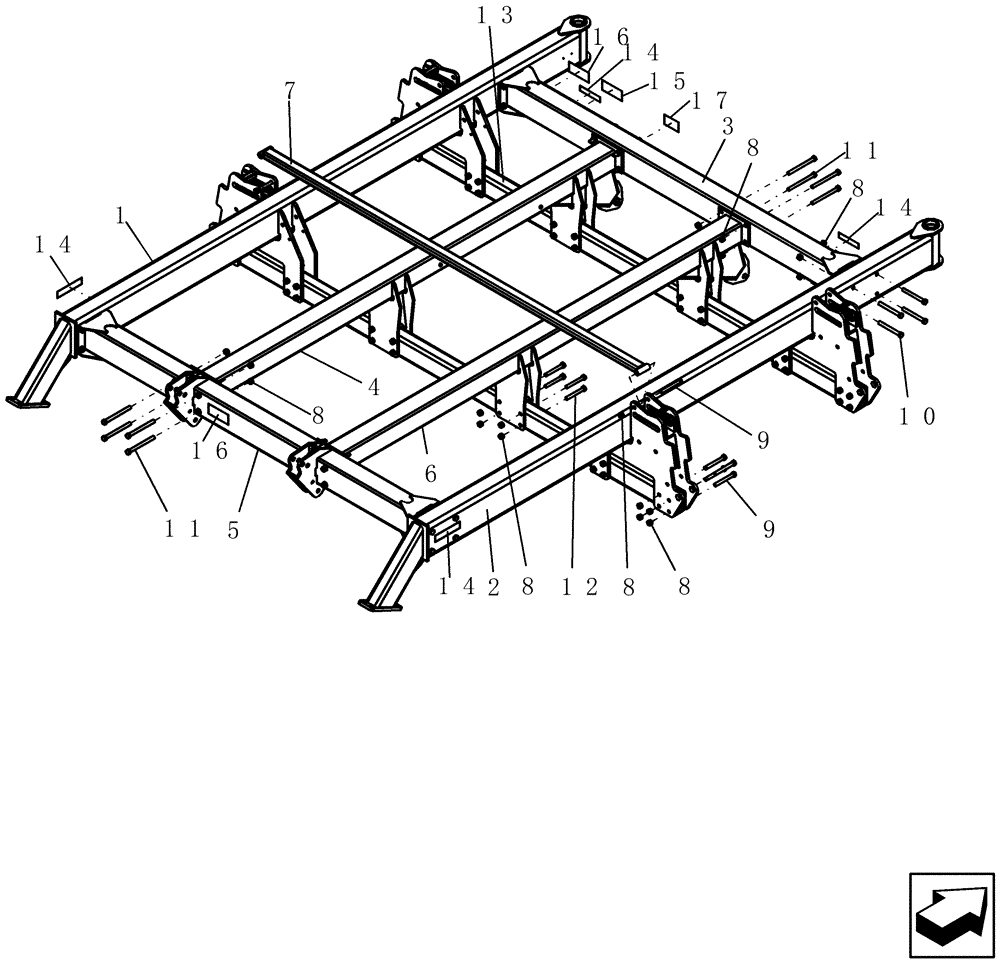

Запчасти Case IH 40 (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

87673485

FRAME

truss main LH

1шт.

2

87674169

FRAME

truss main RH

1шт.

3

87673559

TUBE,3046.4 mm L

front cross

1шт.

Includes decals 350336A1, 350335A1, 312479A1, and 2 of 311864A1

1шт.

4

351805A1

FRAME

center hitch truss LH

1шт.

5

425139A1

TUBE

rear cross

1шт.

Includes decal 350336A1

1шт.

6

425660A1

TUBE

hitch truss center RH

1шт.

7

425673A1

TUBE

tie rod

1шт.

8

280375

NUT,3/4"-10, GC

82шт.

9

426-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

34шт.

10

86557052

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 8

16шт.

11

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

16шт.

12

86508735

BOLT,Hex, 3/4" - 10 x 6", Gr 8

16шт.

13

306157A1

TUBE,4102 mm Length

main gang 40'

2шт.

14

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

4шт.

15

350335A1

DECAL

wing lock-up valve

1шт.

16

350336A1

DECAL

Danger - opener safety lock

2шт.

17

312479A1

DECAL

warning pictorial

1шт.
