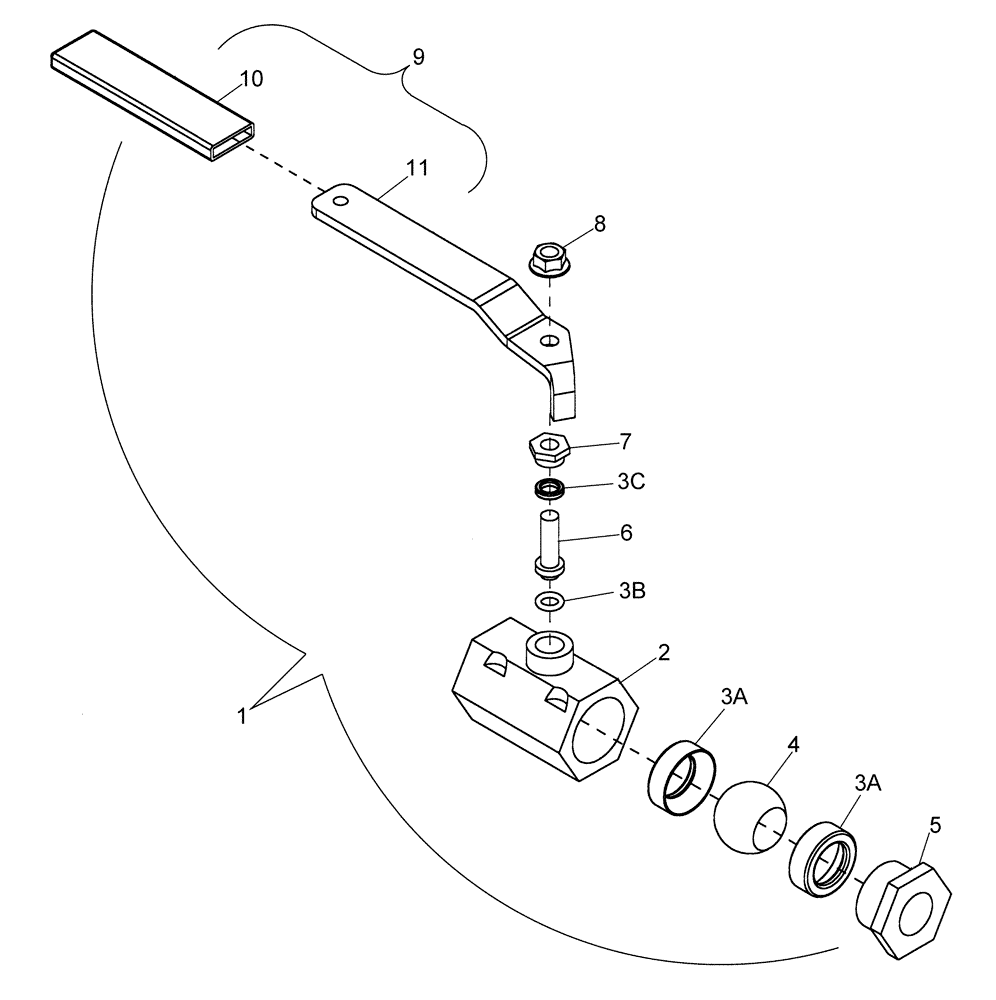

Запчасти Case IH 40 (35.116.03) - WING LIFT HYDRAULIC BALL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

349403A1

VALVE

ball

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

350172A1

KIT

SEAL

2шт.

3a

NSS

NOT SOLD SEPARAT

SEAT - TFE

1шт.

3b

NSS

NOT SOLD SEPARAT

SEAL - TFE thrust washer

1шт.

3c

NSS

NOT SOLD SEPARAT

RING - TFE stuffing box

1шт.

4

NSS

NOT SOLD SEPARAT

BALL

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

6

NSS

NOT SOLD SEPARAT

STEM

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - stem gland

1шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

9

350203A1

HANDLE

VALVE

1шт.

Includes 60-6267T1

1шт.

10

60-6267T1

GRIP

handle vinyl 1" x 1 7/8" x 3 7/8" lg

1шт.

11

NSS

NOT SOLD SEPARAT

HANDLE - ball valve

1шт.
