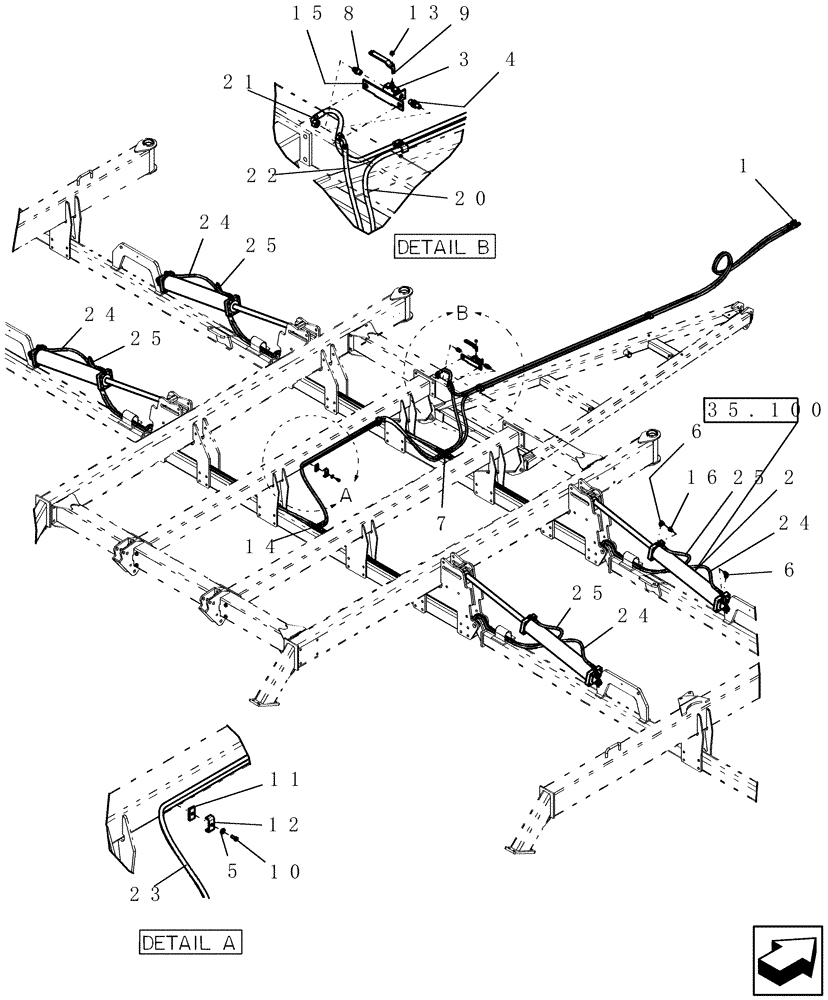

Запчасти Case IH 40 (35.116.01) - WING LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

9412

QUICK MALE COUPLING

1/2"

2шт.

2

87407431

HYDRAULIC CYLINDER

hyd cylinder assembly 5" x 30" Monarch

4шт.

Includes 86990365, 1019844, 218-5106, 350401A1, 1015478, and 6-70060

1шт.

3

349403A1

VALVE

ball

1шт.

4

350170A1

FITTING

steel 1/2" mp 1/2" mj bulkhead

1шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

8шт.

7

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

8

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

1шт.

9

350203A1

HANDLE

VALVE

1шт.

Includes 60-6267T1

1шт.

9

60-6267T1

GRIP

handle vinyl 1" x 1 7/8" x 3 7/8" lg

1шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

350326A1

ISOLATOR

clamp, hose small

4шт.

12

1024284

CLAMP

HOSE FORMED 2.88 X .94

4шт.

13

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

14

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

15

349404A1

BRACKET

valve mount

1шт.

16

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

4шт.

20

312939A1

HYDRAULIC HOSE

3/8" x 215" fl

1шт.

21

312940A1

HYDRAULIC HOSE

3/8" x 200" fl

1шт.

22

350148A1

HYDRAULIC HOSE

3/8" x 26" fl

1шт.

23

350151A1

HYDRAULIC HOSE

3/8" x 90" fl

2шт.

24

1032442

HYDRAULIC HOSE

3/8" x 168" fl

4шт.

25

1279598C1

HYDRAULIC HOSE

3/8" x 135" fl

4шт.

26

87409045

SEAL KIT

Seal Kit For 87407431

1шт.

100

1013122

CABLE TIE

CABLE STRAP 3/16" x 15 1/2" long, nylon

1шт.

Not Shown

1шт.
