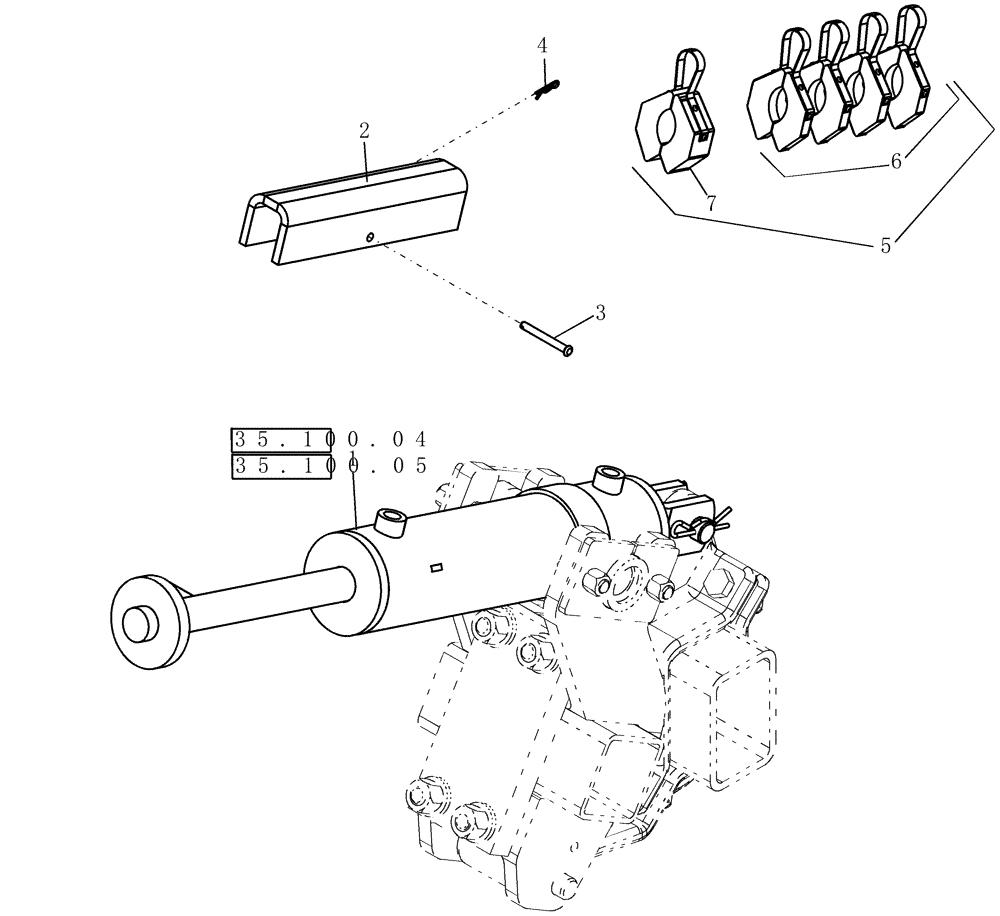

Запчасти Case IH 40 (35.100.07) - SUBBAR CYLINDER SAFETY LOCK (35) - HYDRAULIC SYSTEMS

1

87406916

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4 1/2" x 12" Monarch 3000 psi

1шт.

7.5" and 10" Spacing

1шт.

1

87406916R

REMAN-HYD CYLINDER

40 PRECISION DISK DRILL, Monarch 3000 psi (7/08-)

1шт.

1

87406916C

CORE-HYD CYLINDER

Return Number

1шт.

1

87406914

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4" x 12" Monarch 3000 psi

1шт.

15" Spacing

1шт.

2

306298A1

STOP

cylinder

1шт.

3

439-1544

HEADED PIN,5/16" x 2 3/4"

1шт.

4

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

1шт.

5

306299A1

KIT

depth stop 1/2" and 1 1/4"

1шт.

Includes 350702A1 and four 350704A1

1шт.

6

350704A1

STOP

depth 1/2" red

4шт.

7

350702A1

STOP

depth 1 1/4" green

1шт.
