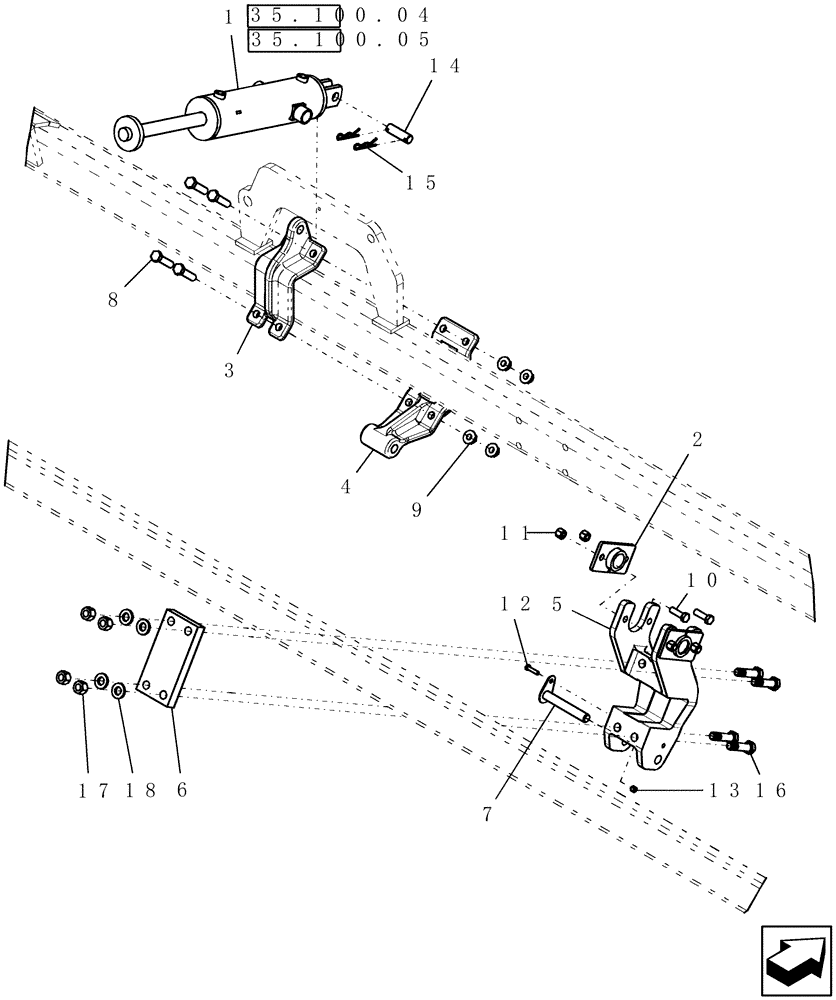

Запчасти Case IH 40 (35.100.06) - SUBBAR CYLINDER MOUNT ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

87406916

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4 1/2" x 12" Monarch 3000 psi

1шт.

7.5" and 10" Spacing

1шт.

1

87406916R

REMAN-HYD CYLINDER

40 PRECISION DISK DRILL, Monarch 3000 psi (7/08-)

1шт.

1

87406916C

CORE-HYD CYLINDER

Return Number

1шт.

1

87406914

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4" x 12" Monarch 3000 psi

1шт.

15" Spacing

1шт.

2

349390A1

RETAINER

cylinder trunion

2шт.

3

306291A1

MOUNTING PARTS

cylinder

1шт.

4

306290A1

MOUNTING PARTS

hinge

1шт.

5

425653A1

MOUNTING PARTS

cylinder

1шт.

6

425654A1

MOUNTING PLATE

1шт.

7

349394A1

PIN

pivot

1шт.

8

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

9

231-53412

FLANGE NUT,Flg, 3/4"-10

4шт.

10

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

11

86639566

NUT,5/8"-11, GB

4шт.

12

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

1шт.

14

350108A1

PIN

cylinder - 1 x 2.41 ul

1шт.

15

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

16

86508733

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

4шт.

17

280375

NUT,3/4"-10, GC

4шт.

18

87012439

WASHER,0.91" ID x 1.75" OD x 0.24" Thk

4шт.
