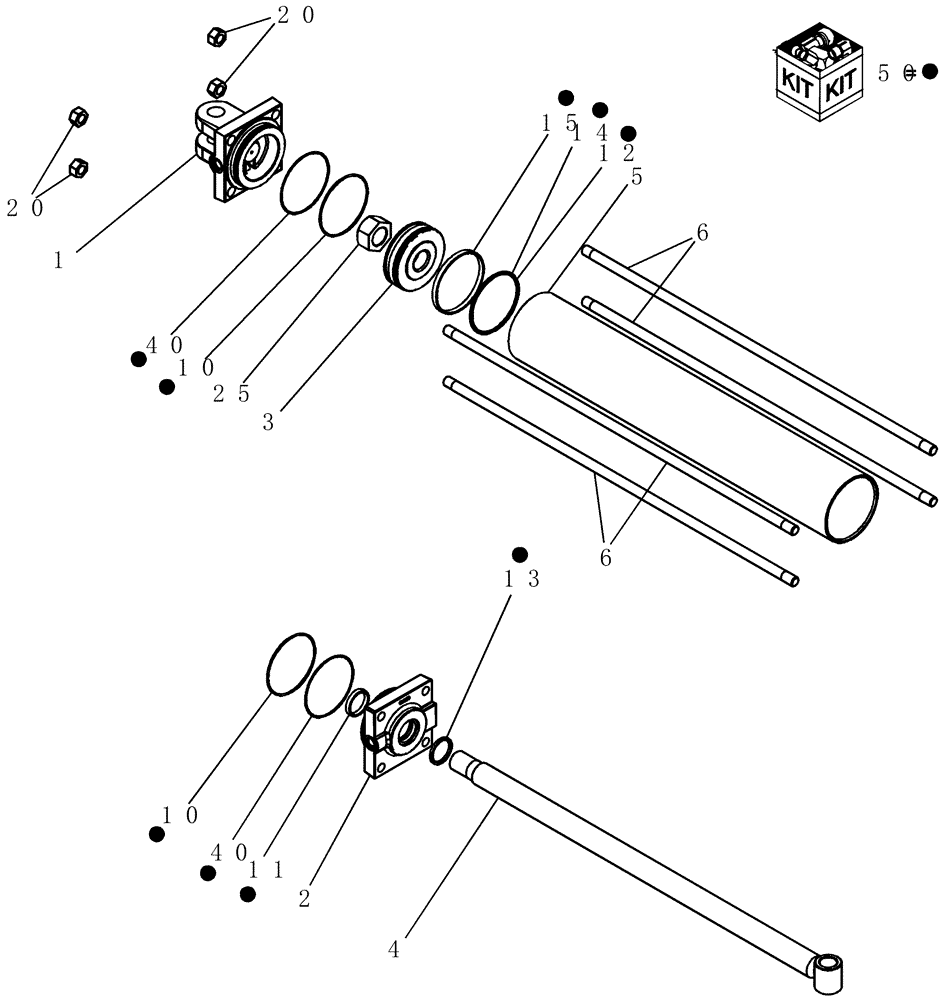

Запчасти Case IH 40 (35.100.03) - WING LIFT CYLINDER 86990365, 5" X 30" (35) - HYDRAULIC SYSTEMS

0

87407431

HYDRAULIC CYLINDER

hyd cylinder assembly 5" x 30" Monarch

1шт.

Includes 86990365, 1019844, 218-5106, 350401A1, 1015478, and 6-70060

1шт.

1

87409428

HEAD

cylinder base 5" bore; 2, 3/4"-16 orb ports

1шт.

2

87409393

HEAD

cylinder front 5" bore x 1 3/4" rod

1шт.

3

87409467

PISTON

cylinder, 5" bore Monarch #494760

1шт.

4

87409451

PISTON ROD

1 3/4" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

Cylinder Tube

1шт.

6

87409485

BOLT

hyd cylinder tie

4шт.

20

80001689

NUT

3/4"-16, G5

4шт.

25

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

50

87409045

SEAL KIT

hyd cylinder service 5" Monarch 1 3/4" rod

1шт.

Includes ref 10, 11, 13, 14, 15 and 40

1шт.
