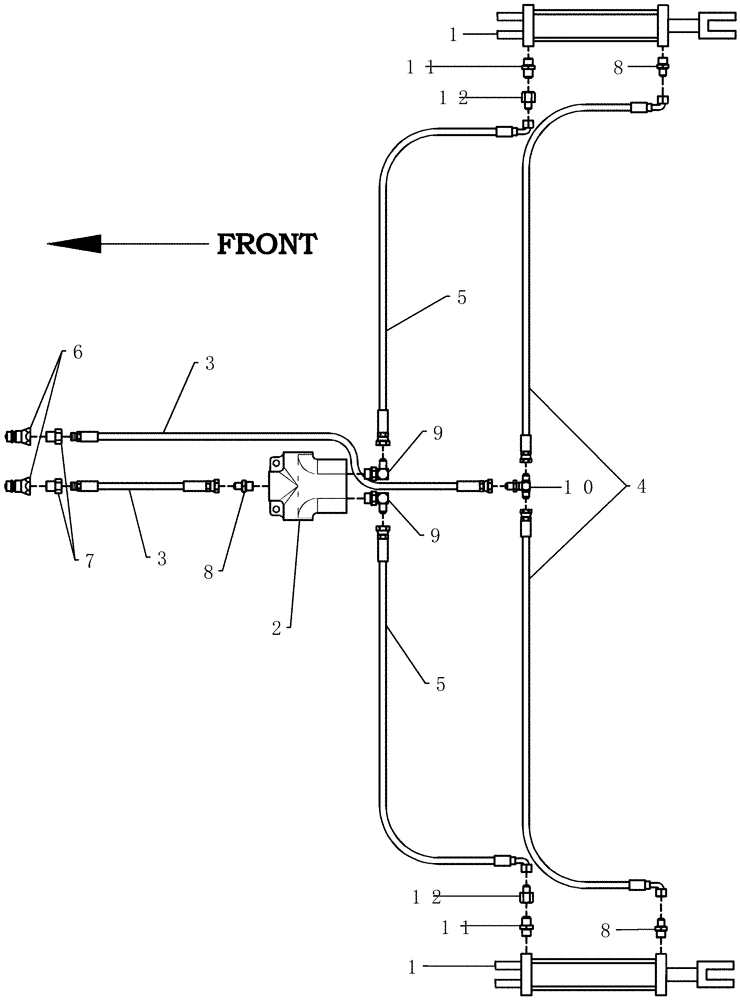

Запчасти Case IH 30 (75.200.06) - ENDMARKER HYDRAULICS (75) - SOIL PREPARATION

1

22990

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

2" x 12" Monarch, 3000 psi, with pins

2шт.

Refer to 2" x 12" Cylinder Parts For Details

1шт.

2

87506235

REMOTE CONTROL VALVE

sequence 2 way 3 port

1шт.

3

425841A1

HYDRAULIC HOSE

1/4" x 198" fl

2шт.

4

23121

HYDRAULIC HOSE

1/4" x 277" fl

2шт.

5

23400

HYDRAULIC HOSE

1/4" x 261" fl, 3/8" fjic x 3/8" fjic

2шт.

6

435414A1

QUICK MALE COUPLING,1/2"-14 NPTF

2шт.

7

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

2шт.

8

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

3шт.

9

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

10

23388

TEE

fitting, hydraulic - bulkhead

1шт.

11

23387

1/2" mb x 1/2" mj

2шт.

12

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.
