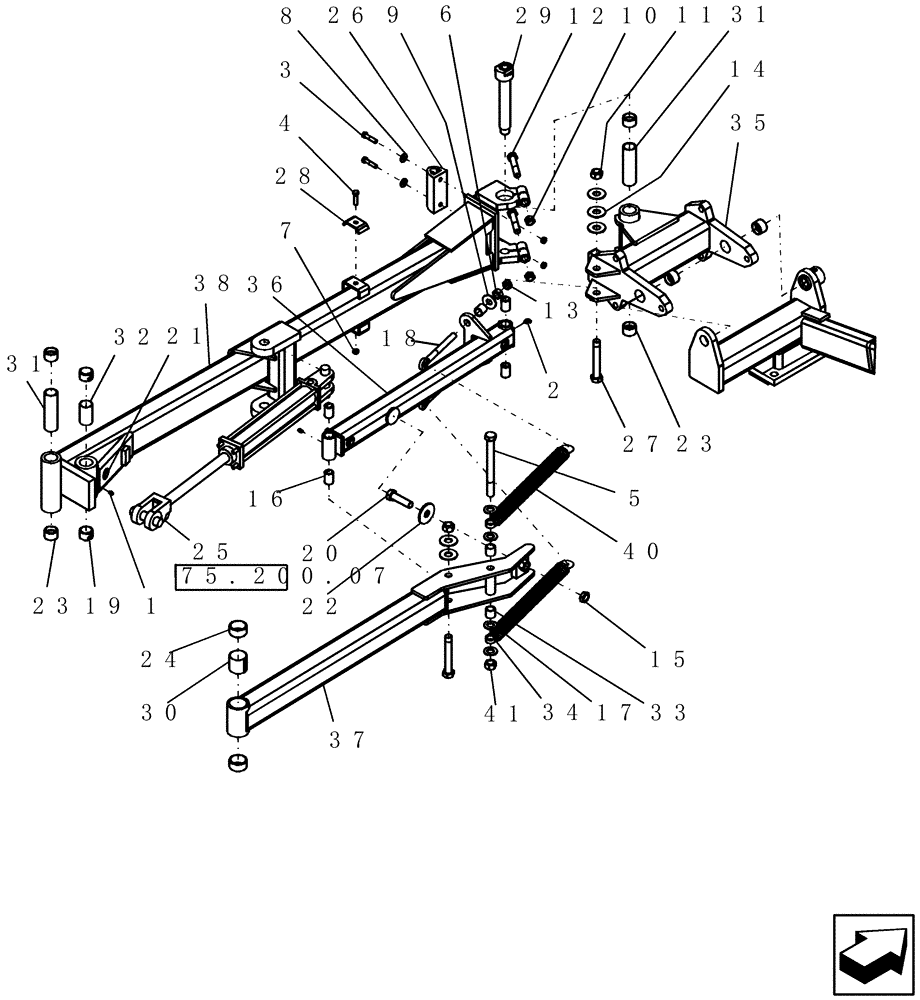

Запчасти Case IH 30 (75.200.02) - ENDMARKER INNER BI-FOLD (75) - SOIL PREPARATION

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

3

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

5

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

1шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

7

88902

NUT,3/8"-16

3шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

9

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

10

85700693

NUT,5/8" - 11, Gr C

2шт.

11

280375

NUT,3/4"-10, GC

3шт.

12

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

13

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

14

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

5шт.

15

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

16

3929

BUSHING

tension 1" x 3/4" x 1 1/2" long

4шт.

17

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

18

4269

EYEBOLT

5/8"-11x 7 3/8"

2шт.

19

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

2шт.

20

6452

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5, Full Thd

1шт.

21

6566

DECAL

grease 50 hours

3шт.

22

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

1шт.

23

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

6шт.

24

6637

BUSHING

composite 2" x 1 3/4" x 1"

2шт.

25

22990

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

2" x 12" Monarch, 3000 psi, with pins

1шт.

Refer to 2" x 12" Cylinder Parts For Details

1шт.

26

408657A1

BUMPER

pad, rubber, D-shape 2 1/8" w x 1 7/8" h x 5" long

1шт.

27

23583

BOLT

3/4"-10 x 5" -G5 5/8" thread

2шт.

28

CC-105

HOSE CLAMP

for 2 hoses

1шт.

29

87661322

PIN

offset

1шт.

30

DR-872

SPACER

walking beam 2" od x 1 7/8" long

1шт.

31

NN-361

SPACER

1 1/2" od x 3/32" thick x 1/2" long

2шт.

32

TM-115

SPACER

tube, pivot link

1шт.

33

87660735

SPACER

tube spring bias

4шт.

34

87660733

SPACER

breakaway spring

2шт.

35

TM-167

BRACKET

main mount knuckle, bifold

1шт.

36

TM-197

LINK

breakaway, inner - 15'

1шт.

37

TM-213

CONNECTING LINK

breakaway, outer - 15'

1шт.

38

TM-120V3

BOOM

main 15' endmarker

1шт.

40

87505303

TENSION SPRING

5/16" wire 1 5/64" od x 18" long

2шт.

41

230-42112

LOCK NUT,3/4"-10, GA

1шт.
