Запчасти Case IH 30 (75.100.13) - ADX AIR CART TOW BETWEEN CONNECTOR MOUNTS (75) - SOIL PREPARATION

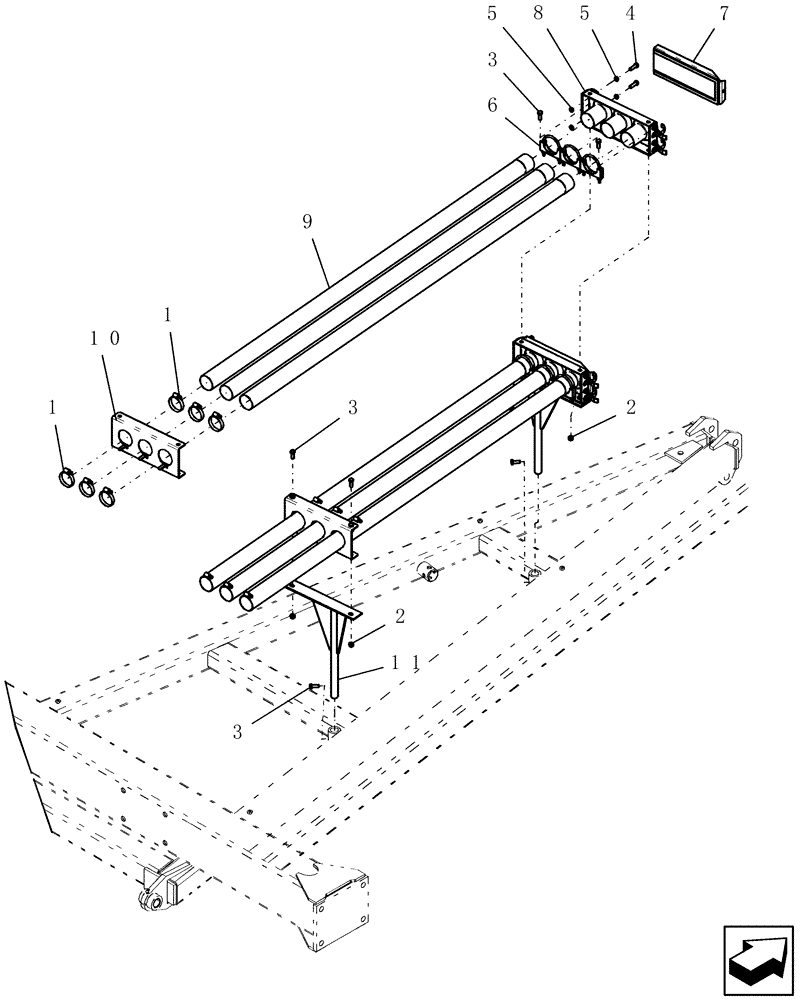

Схема запчастей Case IH 30 - (75.100.13) - ADX AIR CART TOW BETWEEN CONNECTOR MOUNTS (75) - SOIL PREPARATION
6
9
3
10
7
1
4
8
5
3
5
3
1
2
2
11

Артикул

Название

Примечание

Количество

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

12шт.

2

88902

NUT,3/8"-16

8шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

4

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

5

87016560

JAM NUT,Jam, 3/8"-16, G5

8шт.

6

1824

CLAMP

muffler, 2 1/2"

6шт.

7

GD-254

COVER

plate hose connect

2шт.

8

GD-672A

HOLDER

quick connect 2 1/2" female

2шт.

Includes two 413-620, four 425-146, two 5625 and four 4630

1шт.

9

GE-360

TUBE,63.5 mm OD x 1829 mm L

primary distribution - quick connect

6шт.

10

GP-201

PANEL

standard tube hose mount

2шт.

11

GP-381

SUPPORT

hose high capacity

2шт.

Выбрано товаров: 12
