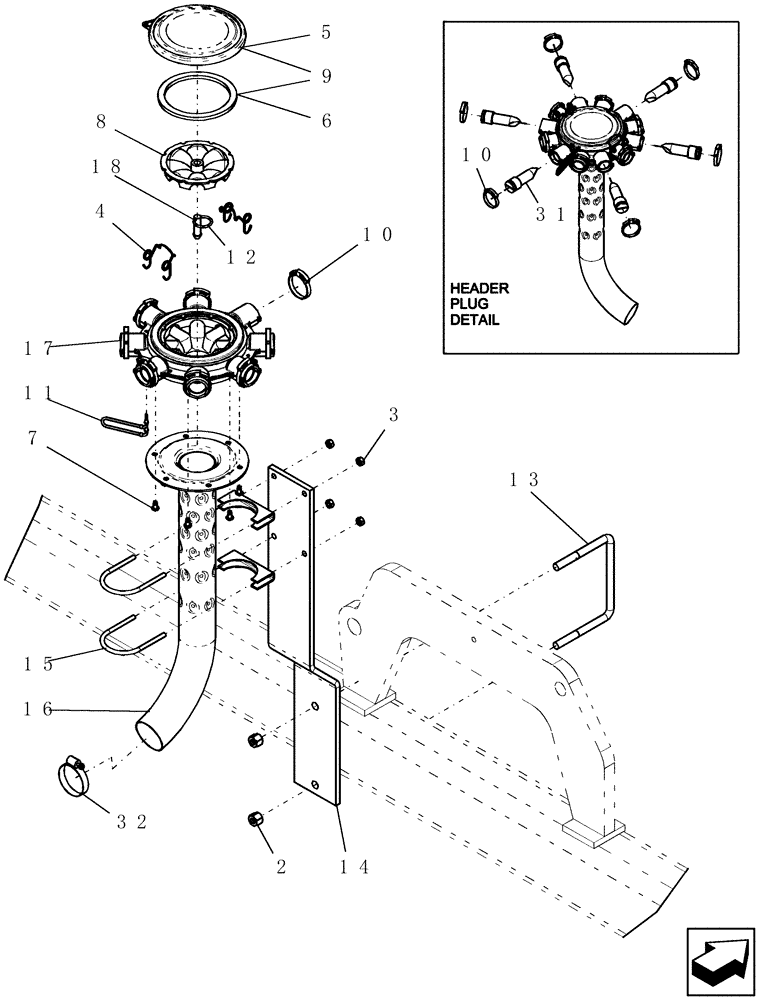

Запчасти Case IH 30 (75.100.11) - ADX AIR CART EZ FLOW HEADER MOUNTS (75) - SOIL PREPARATION

1

GP-106SV1

KIT

6 port ez flow header

1шт.

Includes 12 port header with 6 plugs - part number 23789

1шт.

Includes GP-112, 22073, six 23789, GP-253, two 21746, six 22035, 22104, twelve 507586, 419998A1 and 22602

1шт.

1

GP-107SV1

KIT

header 7 port ez flow

1шт.

Includes GP-107, 22323, GP-253, three 21746, six 22035, 22104, seven 507586, 419998A1 and 22602

1шт.

1

GP-108SV1

KIT

header 8 port ez flow

1шт.

Includes GP-108, 22070, GP-253, three 21746, six 22035, 22104, eight 507586, 419998A1 and 22602

1шт.

1

GP-109SV1

KIT

header 9 port ez flow

1шт.

Includes GP-109, 22071, GP-253, three 21746, six 22035, 22104, nine 507586, 419998A1 and 22602

1шт.

1

GP-110SV1

KIT

header 10 port ez flow

1шт.

Includes GP-110, 21749, GP-253, two 21746, six 22035, 22104, ten 507586, 419998A1 and 22602

1шт.

1

GP-111SV1

KIT

header 11 port ez flow

1шт.

Includes GP-111, 22072, GP-253, three 21746, six 22035, 22104, eleven 507586, 419998A1 and 22602

1шт.

1

GP-112SV1

KIT

header 12 port ez flow

1шт.

Includes GP-112, 22073, GP-253, two 21746, six 22035, 22104, twelve 507586, 419998A1 and 22602

1шт.

2

87530607

NUT

1/2"-13, GB

2шт.

3

9635082

NUT,5/16" - 18, Gr 5

4шт.

4

21746

CIRCLIP

lid ez flow header

2шт.

5

51200054

COVER

ez flow header

1шт.

6

21754

GASKET

lid - 5 3/8" od x 7/16" w x 1/4" thick

1шт.

7

187-845

SELF-TAP SCREW,Slotted Rd Hd, 1/4" x 1/2"

6шт.

8

REF

INSTRUCTION

For 6 port header, use 12 port header with 6 plugs

1шт.

8

22323

INSERT

header 7 port

1шт.

Not Shown

1шт.

8

412922A1

INSERT

header 8 port

1шт.

Shown

1шт.

8

22071

INSERT

header 9 port

1шт.

Not Shown

1шт.

8

21749

INSERT

header 10 port

1шт.

Not Shown

1шт.

8

432590A1

INSERT

header 11 port

1шт.

Not Shown

1шт.

8

22073

INSERT

header 12 port

1шт.

Not Shown

1шт.

9

22104

LID

ez flow header with seal

1шт.

Includes gasket 21754

1шт.

10

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

11

419998A1

CABLE

estane header securing

1шт.

12

22602

SPECIAL RING

1 1/16" id

1шт.

13

1030623

U-BOLT

us 1/2"-13 6 1/16" w x 5" d 2" thread

1шт.

14

312992A1

BRACKET

secondary manifold

1шт.

15

1824

CLAMP

muffler, 2 1/2"

2шт.

16

GP-103

ELBOW

secondary standard

1шт.

Shown

1шт.

Hose- 2.5 PVC Clear Spiral

1шт.

16

GP-102

STAND

elbow secondary high abrasion

1шт.

Not Shown

1шт.

Hose- 2.5 PVC Clear Spiral

1шт.

17

REF

INSTRUCTION

For 6 port header, use 12 port header with 6 plugs

1шт.

17

GP-107

INSERT

header 7 port ez flow glued

1шт.

Not Shown

1шт.

17

GP-108

INSERT

header 8 port ez flow glued

1шт.

Shown

1шт.

17

GP-109

INSERT

header 9 port ez flow glued

1шт.

Not Shown

1шт.

17

GP-110

INSERT

header 10 port ez flow glued

1шт.

Not Shown

1шт.

17

GP-111

INSERT

header 11 port ez flow glued

1шт.

Not Shown

1шт.

17

GP-112

INSERT

header 12 port ez flow glued

1шт.

Not Shown

1шт.

18

GP-253

INSERT

nose header

1шт.

31

87401070

PLUG

ez flow header

6шт.

32

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

100

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

100

86993485

HOSE,1.00" ID

Flex Black

1шт.
