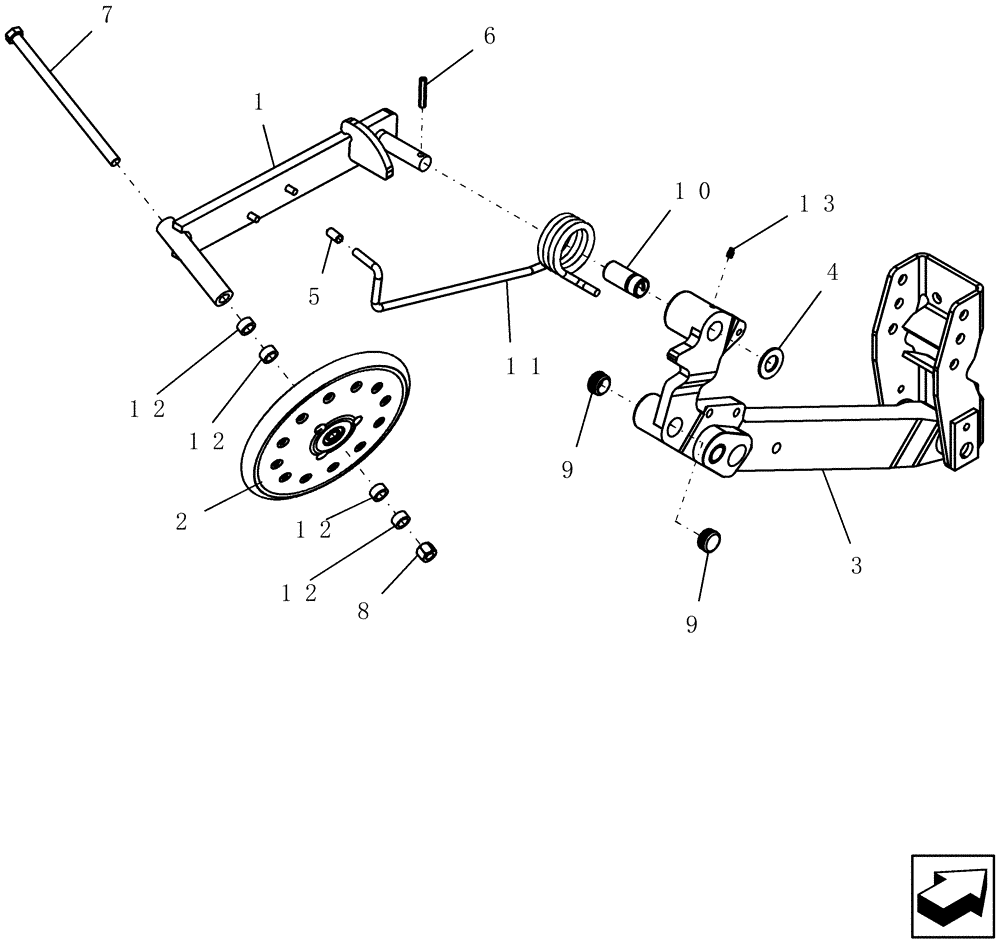

Запчасти Case IH 30 (75.100.09) - PACKER WHEEL ARM ASSEMBLY (75) - SOIL PREPARATION

1

306239A1

ARM

mount assembly RH

1шт.

Shown

1шт.

1

306128A1

ARM

mount assembly LH

1шт.

Not Shown

1шт.

2

87695406

WHEEL ASSY,305.81mm OD x 25.4mm W

1" x 12" nylon/rubber

1шт.

3

87505370

ARM

mount RH

1шт.

Shown

1шт.

3

87505363

ARM

mount LH

1шт.

4

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

5

350587A1

CAP

PVC 10.31ID X 25 MM RED

1шт.

6

438-22432

LOCK PIN,9.53mm OD x 50.8mm L, Coiled

1шт.

7

413-10176

BOLT,Hex, 5/8" - 11 x 11", Gr 5

1шт.

8

85700693

NUT,5/8" - 11, Gr C

1шт.

9

439225A1

PLUG

seed lock

2шт.

10

87504961

BUSHING,25.4mm ID x 32.38mm OD x 70.87mm L

tension 1 1/4" x 1" x 2 3/4" long

1шт.

11

306220A1

SPRING

torsion 7/16" wire x 2 3/4" id LH

1шт.

Not Shown

1шт.

11

306230A1

SPRING

torsion 7/16" wire x 2 3/4" id RH

1шт.

Shown

1шт.

12

306146A1

SPACER

11/16" x 1" x 1/2"

4шт.

13

87414

LUBE NIPPLE,1/4" - 28

1шт.
