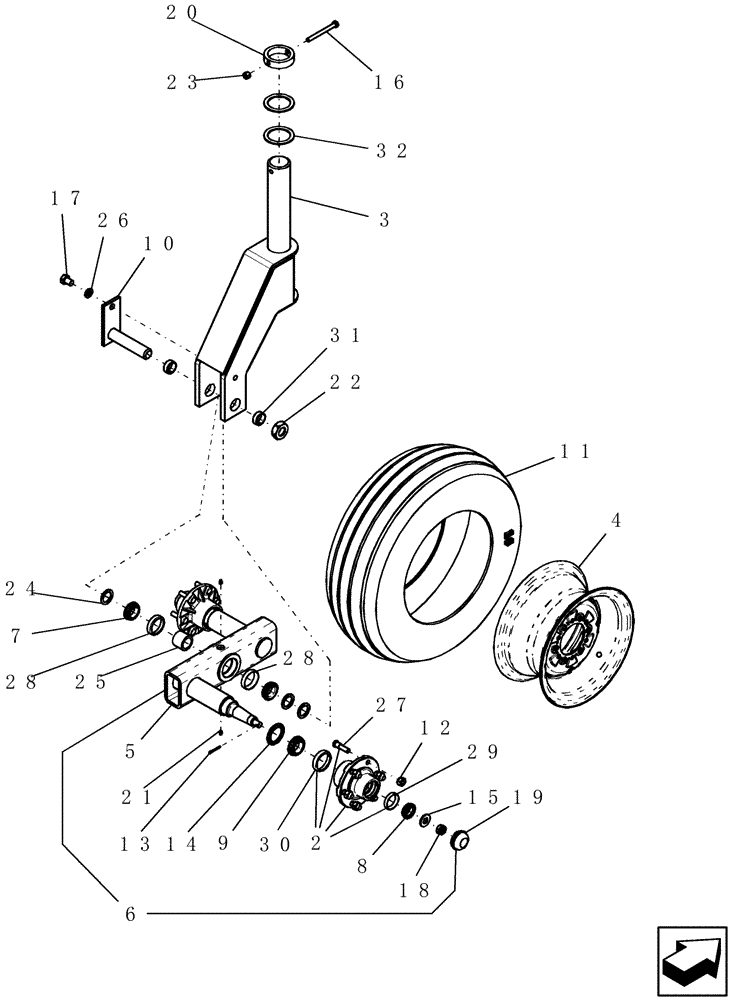

Запчасти Case IH 30 (44.100.01) - CASTER - STANDARD 6 BOLT HUB (44) - WHEELS

2

1023733

BEARING HOUSING

H630-2 assembly with cups and studs

2шт.

Includes 1016175, 1013560, 1012374, 651818R91 and 663557R91

1шт.

3

306192A1

CASTER

pivot bogie

1шт.

4

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

1шт.

5

306170A1

AXLE

bogie std duty 6-bolt

1шт.

6

306172A1

SUPPORT

bogie standard duty 6 bolt

1шт.

7

F86364

BEARING CONE

TM#13685 and seal #13600LA

2шт.

8

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

2шт.

8

84356153GV

BEARING

Value

2шт.

9

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

2шт.

10

425500A2

PIVOT PIN

1 1/2" od x x 5 5/8" ul

1шт.

11

1980927C1

TYRE/TIRE

11L X 15 SL - 8 ply

1шт.

Purchase Locally

1шт.

12

1016177

WHEEL NUT

wheel 9/16"-18 CTD# WB40

6шт.

13

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

14

62610C1

OIL SEAL,57.15mm ID x 77.88mm OD x 6.35mm Thk

hub oil fed mog #473473

2шт.

15

826271

WASHER

13/16"id 1 3/4"od 3/16" pln

2шт.

16

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

17

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

1шт.

18

86632554

SLOTTED NUT,3/4"-16, G5

2шт.

19

87505175

DUST CAP

H517 & H611

2шт.

20

1020639

RETAINER

king pin

1шт.

21

87414

LUBE NIPPLE,1/4" - 28

2шт.

22

87010729

JAM NUT,Jam, 1 1/2"-6, G5

1шт.

23

87530607

NUT

1/2"-13, GB

1шт.

24

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer 38.90MM ID x 53.98MM OD x 4.00MM thick

4шт.

25

107921A2

TUBE

spacer

1шт.

26

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

27

1016176

STEP BOLT

.563 UNF GR5 WB41 YZD, 2.25 LONG, 1.625 THREAD

6шт.

28

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

29

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

2шт.

30

663558R1

BEARING CUP

#LM501310

2шт.

31

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

tension 1 3/4" x 1 1/2" x 3/4" lg

2шт.

32

1020512

THRUST WASHER

3.04 ID 4.0 OD .188 HRD RC 50-60

2шт.
