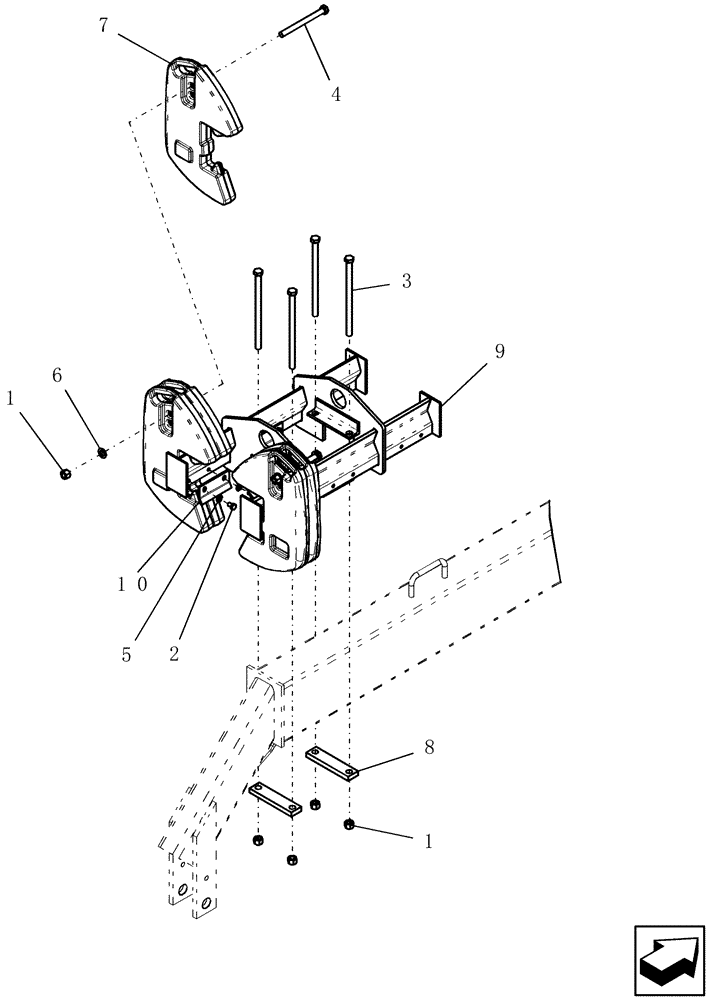

Запчасти Case IH 30 (39.110.03) - WEIGHT BRACKET KIT - WING (39) - FRAMES AND BALLASTING

1

280375

NUT,3/4"-10, GC

6шт.

2

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

3

413-12208

BOLT,Hex, 3/4" - 10 x 13", Gr 5

4шт.

4

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

2шт.

5

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

6

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

7

224383A2

WEIGHT

FRONT

5шт.

8

350822A1

PLATE

weight locking

2шт.

9

350823A1

BRACKET

weight

1шт.

10

350827A1

PLATE

weight locking

4шт.
