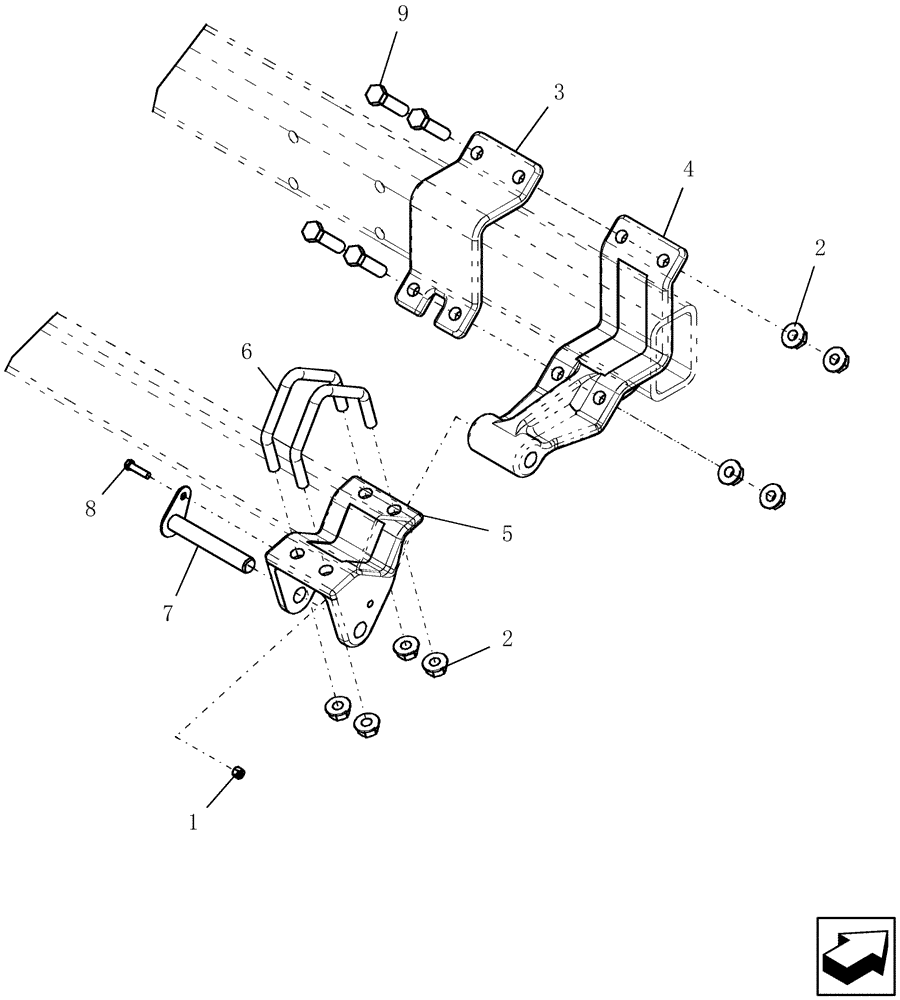

Запчасти Case IH 30 (39.100.05) - SUBBAR HINGE ASSEMBLY (39) - FRAMES AND BALLASTING

1

231-1446

NUT,3/8" - 16, Gr 5

1шт.

2

231-53412

FLANGE NUT,Flg, 3/4"-10

8шт.

3

87533276

MOUNTING PARTS

cap

1шт.

4

306290A1

MOUNTING PARTS

hinge

1шт.

5

306292A1

MOUNTING PARTS

hinge

1шт.

6

306293A1

BOLT

v 3/4" x 4" -G5

2шт.

4" x 4" Tube

1шт.

7

349394A1

PIN

pivot

1шт.

8

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

9

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.
