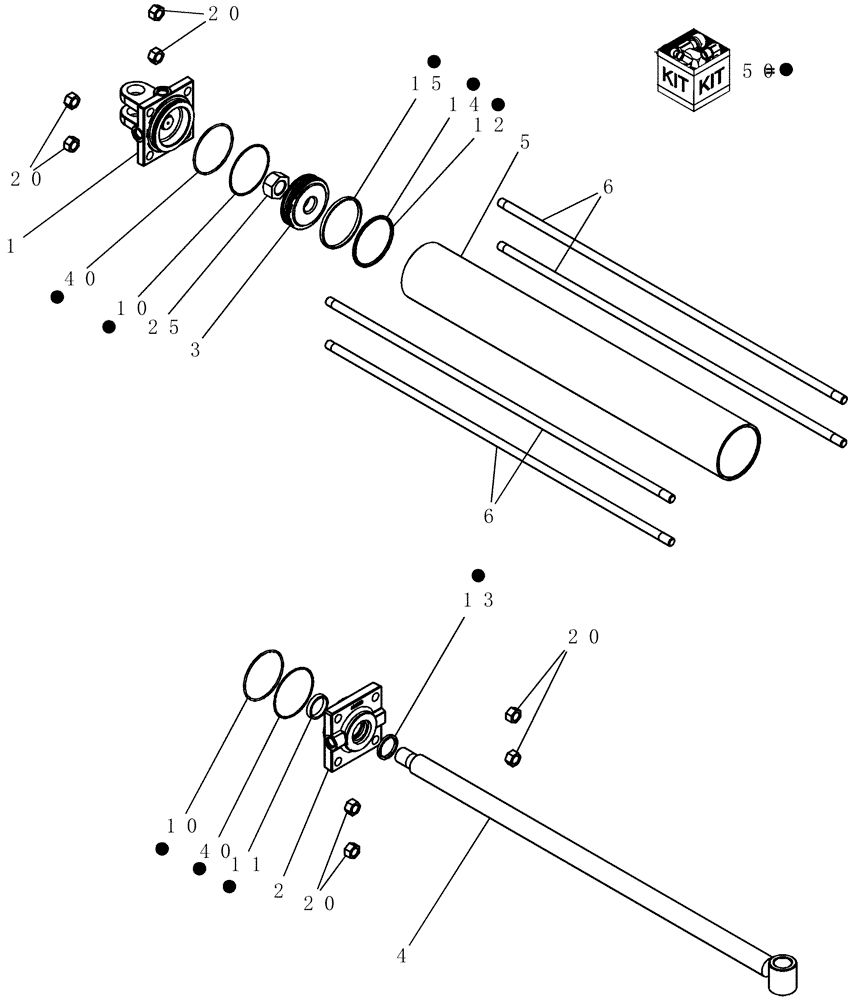

Запчасти Case IH 30 (35.116.02) - HYDRAULIC LIFT CYLINDER, 86991622, 4" X 30" (35) - HYDRAULIC SYSTEMS

0

86991622

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 762mm Stroke

4" x 30" Monarch

1шт.

0

87407430

SEAL KIT

hydraulic cylinder 4" x 30" Monarch

1шт.

Includes 86991622, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

87409427

HEAD

cylinder base 4" bore

1шт.

2

87409392

HEAD

cylinder front 4" bore x 1 1/2" rod

1шт.

3

87409466

PISTON

cylinder, 4" bore Monarch #494730

1шт.

4

87409450

PISTON ROD

1 1/2" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

Cylinder Tube

1шт.

6

87409484

BOLT

hydraulic cylinder tie

4шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

50

87403962

SEAL KIT

hyd cylinder, 4" Monarch with 1 1/2" rod

1шт.

100

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

1шт.

Not Shown

1шт.

100

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

Not Shown

1шт.

100

350401A1

DECAL

warning restrictors

1шт.

Not Shown

1шт.

100

1015478

DECAL

warning do not operate

1шт.

Not Shown

1шт.

100

6-70060

INSTRUCTION

hydraulic wing lift cylinder kit

1шт.

Not Shown

1шт.
