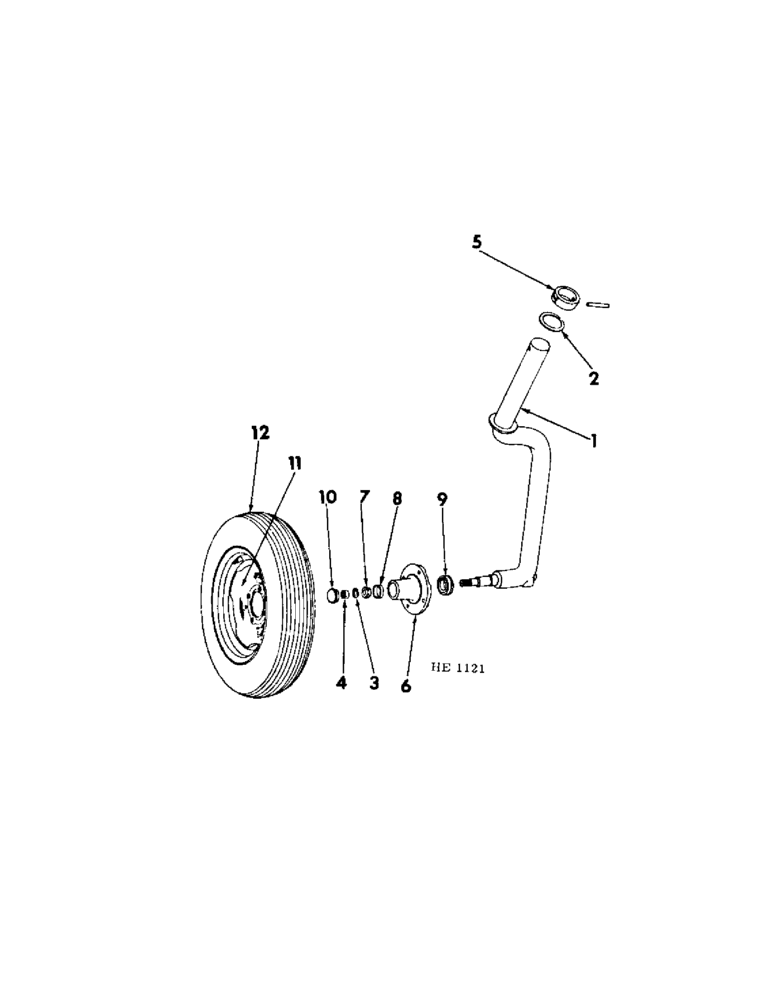

Запчасти Case IH 150 (07[1]) - FORECARRIAGE AXLE AND HUB

1

619931R91

AXLE

ASSY, forecarriage wheel LH, all

1шт.

1

619932R91

AXLE

ASSY, forecarriage wheel RH, 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18

1шт.

2

21719R1

WASHER

2.031 x 2.750 x .105 axle, 1 per axle assy

1шт.

3

467750R1

WASHER

.781 x 1.500 X .105 spindle, 1 per axle assy

1шт.

4

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd, 1 per axle assy

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), , 1 per nut 5/32" x 1 1/2"

1шт.

5

619930R1

BUSHING

pivot, 1 per axle assy

1шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

1 per bush 3/8" x 2 3/4", Coiled

1шт.

6

619353R1

HUB

forecarriage wheel, 1 per axle assy

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer bearing, 1 per axle assy

1шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

8

651814R1

BEARING CUP

CUP, outer bearing, 1 per axle assy

1шт.

9

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, wheel hub inner, 1 per axle assy

1шт.

10

602959R1

PLUG

CAP, hub, 1 per wheel

1шт.

11

455169R92

WHEEL

15 x 4-1/2 KB

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

4шт.

12

TIRE & TUBE, 6.70-15 4 ply implement, 1 per wheel

1шт.

12

TIRE, 6.70-15 4 ply I-1 tubeless, 1 per wheel

1шт.

387897R91

VALVE STEM

VALVE, tubeless tire

1шт.
