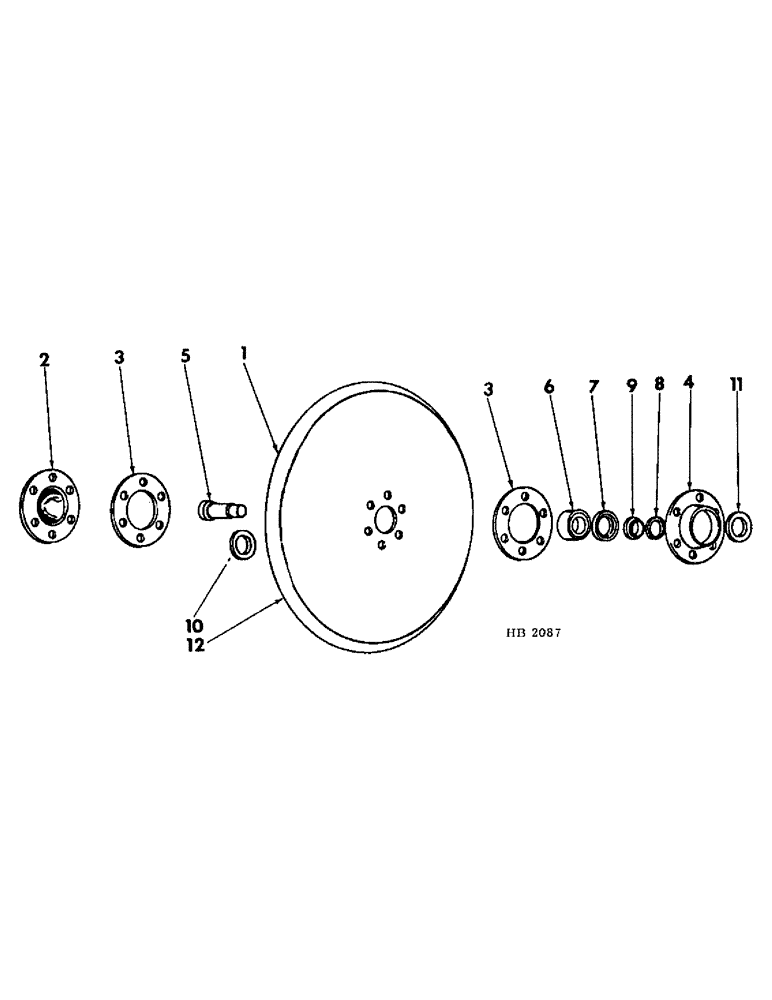

Запчасти Case IH 150 (67) - DISK MARKER ATTACHMENT DISK

1

603004R1

BLADE

DISK, marker

1шт.

2

602990R1

CAP

marker disk

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small solid

6шт.

3

602992R1

GASKET

bearing retainer and cap

2шт.

4

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

5

602987R1

BOLT

BOLT, disk

1шт.

425-1110

NUT,5/8"-18, G5

5/8-18 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

465004R1

BEARING, disk

1шт.

7

602994R1

FLANGE

seal

1шт.

8

602993R1

WASHER

SEAL, dirt

1шт.

9

602988R1

SPACER

seal retainer

1шт.

10

658182R1

SPACER, disk

1шт.

11

591714R1

WASHER

.719 x 1.250 x .054

1шт.

12

603005R91

DISC

DISK ASSY, marker, Consists of:

1шт.

603004R1

BLADE

1шт.

602987R1

BOLT

BOLT

1шт.

465004R1

BEARING

1шт.

602990R1

CAP

1шт.

602994R1

FLANGE

1шт.

602992R1

GASKET

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

6шт.
