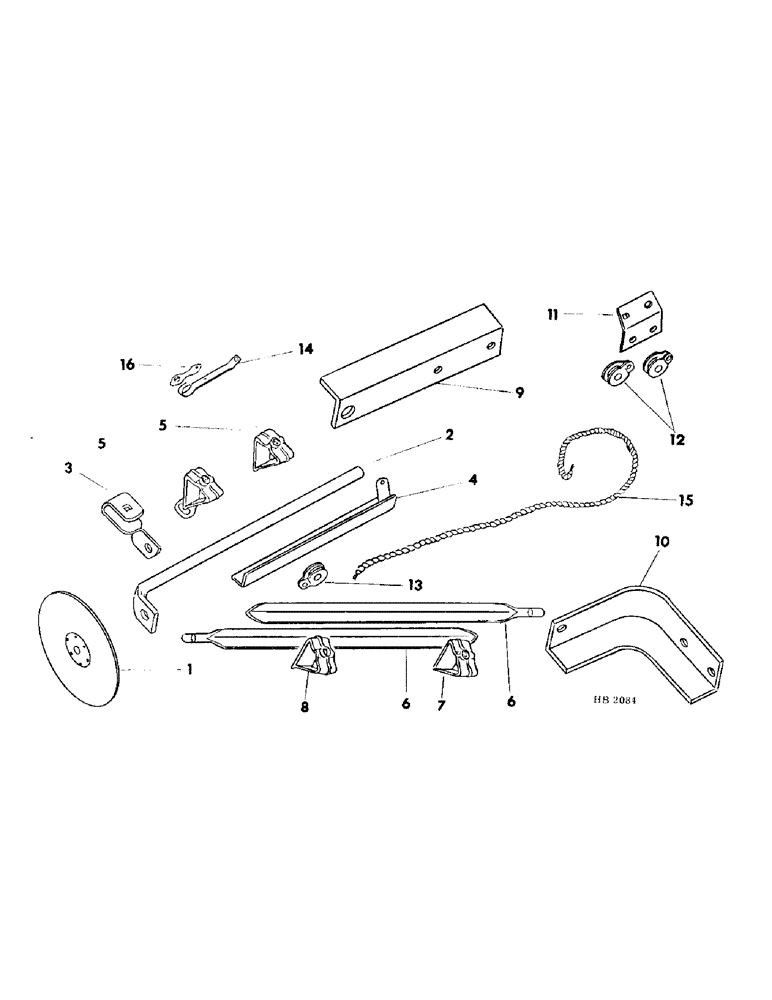

Запчасти Case IH 150 (66) - SINGLE DRILL DISK MARKER ATTACHMENT, FOR USE ON 20X8, 14X10, 16X10, 10X12, 14X12 & 8X18 SIZE DRILLS

1

603005R91

DISC

DISK ASSY, marker, 1 required per disk marker, For components refer to disk marker

1шт.

2

592260R1

ROD, marker

1шт.

3

600534R1

CLAMP, front marker angle

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

4

600537R91

ANGLE ASSY, marker rear RH shown

1шт.

4

600538R91

ANGLE ASSY, marker rear LH

1шт.

21715R1

WASHER

.906 x 1.750 x .105

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

5

600529R1

CLAMP, marker, Serial Range: angle-rod

2шт.

19579R1

SET SCREW

SCREW, 7/16-14 x 7/8 cup-pt-set

2шт.

6

600536R1

ANGLE, marker front

2шт.

7

457A

CLAMP, front marker angle

1шт.

8

600530R1

CLAMP

front marker angle outer

1шт.

184366

SUPPORT

SCREW, 7/16-14 x 1-1/4 cup-pt-set, 1 per clamp

1шт.

9

592766R1

ANGLE, marker mounting rear LH

1шт.

9

592767R1

ANGLE, marker mounting rear RH shown

1шт.

10

592281R1

ANGLE, marker mounting front LH

1шт.

10

592282R1

ANGLE, marker mounting front RH shown

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

11

592768R1

SUPPORT, pulley LH

1шт.

11

592769R1

SUPPORT, pulley RH shown

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

819043C91

PULLEY

ASSY, balance & lift rope

2шт.

13065R1

PIN, 3/8 x 1 cotter

2шт.

13

819043C91

PULLEY

ASSY, rope guide

1шт.

102910

DRAWBAR SUPPORT

SCREW, 7/16-14 x 1-3/4 sq-hd cup-pt set

1шт.

21331R1

WASHER

.469 x 1.250 x .054

1шт.

14

615712R91

GUIDE

ASSY, marker, Includes 1-FA4916, spring, and 1-106883, rivet

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22186R1

SQ HOLE WASHER,13/32" x 1 1/2" x .060", Sq Hole

.406 x 1.500 x .054

1шт.

15

ROPE, 3/8 sisal x 42 ft, Dealer to purchase locally

1шт.

16

FA4916

SPRING

locking

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

1018921R1

PAMPHLET, instruction

1шт.
