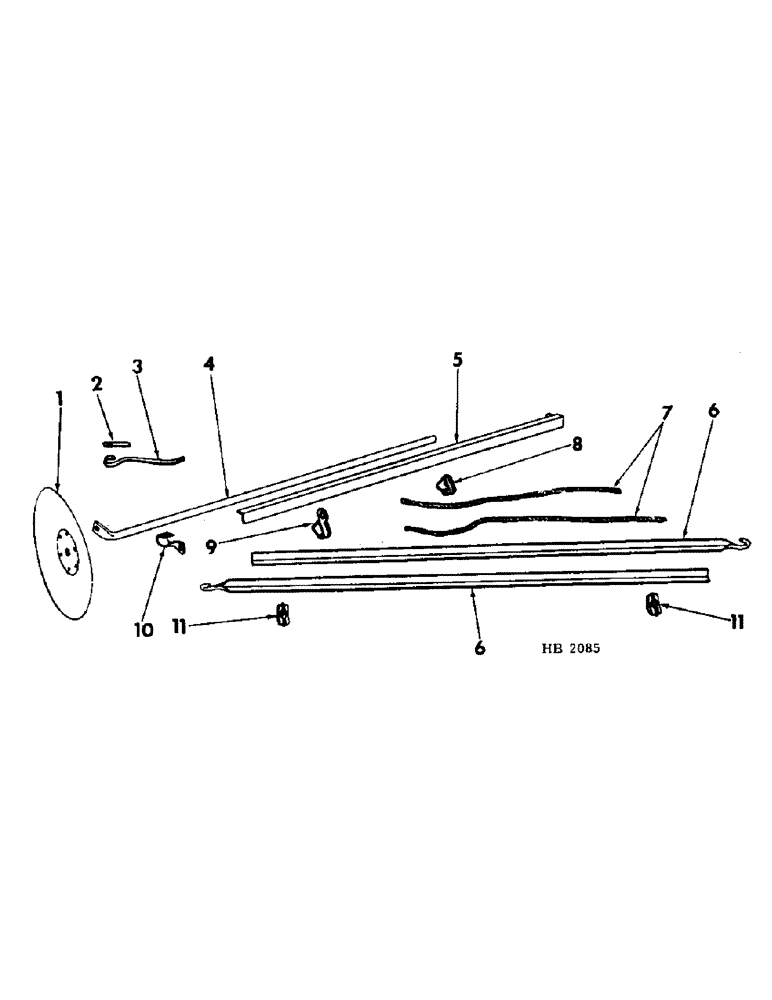

Запчасти Case IH 150 (65) - MULTIPLE DRILL DISK MARKER, FOR 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, & 8X18 DRILLS WHEN DUPLEXED

1

603005R91

DISC

DISK ASSY, marker, 1 required per disk marker, For components refer to disk marker

1шт.

2

FA4916

SPRING

locking

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

3

615712R91

GUIDE

ASSY, marker, Includes 1-FA4916, spring, and 1-106883, rivet

1шт.

596809R1

BOLT, 3/8-16 x 3/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22186R1

SQ HOLE WASHER,13/32" x 1 1/2" x .060", Sq Hole

.406 x 1.500 x .054

1шт.

4

592260R1

ROD, marker

1шт.

5

600538R91

ANGLE ASSY, marker rear LH

1шт.

5

600537R91

ANGLE ASSY, marker rear RH

1шт.

21715R1

WASHER

.906 x 1.750 x .105

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

6

600536R1

ANGLE, marker front

2шт.

7

ROPE, 3/8 sisal x 75 foot, Dealer to purchase locally

1шт.

8

600529R1

CLAMP, marker, Serial Range: angle-rod

1шт.

9

600530R1

CLAMP

marker angle to rod outer

1шт.

19579R1

SET SCREW

SCREW, 7/16-14 x 7/8 cup-pt-set

2шт.

10

600534R1

CLAMP, front marker angle

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

457A

CLAMP, front marker angle

2шт.

184366

SUPPORT

SCREW, 7/16-14 x 1-1/4 cup-pt set

2шт.

1018901R2

PAMPHLET, disk marker instructions

1шт.
