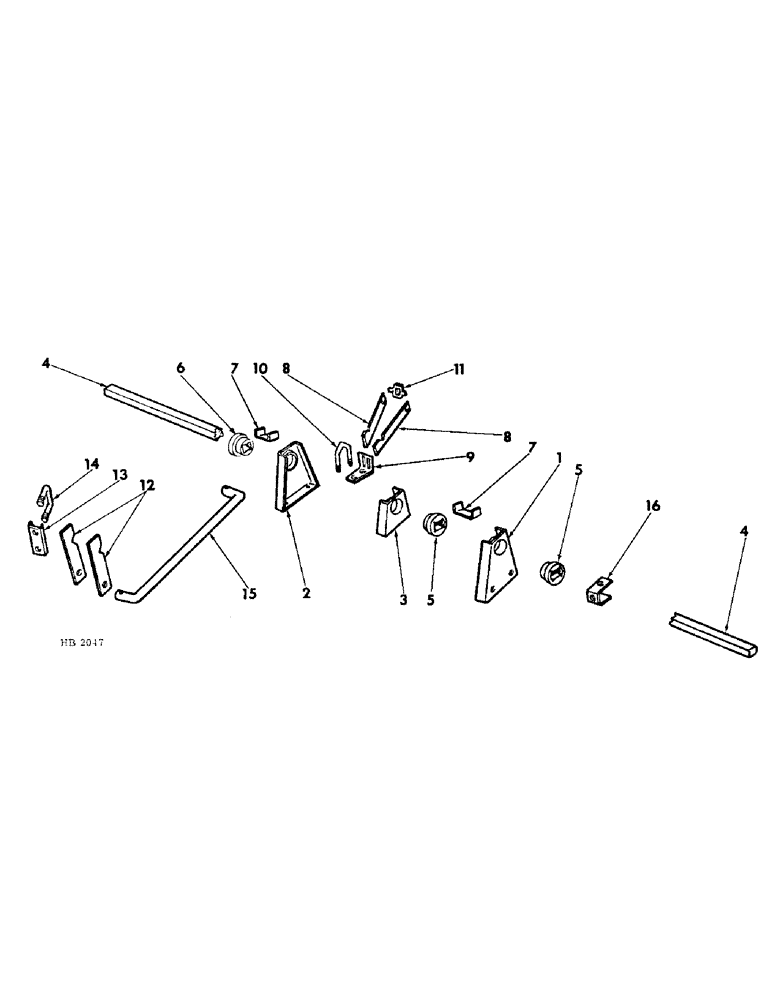

Запчасти Case IH 150 (04) - ROCKSHAFT AND LIFT ARMS
№
Артикул
Название
Примечание
Количество
1
603971R1
BRACKET
rockshaft bearing inner, 4 used 10X10 and 8X12, 6 used 14X10, 10X12, 10X14 and 8X18, 10 used 20X8, 16X10 & 14X12
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 hex-hd, 2 bolts used per bracket
1шт.
120377
NUT,3/8" - 16, Gr 5
1 used per bolt 3/8"-16, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 1 per bolt 3/8"
1шт.
2
603972R1
BRACKET
rockshaft bearing outer, 2 used 16X10 and 14X12, 4 used 20X8, 10X10, 14X10, 8X12, 10X12, 10X14 and 8X18
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 hex-hd, 2 bolts used per bracket
1шт.
120377
NUT,3/8" - 16, Gr 5
1 used per bolt 3/8"-16, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 1 per bolt 3/8"
1шт.
3
603973R1
BRACKET
rockshaft I-beam, 2 used 10X10 and 8X12, 4 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14 and 8X18
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 hex-hd, 2 bolts used per bracket
1шт.
120377
NUT,3/8" - 16, Gr 5
1 used per bolt 3/8"-16, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 1 per bolt 3/8"
1шт.
603901R1
WASHER
tapered, 1 used per bolt
1шт.
4
BAR, rockshaft rear RH, 10X12 model, 48.38 inch to be cut from 71.5 inch from part number 603919R1
1шт.
4
BAR, rockshaft front LH, 10X12 model
1шт.
4
BAR, rockshaft rear LH, 10X14 & 8X18, 50.00 inch to be cut from 71.5 inch from part number 603919R1
1шт.
4
BAR, rockshaft rear LH, 14X10, rh, 14X12, 57.75 inch to be cut from 71.5 inch from part number 603919R1
1шт.
4
BAR, rockshaft rear LH, 10X12 model, 62.25 inch to be cut from 71.5 inch from part number 603919R1
1шт.
4
BAR, rockshaft front RH, 14X10, 10X14, 8X18
1шт.
4
BAR, rockshaft rear LH & RH, 12X14, 63.00 inch to be cut from 71.5 inch from part number 603919R1
1шт.
4
BAR, rockshaft front LH, 14X12 model, 65.00 inch to be cut from 71.5 inch from part number 603919R1
1шт.
4
BAR, rockshaft front RH, 10X12 model, 67.00 inch to be cut from 71.5 inch from part number 603919R1
1шт.
4
BAR, rockshaft rear LH, 20X8 model
1шт.
4
BAR, rockshaft rear RH, 14X10 model
1шт.
4
BAR, rockshaft rear LH & RH, 16X10
1шт.
4
BAR, rockshaft rear RH, 10X14 model, 68.00 inch to be cut from 71.5 inch from part number 603919R1
1шт.
4
603919R1
BAR
rockshaft front LH, 12X14 model, 71.50 inch
1шт.
4
603164R1
ROCKSHAFT
BAR, rockshaft front LH, 14X10, 16X10
1шт.
4
BAR, rockshaft front, 10X8 model, 10X14, & 8X18, 74.25 inch to be cut from 94.31 inch from part number 603164R1
1шт.
4
BAR, rockshaft front RH, 16X10 model
1шт.
4
BAR, rockshaft front RH, 12X14 & 16X10, 77.00 inch to be cut cut from 94.31 inch from part number 603164R1
1шт.
4
BAR, rockshaft front LH, 20X8 model
1шт.
4
BAR, rockshaft rear RH, 8X18 model, 80.25 inch to be cut from 94.31 inch from part number 603164R1
1шт.
4
BAR, rockshaft rear, 10X8 model, 83.50 inch to be cut from 94.31 inch from part number 603164R1
1шт.
4
BAR, rockshaft front RH, 20X8 & 14X12
1шт.
4
BAR, rockshaft rear LH, 14X12 model, 86.00 inch to be cut from 94.31 inch from part number 603164R1
1шт.
4
BAR, rockshaft rear RH, 20X8 model, 89.38 inch to be cut from 94.31 inch from part number 603164R1
1шт.
4
BAR, rockshaft front & rear, 8X12
1шт.
4
BAR, rockshaft front & rear, 10x10, 92.75 inch to be cut from 94.31 inch from part number 603164R1
1шт.
5
TRUNNION, rockshaft intermediate, cast, for machines built prior to October 1975, Order 1-815086C1, trunnion, 1-23696R1, & 1-22766R1, washer
1шт.
5
815086C1
TRUNNION
rockshaft intermediate, nylon, for machines built Oct 1975 & since, 5 used 10X8, 6 used 10X10, 14X10, 8X12, 10X12, 10X14 & 8X18, 8 used 16X10, 12X14, & 14X12, 10 used 20X8
1шт.
23696R1
WASHER
1.844 x 2.750 X .054 pln, 1 per trunnion
1шт.
22766R1
WASHER
1.406 x 2.250 X .036
1шт.
6
603114R11
TRUNNION
1шт.
TRUNNION ASSY, rockshaft end, cast, Includes 1-102906, screw, 4 used on 10X8, 10X10 and 8X12 machines built prior to March, 1974 season, 2 used after, 8 used on 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 & 8X18 machines built prior to March, 1974 season, 4 used after
1шт.
102906
CAPSCREW
SCREW, 7/16-14 x 7/8 sq-hd cup-pt set, 1 used per trunnion
1шт.
6
815086C1
TRUNNION
rockshaft end, nylon, on machines built March, 1974 season and since, 2 used 10X10 and 8X12, 4 used on 20X8, 14X10 16X10, 10X12, 14X12, 10X14 and 8X18 models
1шт.
23696R1
WASHER
1.844 x 2.750 x .054 pln, 1 per trunnion
1шт.
22766R1
WASHER
1.406 x 2.250 x .036
1шт.
7
603196R1
CHANNEL
trunnion retainer, 20 used 10X8, 10X10 and 8X12, 28 used 14X10, 10X12, 10X14 and 8X18, 32 used 16X10 and 14X12, 36 used on 20X8
1шт.
8
605335R3
APRON
ARM, rockshaft lift, 20 used 10X8, 10X10, 10X12 & 10X14, 16 used 8X12 and 8X18, 28 used 14X10 and 14X12, 32 used 16X10, 40 used on 20X8
1шт.
9
605365R1
CLAMP
lift arm, 1 used per 2 lift arms
1шт.
10
605307R1
BOLT,U, 1/2" - 13 x 2 7/8"
U-BOLT, lift arm, 1 used per clamp
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 2 used per u-bolt 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, , 2 used per u-bolt 1/2"
1шт.
11
NA2540
TRUNNION
lift arm, 1 used per 2 lift arms
1шт.
REF#11 SEE PAGE 50 FOR BAR THAT FITS INTO TRUNNION(ITEM 5) 11/7/96
1шт.
12
605327R2
ARM
rockshaft tie rod, 4 used 10X8, 10X10 & 8X12, 8 used 20X8 14X10, 16X10, 10X12, 14X12, 10X14 & 8X18
1шт.
13
603393R1
CHANNEL
arm clamping, 1 used per 2 rod arms
1шт.
14
603422R1
BOLT,U, 5/8" - 11 x 3 9/16"
U-BOLT, tie rod, 1 used per channel
1шт.
15
605309R1
ROD, rockshaft tie, 1 used 10X8, 10X10 & 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14 & 8X18
1шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), , 2 per rod 1/4" x 1 1/2"
1шт.
16
604095R1
BRACKET, grain drive clutch spring, 1 used 10X8, 10X10 & 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 & 8X18
1шт.
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
5/16-18 x 2 hex-hd, 1 used per bracket
1шт.
120376
NUT,5/16"-18, G5
1 used per bolt 5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, , 1 used per bolt 5/16"
1шт.
Выбрано товаров: 67
