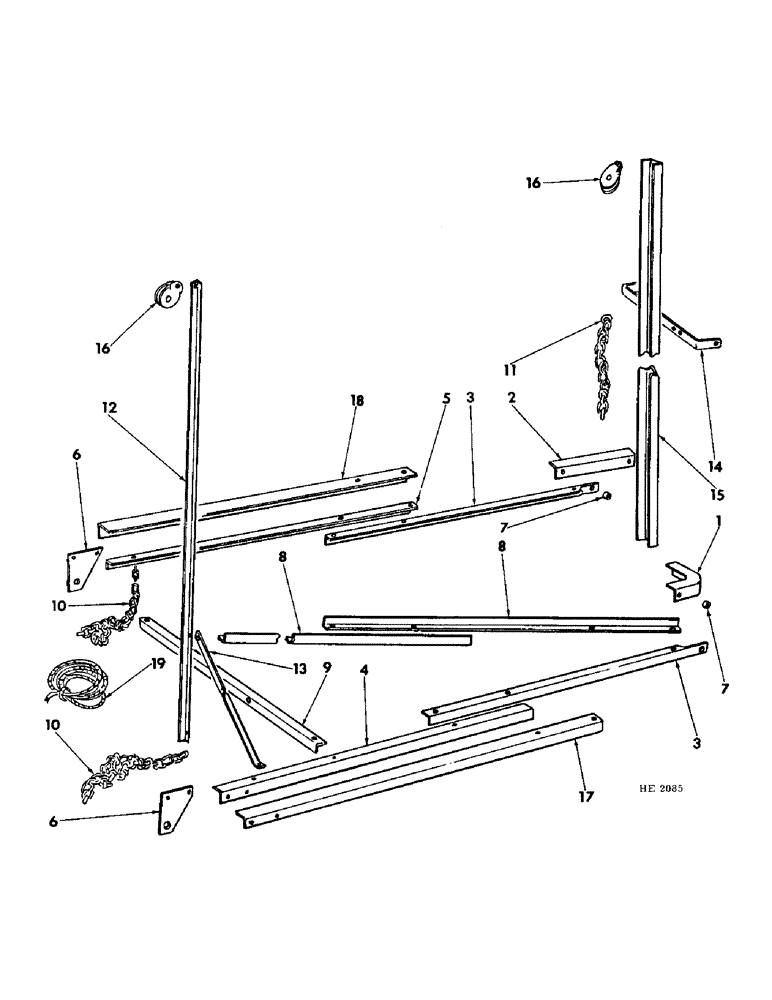

Запчасти Case IH 150 (62) - DISK MARKER EXTENSION FRAME, FOR 20X8, 14X10, 16X10, 10X12, 14X12, 10X14 & 8X18 DRILLS WHEN DUPLEXED

1

592281R1

ANGLE, marker frame mounting front LH

1шт.

1

592282R1

ANGLE, marker frame mounting front RH

1шт.

2

592283R1

ANGLE, marker frame mounting rear LH

1шт.

2

592284R1

ANGLE, marker frame mounting rear RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

592261R1

ANGLE, marker frame front

1шт.

3

592262R1

ANGLE, marker frame rear

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

4шт.

271501

SOCKET

NUT, 7/16-14 hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

4

592263R1

ANGLE, marker frame extension front

1шт.

5

592264R1

ANGLE, marker frame extension rear

1шт.

6

592265R1

BAR, marker mounting

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

Mounting bar pivot 1/2" X-Strng Pipe x 9/16"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

8

592266R1

ANGLE, cross tie

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

9

592267R1

ANGLE, frame tie brace

1шт.

10

592272R91

CHAIN, marker

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8-16 x 2-1/2 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

592273R91

CHAIN (AG)

CHAIN, transport

1шт.

120322R1

PIN, transport chain retaining

1шт.

12

592268R1

ANGLE, rope guide

1шт.

13

592269R1

BRACE, rope guide angle

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

592270R1

SUPPORT, rope pulley support channel

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

592271R1

CHANNEL, rope pulley support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271501

SOCKET

NUT, 7/16-14 hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

16

819043C91

PULLEY

ASSY, rope guide

3шт.

13065R1

PIN, 3/8 x 1 cotter

3шт.

17

592285R1

ANGLE, marker extension front

1шт.

18

592286R1

ANGLE, marker extension rear, Machines prior to 1972 season, Applicable when triplexed

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16-14 x 1 hex-hd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

19

ROPE, 3/8 sisal x 75 foot, Dealer to purchase locally

1шт.
