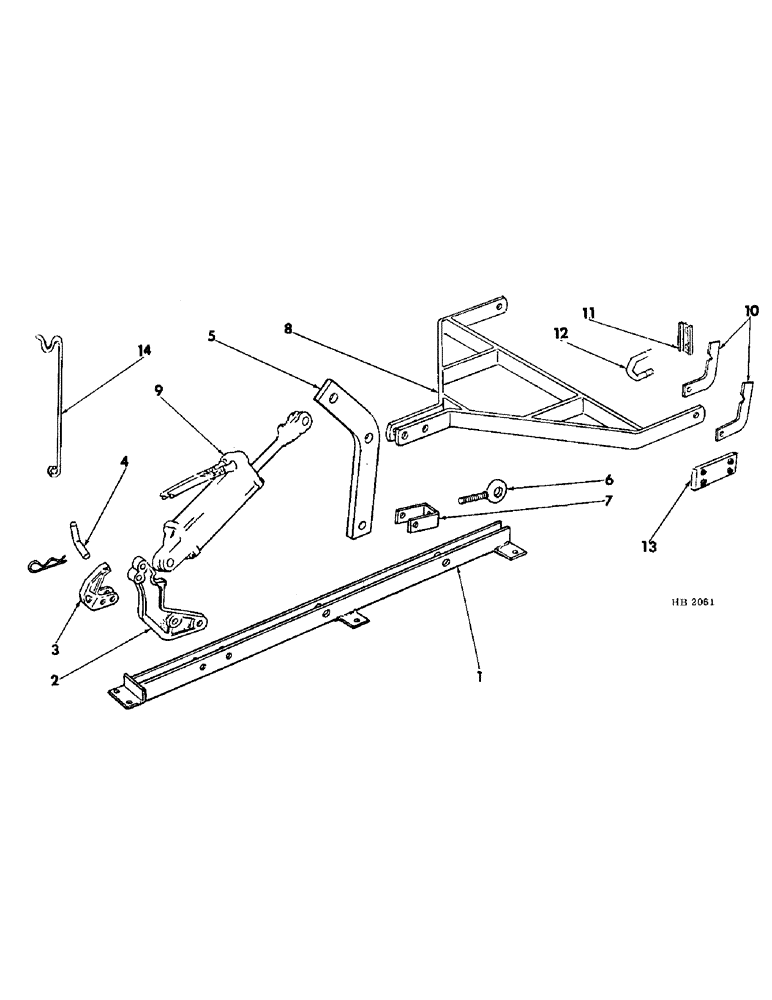

Запчасти Case IH 150 (59) - HYDRAULIC LIFT ADAPTOR PACKAGE, FOR 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 8X18, AND 12X14

1

605428R91

FRAME

ASSY, mounting

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

602951R1

ARM

BRACKET, cylinder mounting

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8-11 x 2-1/2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

3

526263R1

RETAINER

hydraulic cylinder

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

605417R1

ROD, locking

1шт.

599744R1

AXLE PIN

QUICK ATTACHABLE COTTER

1шт.

5

605423R1

ARM, rocker

1шт.

720723R1

PIN, 7/8 x 2-1/4 std-hd-dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

6

602514R1

BOLT, lock channel eye

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

720723R1

PIN, 7/8 x 2-1/4 std-hd-dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

7

605425R1

BRACKET

CHANNEL, rocker arm lock

1шт.

8

605427R91

YOKE ASSY, lift- 14X10, 16X10, 10X14, 12X14 and 8X18 Hillside

1шт.

8

609008R91

YOKE ASSY, lift- 10X12 and 14X12

1шт.

8

606086R91

YOKE ASSY, lift- 20X8

1шт.

551681R1

PIN, 7/8 x 2-1/2 std-hd-dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

9

371291R96

CYLINDER BLOCK

CYLINDER ASSY, hydraulic 2-1/2 x 8 D.A., Opt to use 1-371292R95, For components refer to remote control hyd cyl

1шт.

9

371292R95

CYLINDER

ASSY, hydraulic 3-1/2 x 8 D.A., Opt to use 1-371291R96, For components refer to remote control hyd cyl

1шт.

10

605418R1

ARM

lift

4шт.

5530S

PIN

5/8 x 1-5/8 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

11

603393R1

CHANNEL

lift arm

2шт.

12

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, lift arm

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

605424R1

BAR, rockshaft clamping

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 2-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

14

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.
