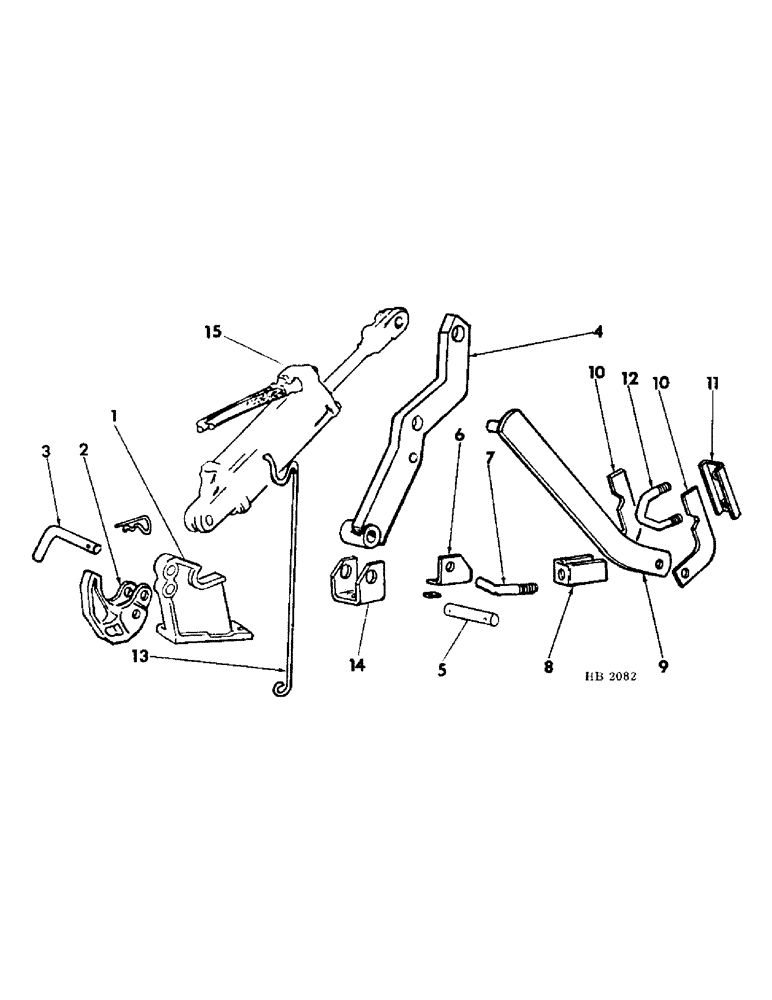

Запчасти Case IH 150 (58) - HYDRAULIC LIFT ADAPTOR PACKAGE FOR 10 X 8, 10 X 10 AND 8 X 12 DRILLS

1

607879R1

BRACKET, cylinder mounting

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

603901R1

WASHER

tapered

3шт.

2

526263R1

RETAINER

hydraulic cylinder

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

600829R2

ROD

locking

1шт.

599744R1

AXLE PIN

QUICK ATTACHABLE COTTER

1шт.

4

604207R11

ARM ASSY, rocker

1шт.

5

598834R1

PIN, rocker arm pivot

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

6

604225R1

ANGLE

locking rod

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

603901R1

WASHER

tapered

2шт.

7

603423R1

LINK

ROD, lock channel connecting

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

125550

NUT, 5/8-11 hex

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

1шт.

8

603426R1

CHANNEL, lock

1шт.

9

607880R11

ARM ASSY, lift connecting

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

10

607881R1

ARM

lift

2шт.

5530S

PIN

5/8 x 1-5/8 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

603393R1

CHANNEL

lift arm

1шт.

12

603422R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, lift arm

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

14

597191R1

CHANNEL

rocker arm

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

603901R1

WASHER

tapered

2шт.

15

371291R96

CYLINDER BLOCK

CYLINDER ASSY, hydraulic 2-1/2 x 8 D.A., Opt to use 1-371292R95 For components refer to remote control hyd cyl

1шт.

15

371292R95

CYLINDER

ASSY, hydraulic 3-1/2 x 8 D.A., Opt to use 1-371291R96, For components refer to remote control hyd cyl

1шт.
