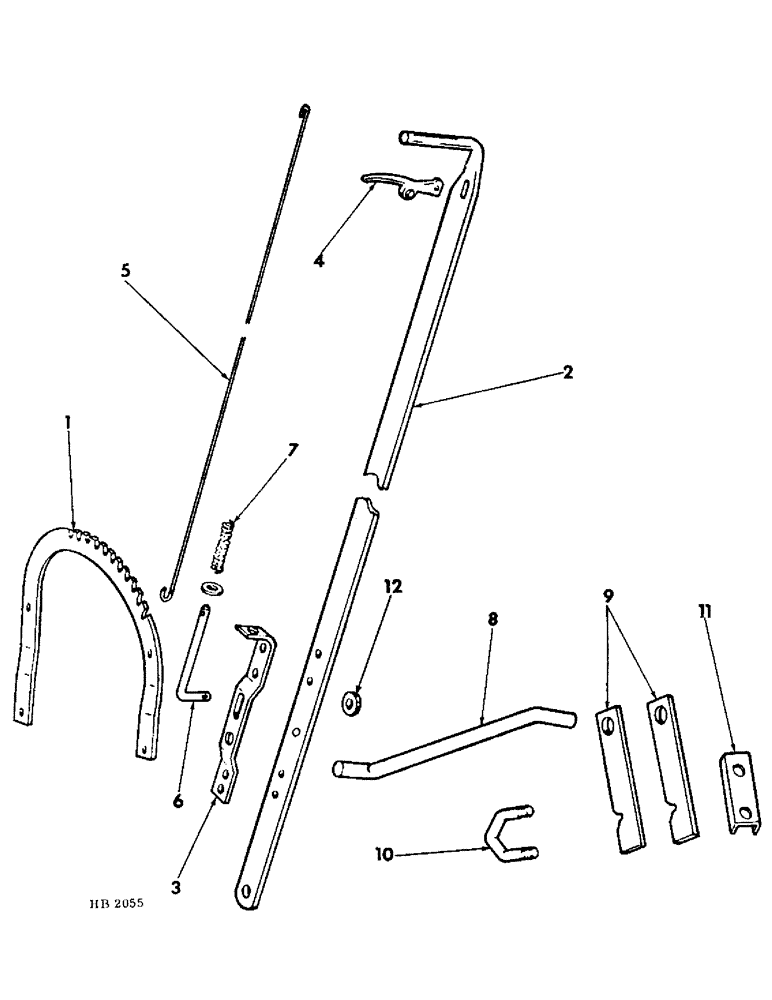

Запчасти Case IH 150 (56) - HAND LIFT

1

600976R1

QUADRANT, hand lift RH

1шт.

1

600977R1

QUADRANT, hand lift LH

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 hex-hd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

600989R11

LEVER ASSY, rockshaft lift, Includes 1-600990R1 guide, 4-106917, rivet

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

3

600990R1

GUIDE, lever detent

2шт.

106917

RIVET, 5/16 x 1-1/8 truss-hd

8шт.

4

PO15296

HANDLE

LATCH, lift lever

2шт.

132-347

COTTER PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

2шт.

5

600959R1

ROD

latch

2шт.

6

M92872

LIFTING ROD

ROD, detent

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

7

2302

SPRING

detent

2шт.

8

600950R1

ROD, lift lever connecting

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

9

605438R1

BAR, lift arm

4шт.

10

603422R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, lift arm bar

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

11

603393R1

CHANNEL

lift arm clamping

1шт.

12

450976R1

BUSHING, lever pivot

2шт.
