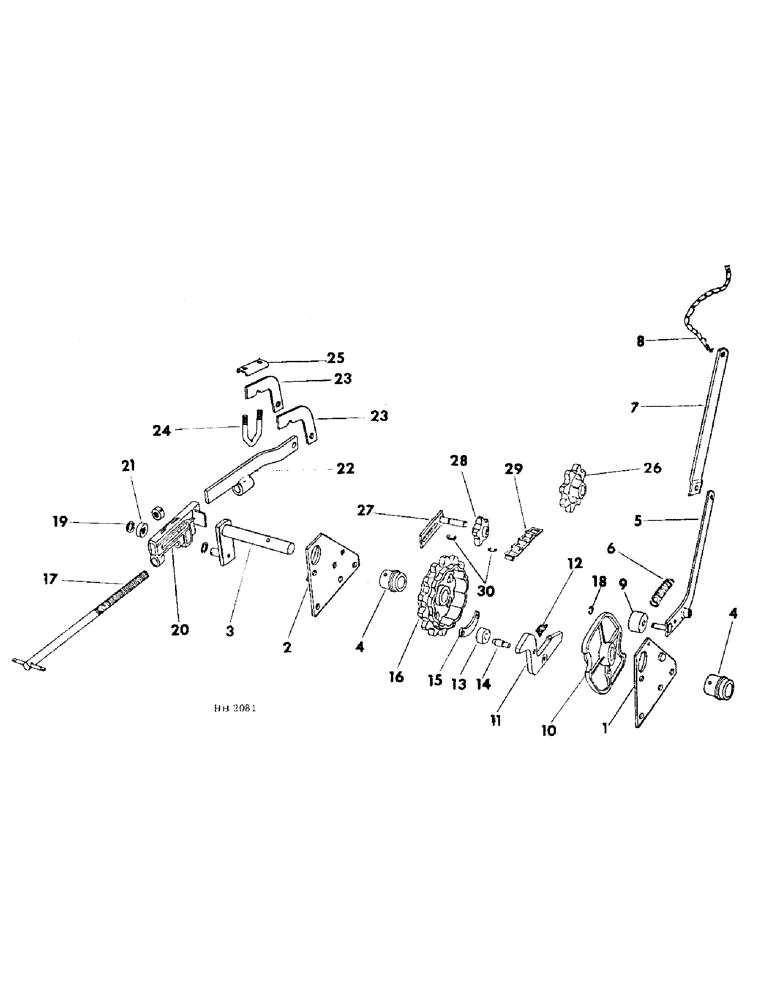

Запчасти Case IH 150 (54) - POWER LIFT UNIT
№
Артикул
Название
Примечание
Количество
1
BRACKET ASSY, trip lever LH unit, On machines built prior to the 1966 season order 1-592770R1, bearing and 1-592783R91, bracket
1шт.
1
BRACKET ASSY, trip lever RH unit, On machines built prior to the 1966 season order 1-592770R1, bearing and 1-592784R91, bracket
1шт.
1
592783R91
BRACKET ASSY, trip lever LH unit, On machines built 1966 season and since
1шт.
1
592784R91
BRACKET ASSY, trip lever RH unit, On machines built 1966 season and since
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex-hd
6шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
2
BRACKET ASSY, depth regulator LH unit, On machines built prior to the 1966 season order 1-592770R1, bearing and 1-592786R91, bracket
1шт.
2
BRACKET ASSY, depth regulator RH unit, On machines built prior to the 1966 season order 1-592770R1, bearing and 1-592787R91, bracket
1шт.
2
592786R91
BRACKET ASSY, depth regulator LH unit, On machines built 1966 season and since
1шт.
2
592787R91
BRACKET ASSY, depth regulator RH unit, On machines built 1966 season and since
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex-hd
6шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
3
CRANK ASSY, lift LH unit, On machines built prior to the 1964 season, Order 1-19972R1, pin, 1-608421R1, carrier and 1-608419R92 crank
1шт.
3
CRANK ASSY, lift RH unit, On machines built prior to the 1964 season, Order 1-19972R1, pin, 1-608420R1, carrier and 1-608418R92 crank
1шт.
3
608419R92
CRANK ASSY, lift LH unit, On machines built 1964 season and since
1шт.
3
608418R92
CRANK
ASSY, lift RH unit, On machines built 1964 season and since
1шт.
178375R1
WASHER
25/32 x 1-1/4 x 16 ga
1шт.
22050R1
WASHER
1.281 x 1.750 x .054
1шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
432-1628
COTTER PIN,1/4" x 1 3/4"
Pin, Split (Cotter), 1/4" x 1 3/4"
1шт.
4
603376R1
BEARING, crankshaft, For use on machines built 1959 season to 1960 season
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
4
605977R1
BEARING, crankshaft, For use on machines built 1960 season to June, 1966 season
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
4
592770R1
CRANKSHAFT BEARING,1.257" ID x 2.12" OD x 2.06"
BEARING, crankshaft, For use on machines built June, 1966 season and since
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
5
603413R91
LEVER ASSY, trip LH unit
1шт.
5
603412R91
LEVER ASSY, trip RH unit
1шт.
178375R1
WASHER
.781 x 1.250 x .054
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
6
98457H
SPRING
trip lever
1шт.
103418
SWITCH,1/4" x 1"
Split (Cotter), 1/4" x 1"
1шт.
178373R1
WASHER
.531 x 1.000 x .054
1шт.
7
604526R1
ARM
LINK, trip lever
1шт.
Q3428
PIN
7/16 x 7/8 std-hd-dld
1шт.
21763R1
WASHER
.469 x .750 x .105
1шт.
108632
PIN
3/16 x 7/8 cotter
1шт.
8
ROPE, 5/16 x 15 foot trip, Dealer to purchase locally
1шт.
9
603378R2
ROLLER
trip stop
1шт.
10
CARRIER, trip dog LH unit, On machines built prior to the 1964 season, Order 1-19972R1, pin, 1-608421R1, carrier and 1-608418R92 crank
1шт.
10
CARRIER, trip dog RH unit, On machines built prior to the 1964 season, Order 1-19972R1, pin, 1-608420R1, carrier and 1-608419R92 crank
1шт.
10
608421R1
CARRIER
trip dog LH unit, On machines built 1964 season and since
1шт.
10
608420R1
CARRIER
trip dog RH unit, On machines built 1964 season and since
1шт.
19972R1
PIN,11.1mm OD x 11.1mm L, Coiled
7/16 x 2-1/2 coiled spring
1шт.
11
603381R1
PAWL
DOG, trip RH unit
1шт.
11
603382R1
PAWL
DOG, trip LH unit
1шт.
12
37AC
SPRING
trip dog
1шт.
13
F13685
PAWL
ROLLER, trip dog
1шт.
14
F15206
TRUNNION
STUD, trip dog roller
1шт.
15
603397R1
LINK
trip dog carrier
1шт.
LC175
PIN
1/2 x 2-1/2 std-hd-dld
1шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
16
603377R2
DRIVE SPROCKET
SPROCKET, clutch 14T
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
17
605988R91
SCREW
ASSY, adjusting
1шт.
427637
SLOTTED NUT,3/4"-10, G5
NUT, 3/4-10 hex-sltd
1шт.
455182R1
LOCK PIN,3/16" x 1 1/8", Slotted
Pin, 3/16" x 1 1/8", Slotted
1шт.
178375R1
WASHER
.781 x 1.250 x .054
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
18
370290R1
SNAP RING,#50, .392" Dia, E-Type
Ring, Retaining, , trip roller #50, .392" Dia, E-Type
1шт.
19
607895R1
WASHER
.531 x 1.000 x .105
1шт.
20
603380R1
SLIDE VALVE
SLIDE, adjustable LH unit
1шт.
20
603379R1
SLIDE, adjustable RH unit
1шт.
21
601298R1
ROLLER
connecting link
1шт.
22
603409R91
LINK ASSY, connecting LH unit
1шт.
22
603408R91
LINK ASSY, connecting RH unit
1шт.
23
605403R1
ARM, rockshaft lift
2шт.
5530S
PIN
5/8 x 1-5/8 std-hd-dld
1шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
24
603392R1
BOLT,U, 5/8" - 11 x 3 9/16"
U-BOLT, rockshaft lift arm
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
25
603393R1
CHANNEL
u-bolt clamping
1шт.
26
603374R1
SPROCKET ASSY.
SPROCKET, power lift drive 8T
1шт.
124553
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
432-1240
COTTER PIN,3/16" x 2 1/2"
Pin, Split (Cotter), 3/16" x 2 1/2"
1шт.
27
603396R11
BRACKET
ASSY, chain tightener
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8-16 x 1 carriage
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
28
603375R1
DRIVE SPROCKET
SPROCKET, chain tightener 5T
1шт.
219-28
LUBE NIPPLE,5/16" - 32
FITTING, 5/16-32 str lub
1шт.
29
CHAIN, power lift drive, For service order 1-CS55 10 foot roll of steel chain and reduce to 33 links
1шт.
30
373523R1
SNAP RING,#62, .480" Dia, E-Type
Ring, Retaining, , sprocket #62, .480" Dia, E-Type
2шт.
619856R1
WASHER
.406 x 1.000 x .054
2шт.
Выбрано товаров: 88
