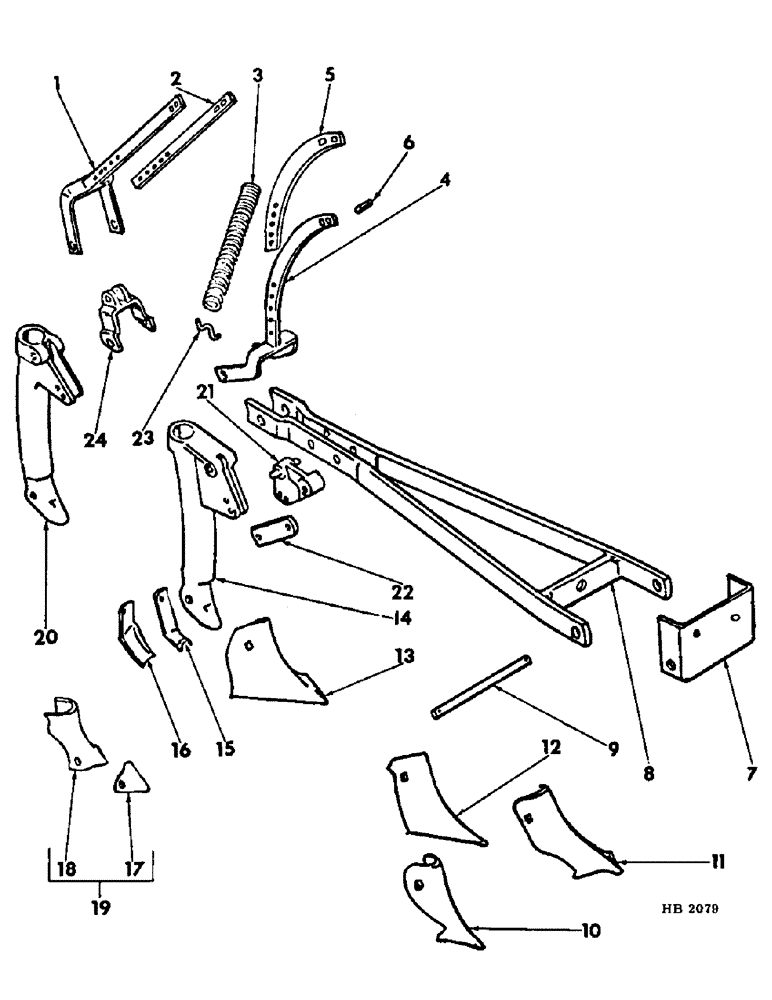

Запчасти Case IH 150 (50) - SHEAR TRIP FURROW OPENER, ON MACHINES BUILT PRIOR TO 1973 SEASON

1

606219R11

ROD

ASSY, pressure rear w/welded yoke, For use on machines built prior to 1962 season

1шт.

606212R1

PIN, 9/16 x 4 std-hd-dld

1шт.

108632

PIN

3/16 x 7/8 cotter

1шт.

2

606792R1

BAR

ROD, pressure rear, For use on machines built 1962 season and since, Serial Range: Refer-note

1шт.

N32202

PIN, 3/8 x 1-7/16 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

6639

SPRING

pressure

1шт.

4

606218R11

ROD

ASSY, pressure front w/welded yoke, For use on machines built prior to 1962 season

1шт.

606212R1

PIN, 9/16 x 4 std-hd-dld

1шт.

108632

PIN

3/16 x 7/8 cotter

1шт.

5

606791R1

SUPPORT

ROD, pressure front, For use on machine built 1962 season to 1975 season, Serial Range: Refer-note

1шт.

N32202

PIN, /38 x 1-7/16 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

605964R1

CLIP

spring rod

1шт.

7

605336R1

BRACKET

drawbar pivot, One required per furrow opener

1шт.

NLS

NO LONGER SERVICED

3/8X1 small b-hd, 2 per bracket, Not for use on 8X18 machine

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 8X18

2шт.

120377

NUT,3/8" - 16, Gr 5

8X18 3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 8X18 3/8"

2шт.

8

602655R91

DRAWBAR, furrow opener

1шт.

9

605441R1

PIN

drawbar pivot

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

10

602449R1

SHOVEL

3 inch polished share iron, Not for 8X18 Hillside

1шт.

20267R1

BOLT,#7, 3/8" - 16 x 3/4"

3/8-16 x 3/4 no. 7 plow

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

11

603052R1

SHOVEL

3 inch polished steel, Not for 8X18 Hillside

1шт.

20256R1

CARRIAGE BOLT,#3, 3/8" - 16 x 3/4", Gr 2

BOLT, 3/8-16 x 3/4 no. 3 plow

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

11

603053R1

SHOVEL

3 inch tumbled steel, not 8X18

1шт.

20256R1

CARRIAGE BOLT,#3, 3/8" - 16 x 3/4", Gr 2

BOLT, 3/8-16 x 3/4 no. 3 plow

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

12

602656R2

SHOVEL

5 inch tumbled steel, Not for 8X18 Hillside

1шт.

20256R1

CARRIAGE BOLT,#3, 3/8" - 16 x 3/4", Gr 2

BOLT, 3/8-16 x 3/4 no. 3 plow

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

12

602658R2

SHOVEL, 5 inch polished steel, Not for 8X18 Hillside

1шт.

20256R1

CARRIAGE BOLT,#3, 3/8" - 16 x 3/4", Gr 2

BOLT, 3/8-16 x 3/4 no. 3 plow

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

13

602450R1

SHOVEL, 6 inch polished steel, Not for 8X18 Hillside

1шт.

20256R1

CARRIAGE BOLT,#3, 3/8" - 16 x 3/4", Gr 2

BOLT, 3/8-16 x 3/4 no. 3 plow

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

13

602657R1

SHOVEL

6 inch tumbled steel, Not for 8X18 Hillside

1шт.

20256R1

CARRIAGE BOLT,#3, 3/8" - 16 x 3/4", Gr 2

BOLT, 3/8-16 x 3/4 no. 3 plow

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

14

605439R2

BOOT

furrow opener front

1шт.

PO12096

PIN, 9/16 x 3-3/8 std-hd-dld

1шт.

108632

PIN

3/16 x 7/8 cotter

1шт.

15

602445R1

DEFLECTOR

5 inch shovel grain, Not for 8X18 Hillside

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

602446R2

DEFLECTOR

3 inch shovel grain, Not for 8X18 Hillside

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

592809R3

POINT

Eagle beak w/hard facing

1шт.

17

816565C1

POINT

Eagle beak w/o hard facing

1шт.

17

606360R1

POINT

1-3/4 inch tumbled, Not for 8X18 Hillside

1шт.

133781

SCREW,Sl Flat Hd, 1/4" - 20 x 1 1/4"

1/4-20 x 1-1/4 sltd-ft-hd

1шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

1/4-20 sq

1шт.

18

606361R1

ADAPTER

ADAPTOR, boot

1шт.

19

594170R91

ADAPTER

ADAPTOR ASSY, boot w/point, Not for 8X18 Hillside, For use with furrow openers when equipped w/605439R2, boot or 605440R1, boot Consists of:

1шт.

606361R1

ADAPTER

ADAPTOR

1шт.

606360R1

POINT

1шт.

133781

SCREW,Sl Flat Hd, 1/4" - 20 x 1 1/4"

1шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

1шт.

20267R1

BOLT,#7, 3/8" - 16 x 3/4"

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

592810R93

ADAPTER

ADAPTOR ASSY, boot w/Eagle beak point, For use with furrow openers when equipped w/605439R2, boot or 605440R1, boot, regular 8X18, Consists of:

1шт.

606361R1

ADAPTER

ADAPTOR

1шт.

592809R3

POINT

1шт.

133781

SCREW,Sl Flat Hd, 1/4" - 20 x 1 1/4"

1шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

1шт.

20267R1

BOLT,#7, 3/8" - 16 x 3/4"

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

20

605440R1

BOOT

rear furrow opener

1шт.

10615P

PIN

9/16 x 4-1/8 std-hd-dld

1шт.

108632

PIN

3/16 x 7/8 cotter

1шт.

21

602442R3

BLOCK

shear trip drawbar adjusting

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

602437R1

BAR

LINK, shear trip

1шт.

W4435

PIN

3/8 x 1-3/8 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

23

F6366

LOCK

pressure spring

1шт.

24

606793R1

YOKE

pressure rod, For use on machines built 1962 season and since

1шт.

10615P

PIN

9/16 x 4-1/8 std-hd-dld

1шт.

551175R1

WASHER

19/32 x 1-1/2 x 16 ga

1шт.

108632

PIN

3/16 x 7/8 cotter

1шт.
