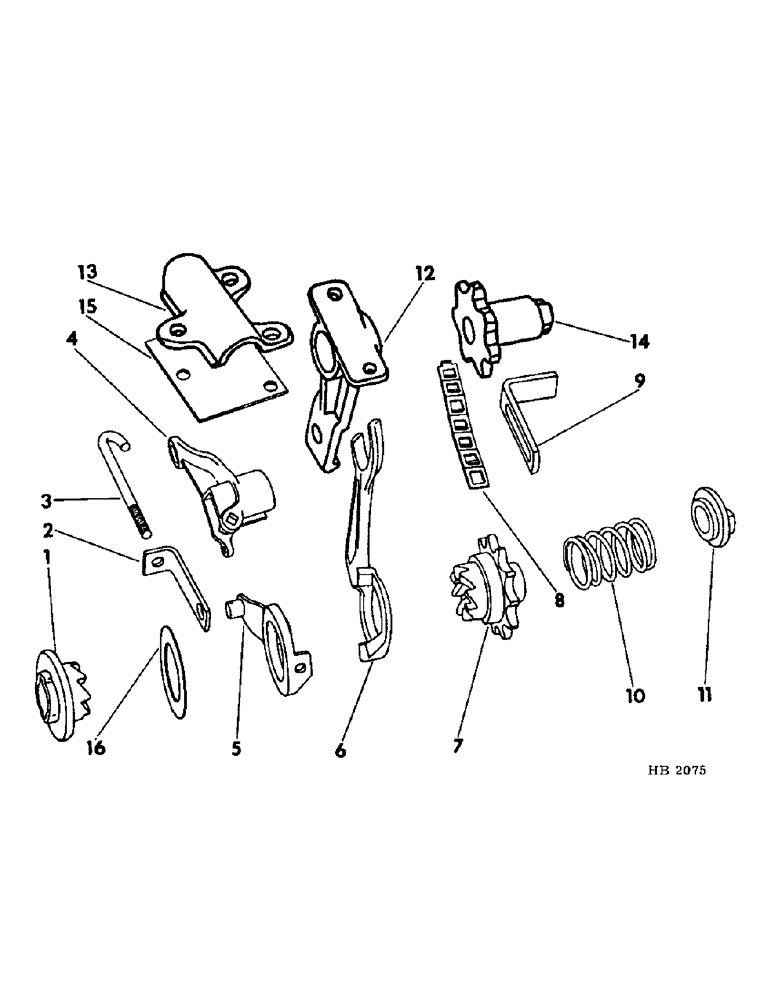

Запчасти Case IH 150 (45) - GRASS HOPPER DRIVE UNIT FOR 20 X 8 MACHINES

1

603116R1

COLLAR CLAMP

COLLAR, drive clutch

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

2

603181R1

SUPPORT

EXTENSION, clutch

2шт.

3

603151R1

ROD

clutch throwout

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

603132R1

ARMATURE

ARM, clutch shifter rod

2шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16-18 x 2-1/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

603133R1

CAM

drive clutch throwout

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-65 deg lub

2шт.

608701R1

WASHER

.656 x 1.250 x .056

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

6

603131R1

PLATE ASSY.

PLATE, drive clutch

2шт.

7

604268R1

SPROCKET ASSY.

SPROCKET, drive clutch 11T

2шт.

8

CHAIN, grass seed drive, For service order 1-CS25, 10 ft roll of no 25 steel chain and reduce to 60 links

2шт.

9

601791R1

SUPPORT

TIGHTENER, drive chain

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

35AC

SPRING

drive clutch

2шт.

11

603117R1

COLLAR CLAMP

COLLAR, clutch spring

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

12

N1474

BRACKET

HANGER, driven sprocket

2шт.

133046

GUARD

SCREW, 1/4-20 x 7/8 sltd-rd-hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

N1470

COVER

driven sprocket

2шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 sltd-rd-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

NA1475

DRIVE SPROCKET

SPROCKET, driven

2шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

2шт.

15

609401R1

BAR, sprocket cover

4шт.

120273

SCREW, 1/4-20 x 7/16 sltd-rd-hd

12шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

16

603265R1

WASHER

2.000 x 3.125 x .074

2шт.
