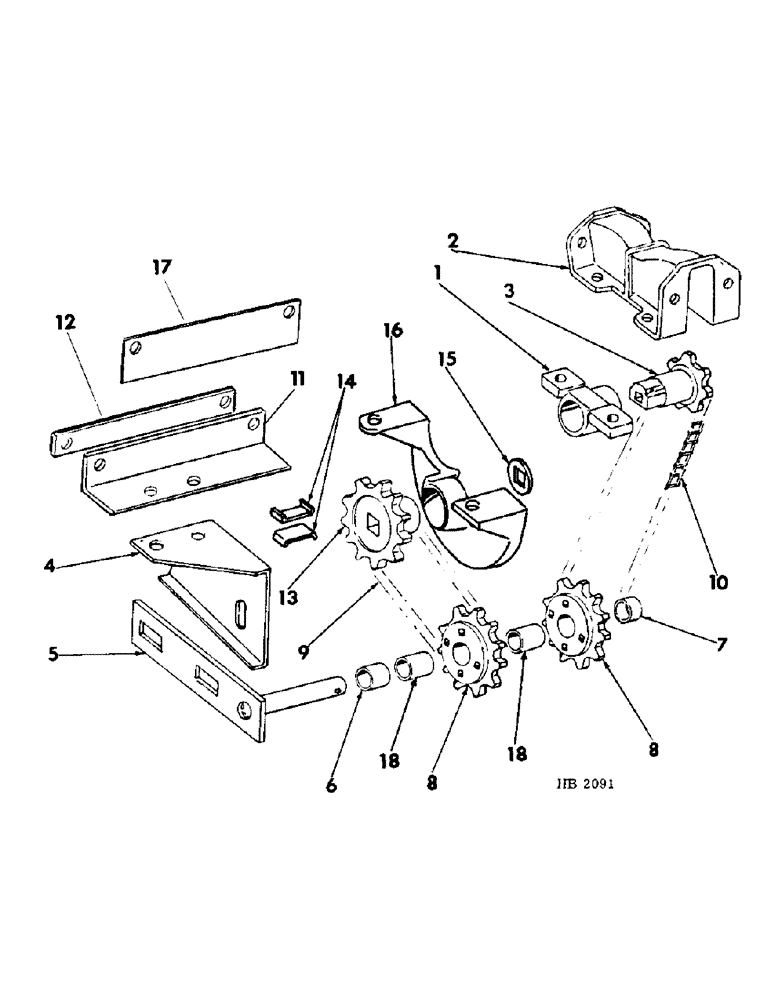

Запчасти Case IH 150 (44) - GRASS HOPPER DRIVE UNIT FOR 16 X 10 MACHINES

1

816533C1

BRACKET

BEARING, sprocket

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

816532C1

GUARD

DRIVE CHAIN

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

NA1475

DRIVE SPROCKET

SPROCKET, driven

2шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

2шт.

4

815638C1

BRACKET

SUPPORT, chain tightener

2шт.

5

816340C2

BRACKET

ASSY, drive tightener

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

6

PO15237

SPACER

sprocket inner

2шт.

7

590750R1

SPACER

sprocket outer

2шт.

8

819949C1

DRIVE SPROCKET

SPROCKET, chain tightener

4шт.

598800R1

BOLT,Short NK, 1/4"-20 x 2", G5

1/4-20 x 2 carriage

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

CHAIN, grass drive, For service order 1-CS25, 10 ft roll of no 25 steel chain and reduce to 26 links

2шт.

10

CHAIN, grass driven, For service order 1-CS25, 10 ft roll of no 25 steel chain and reduce to 43 links

2шт.

11

819150C1

ANGLE

chain tightener bracket support

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

819151C1

BAR, bracket support angle

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

815324C1

DRIVE SPROCKET

SPROCKET, seed drive 10T

2шт.

14

815803C1

CLIP

sprocket retaining

4шт.

15

N11791

WASHER

drive sprocket

2шт.

16

815499C2

HANGER

drive sprocket

2шт.

17

819148C1

BAR, land measure hold filler

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

298025R1

BUSHING,15.93mm ID x 19.13mm OD x 19.05mm L

sprocket, Use prior to 1978 season

1шт.
