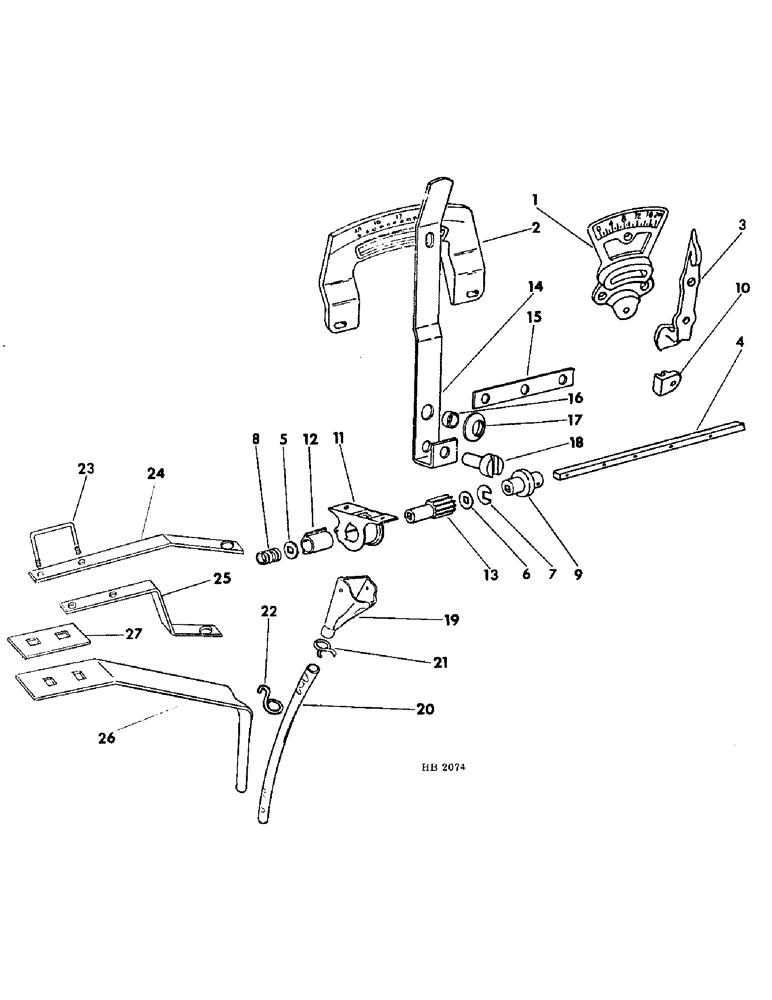

Запчасти Case IH 150 (42) - GRASS SEED FEED SHAFT FOR USE ON 16 X 10 AND 20 X 8 MACHINES

1

603698R1

SECTOR

PLATE, indicator 20X8

2шт.

123854

SCREW, 10-24 x 1/2 sltd-fl-hd

6шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

2

815627C1

INDICATOR

grass box feed 16X10

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

N1468

INDICATOR

LEVER, indicator 20X8

2шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 carriage

2шт.

86627130

WING NUT,1/4"-20

NUT, 1/4-20 wing

2шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 rd-hd

2шт.

4

621257R1

BAR, feed shaft 20X8

2шт.

4

815626C1

DRIVE SHAFT

BAR, feed shaft 16X10

2шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), , 32-16X10, 40-20X8 1/8" x 1/2"

1шт.

5

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

.344 sq-hole x .750 x .054 shut-off block, 20 20X8, 16 16X10

1шт.

6

23051R1

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

.344 sq-hole x .750 x .016 feed cup roll, 60 used 20X8 and 6 used 16X10

1шт.

7

N32109

WASHER

feed flushing

4шт.

8

N32176

SPRING

feed roll, 20 used 20X8, 16 used 16X10

1шт.

9

819227C1

SLEEVE

BUSHING, feed shaft, 20X8

2шт.

104056

RIVET

1/8 x 7/8 rd-hd

2шт.

10

F902

BLOCK

indicator pivot 20X8

2шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 rd-hd

2шт.

11

600924R92

CUP ASSY.

CUP ASSY, grass seed, includes 1-600923R2, thimble, 1-601463R1 roll and 1-615750R92, cup assy, 20 used 20X8 and 16 used 16X10

1шт.

11

615750R92

SUPPORT ASSY.

CUP ASSY, grass seed feed, 20 used 20X8 and 16 used 16X10

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd, 2 used per feed cup

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per screw 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per screw 1/4"

1шт.

12

600923R2

BLOCK

THIMBLE, feed cup shut-off, 1 per feed cup

1шт.

13

601463R1

FINGER ASSY.

ROLL, feed cup grass feed, 1 per feed cup

1шт.

14

815628C1

LEVER

shifter 16X10

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

142745

NUT, WING

NUT, 5/16-18 wing

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

178372R1

WASHER

.406 x 1.250 x .054

2шт.

15

815629C1

BAR

reinforcing 16X10

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

819227C1

SLEEVE

BUSHING, feed shifter lever 16X10

2шт.

104056

RIVET

1/8 x 7/8 rd-hd

2шт.

17

151401C1

BELLEVILLE WASHER

WASHER, Belleville 16X10

2шт.

2551F

WASHER

lever pivot 16X10

2шт.

18

815630C1

PIN,25.4mm OD x 42.16mm L

feed shifter 16X10

2шт.

19

603817R1

TUBE

TOP, grass seed tube, 16 used 16X10, 20 used 20X8

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , 1 per tube 1/8" x 1 3/4"

1шт.

20

609398R1

TUBE

band seed 20X8

20шт.

20

819154C1

TUBE, seed 16X10

16шт.

21

603699R2

CLAMP

tube upper, 1 used per tube

1шт.

22

603882R1

HOOK

tube support lower, 1 per tube

1шт.

23

604423R1

U-BOLT, tube to footboard support, 20 used on 20X8, machines prior to 1975 season

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

40шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

40шт.

24

609399R1

SUPPORT, tube inner 20X8, machines prior to 1975 season

20шт.

25

609400R1

SUPPORT, tube outer 20X8, machines prior to 1975 season

20шт.

26

815689C1

HOLDER

band seed tube 20-20X8

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg, 2 per holder

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

27

815690C1

PLATE

BAR, holder mtg 20-20X8

1шт.
