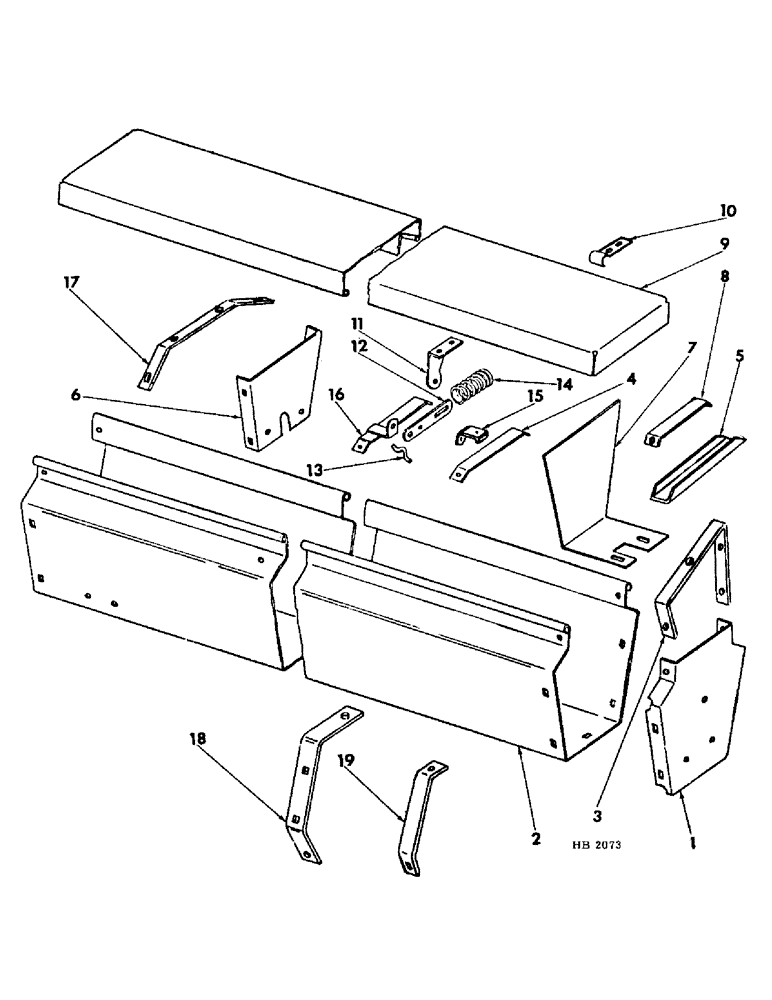

Запчасти Case IH 150 (40) - GRASS SEED HOPPER UNIT FOR USE ON 16 X 10 AND 20 X 8 MACHINES

1

N11709

HEAD, hopper LH 20X8

2шт.

1

N11710

HEAD, hopper RH 20X8

2шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

10-24 x 3/8 sltd-rd-hd

24шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 sltd-rd-hd

8шт.

120361

NUT,Hex Mach Screw, #10 - 24

24шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

1

819060C1

END

hopper, 16X10

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd

4шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 crg

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

2

609395R1

HOPPER

grass seed, 20X8

2шт.

2

815595C1

HOPPER

grass seed, 16X10

1шт.

3

N32055

BRACE, hopper centre, 20X8

2шт.

4

603701R1

BRACE, hopper at cover spring, 20X8

4шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

10-24X 3/8 sltd-hd, 2 per brace

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1 per screw #10-24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, , 1 per screw #10

1шт.

5

N32063

GUTTER, hopper water, 20X8

2шт.

6

815597C1

PLATE

BAFFLE, hopper, 16X10

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 carriage

8шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

8шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

7

815598C1

BAFFLE

grass seed, 16X10

5шт.

8

815599C1

BRACKET

BRACE, hopper, 16X10

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

9

609396R1

COVER, hopper LH 20X8

2шт.

9

609397R1

COVER

hopper RH 20X8

2шт.

9

815604C1

COVER

ASSY, hopper 16X10

1шт.

10

N32057

HINGE, hopper cover 20X8

12шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

10-24 x 3/8 sltd-rd-hd

16шт.

120361

NUT,Hex Mach Screw, #10 - 24

16шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

16шт.

10

815618C1

CLAMP

cover hinge 16X10

7шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

N32150

BRACKET, cover spring LH 20X8

2шт.

11

N32056

BRACKET, cover spring RH 20X8

2шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 sltd-rh-hd

8шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

11

815615C1

SUPPORT

BRACKET, cover spring 16X10

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 sltd-pan-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

N32052

BAR

plunger lid spring 1-16X10, 4-20X8

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 rd-hd, 1 per bar

1шт.

23039R1

WASHER

.203 x .875 x .042, 1 per rivet

1шт.

13

N32114

LINCH PIN

SADDLE, cover spring plunger 1-16X10 & 4-20X8

1шт.

14

6628

SPRING

cover plunger 1-16X10, 4-20X8

1шт.

15

N32151

BRACKET, plunger pivot 20X8

4шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 rd-hd

4шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 sltd-rh-hd

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

1 per screw #10-24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, , 1 per screw #10

1шт.

16

815616C1

BRACKET

ASSY, cover 16X10

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x .042

1шт.

17

609402R1

SUPPORT, hopper 20X8

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

8шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

18

819149C1

SUPPORT, hopper outer 16X10

6шт.

19

819147C1

SUPPORT, hopper reinforcing 16X10

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

134238R1

WASHER

.344 x 1.000 x .054

6шт.
