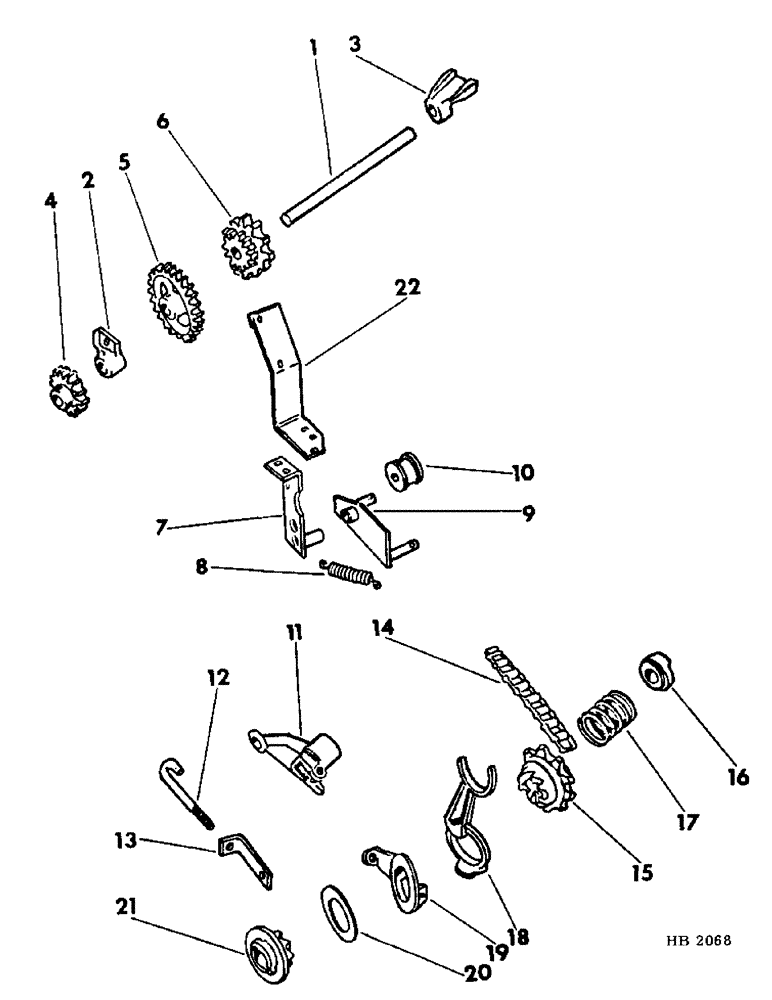

Запчасти Case IH 150 (38) - FERTILIZER DRIVE UNIT

1

605457R1

SHAFT

JACKSHAFT, fertilizer 9-9/16 inch long, 1 used 14X10, 2 used 16X10

1шт.

1

608967R1

JACKSHAFT, fertilizer LH, 1 used 10X12 and 14X12

1шт.

1

608458R1

JACKSHAFT, fertilizer 12-3/16 inch long, 1 used 10X10 and 14X10

1шт.

1

608968R1

JACKSHAFT, fertilizer RH, 1 used 8X12, 10X12 and 14X12

1шт.

1

606090R1

SHAFT

JACKSHAFT, fertilizer, 1 used 10X8 and 2 used 20X8

1шт.

1

605459R1

JACKSHAFT, fertilizer 16-3/8 inch long, 10X14, 12X14 and 8X18 Hillside

1шт.

1

605460R1

JACKSHAFT, fertilizer 13-5/16 inch long, 10X14, 12X14 and 8X18 Hillside

1шт.

21753R1

WASHER

.781 x 1.500 x .054

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), , 3 per jackshaft 3/16" x 1 1/4"

1шт.

2

603468R1

BRACKET

BEARING, fertilizer jackshaft, 1 used 8X12, 2 used 10X8, 10X10 and 16X10, 3 used 14X10, 10X12, 14X12, 10X14, 12X14 and 8X18, 4 used 20X8

1шт.

3

604131R1

BEARING ASSY

fertilizer jackshaft, 1 used 8X12, 10X14, 10X12, 14X10 14X12, 12X14 and 8X18, and 2 used 16X10

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 - 90 deg lub, 1 used per jackshaft brg

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8-16 x 1-1/4 no 3 plow, 1 used per jackshaft bearing

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

4

603464R1

GEAR

14T fertilizer drive, 1 used per jackshaft

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1 used per drive gear 1/4" x 1 1/4", Slotted

1шт.

5

603460R1

GEAR

jackshaft spur 24T, 1 used per jackshaft

1шт.

U5348

PIN

1/4 x 1-1/2 std-hd-dld, 1 used per gear

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per pin 1/8" x 3/4"

1шт.

6

603467R1

SPROCKET ASSY.

SPROCKET, jackshaft driven 10T and 12T, 1 used per jackshaft

1шт.

U5348

PIN

1/4 x 1-1/2 std-hd-dld, 1 used per sprocket

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per pin 1/8" x 3/4"

1шт.

7

605508R91

BRACKET ASSY, chain tightener, 1 used per chain

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 1 per bracket

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage, 2 used per bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

178374R1

WASHER

.531 x 1.250 x .054, 2 used per bracket

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 per bracket 1/8" x 1"

1шт.

8

4A

SPRING

drive chain tightener, 1 used per chain

1шт.

132-347

COTTER PIN,1/4" x 1"

Split (Cotter), , 1 per spring 1/4" x 1"

1шт.

9

605507R91

ARM ASSY, chain tightener, 1 used per chain

1шт.

178374R1

WASHER

.531 x 1.250 x .054, 4 used per tightener arm

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 2 per arm 1/8" x 1"

1шт.

10

3240A

ROLLER

SPACER, chain tightener roller, 2 used per chain

1шт.

22042R1

WASHER

.531 x 2.000 x .105, 4 used per tightener arm on machines prior to November 1976

1шт.

11

603132R1

ARMATURE

ARM, drive clutch shifter rod- 1 used 10X8, 10X10 and 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16-18 x 2-1/4 crg, 1 per arm

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

12

603151R1

ROD

drive clutch shifter, 1 used per clutch arm

1шт.

120377

NUT,3/8" - 16, Gr 5

2 used per rod 3/8"-16, G5

1шт.

13

603181R1

SUPPORT

drive clutch shifter rod, 1 used per shifter rod

1шт.

14

CHAIN ASSY, fertilizer drive, 1 used 10X8, 10X10 and 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18, For service order 1-CS32, 10 ft length of no 32 steel chain and reduce to 57 links

1шт.

15

603115R1

DRIVE SPROCKET

SPROCKET, fertilizer drive 8T, 1 used 10X8, 10X10 & 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18

1шт.

16

603117R1

COLLAR CLAMP

COLLAR, clutch spring, 1 used per fertilizer sprocket

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1 per collar 1/4" x 1 1/4", Slotted

1шт.

17

35AC

SPRING

drive clutch, 1 used per fertilizer sprocket

1шт.

18

603131R1

PLATE ASSY.

PLATE, clutch cam, 1 used per fertilizer sprocket

1шт.

19

603133R1

CAM

clutch throwout, 1 used per plate

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-65 deg lub, 1 per cam

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga, 1 used per cam

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 per cam 1/8" x 1"

1шт.

20

603265R1

WASHER

2 x 3-1/8 x 14 ga clutch, 1 per cam

1шт.

21

603116R1

COLLAR CLAMP

COLLAR, fertilizer clutch 8T, 1 used per fertilizer sprocket

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1 per collar 1/4" x 1 1/4", Slotted

1шт.

22

604193R1

REINFORCEMENT

SUPPORT, chain tightener, 1 used per chain

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 per support

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.
